Burkert

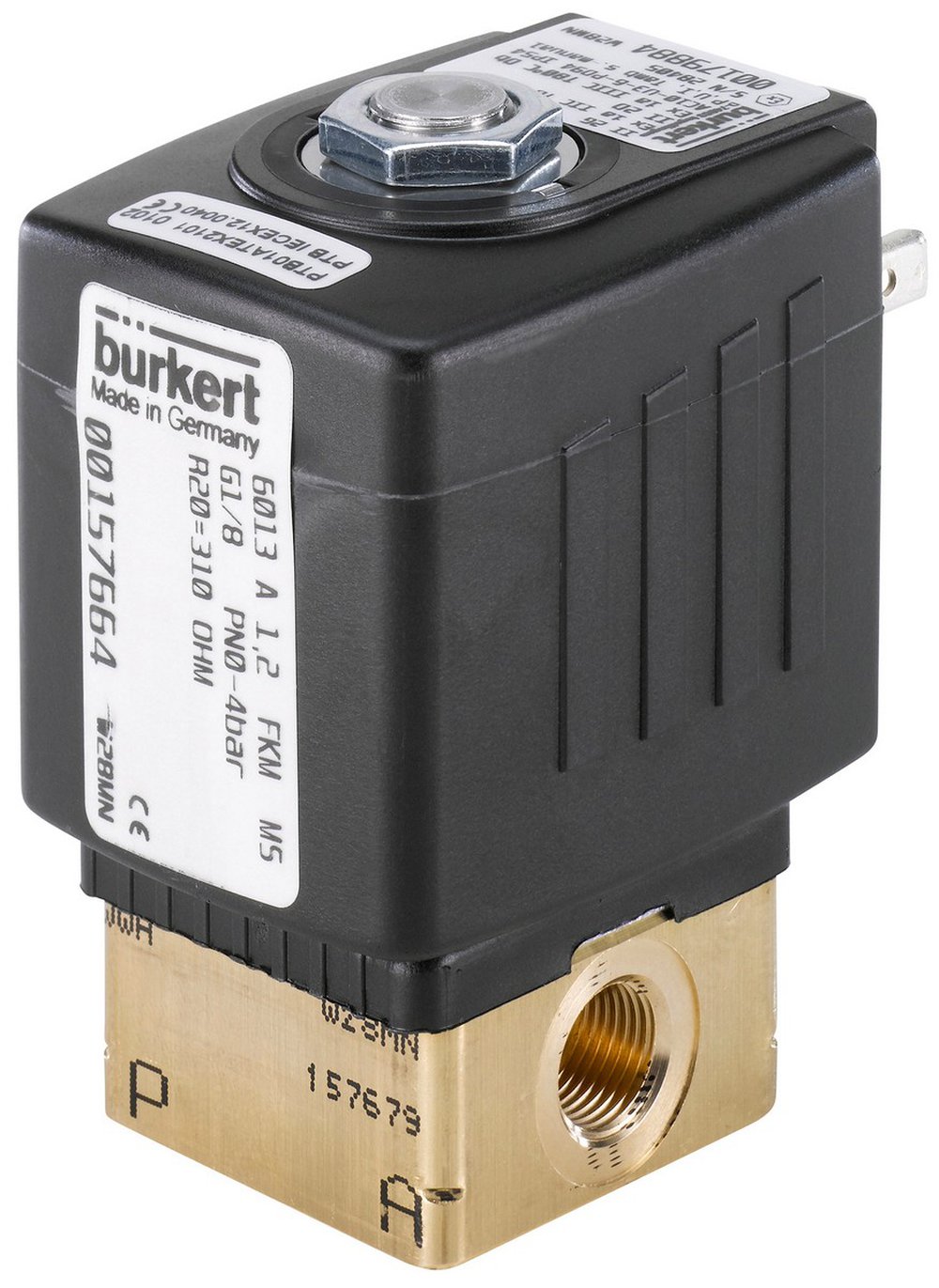

332773 BURKERT 6013-A03,0FFMSNM82-5-024/DC-08 6013 NC 2/2 WAY 3,0MM 1/8 FKM BRS NPT 1/4 32MM 24VDC 8 WATT

Mouse over image to zoom, click to enlarge

Manufacturer PN: 332773

Forberg Smith PN: 4276726

Invoice Description:

332773 BURKERT 6013-A03,0FFMSNM82-5-024/DC-08 6013 NC 2/2 WAY 3,0MM 1/8 FKM BRS NPT 1/4 32MM 24VDC 8 WATT

UNSPSC: 39120000


SPEC SHEET

▸ See All in ASCO Solenoid Valves


How Can We Make This Page Better?

Burkert 6013-A03,0FFMSNM82-5-024/DC-08 332773 24 DC 2-Way Brass 1/4 In Solenoid Valve Normally Closed Cryogenic

Price:  $168.30 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

Valve 6013 is a direct-acting plunger valve. The stopper and plunger guide tube are welded together to enhance pressure resistance and leak-tightness. Various seal material combinations are available depending on the application. A Brkert-specific flange design (SFB) enables space-saving arrangement of valves on a manifold. Kick and Drop coils are available for the reduction of electrical power consumption during operation.
2/2 - A - normally closed - inlet port 1 (P/NC) | 3,00 mm (1/8 inch) | 0,00 bar - 6,00 bar (6,00 bar) | Brass | Inner thread - NPT1/4 | 24,00 V - 24,00 V | FKM (Fluor rubber) | -10,00 C - 120,00 C | Valve complete

Specifications

 Ambient Temperature Max 55 C
 Ambient Temperature Min -10 C
 Body Design 2-Way
 Body Material Brass
 Brand Name Burkert
 Coil Wattage 8 W
 Electrical Connection DIN
 Flow Coefficient 0,23 m3/h Kv
 Max Fluid Temp 120 C
 Nominal Pressure Minimum 0 bar
 Nominal Pressure Rating Max Gas 6 bar
 Nominal Pressure Rating Max Liquid 6 bar
 Operation Normally Closed
 Size 1/4 In
 Voltage Rating 24 DC

Resources

 Product Data Sheet
