Dixon Valve & Coupling

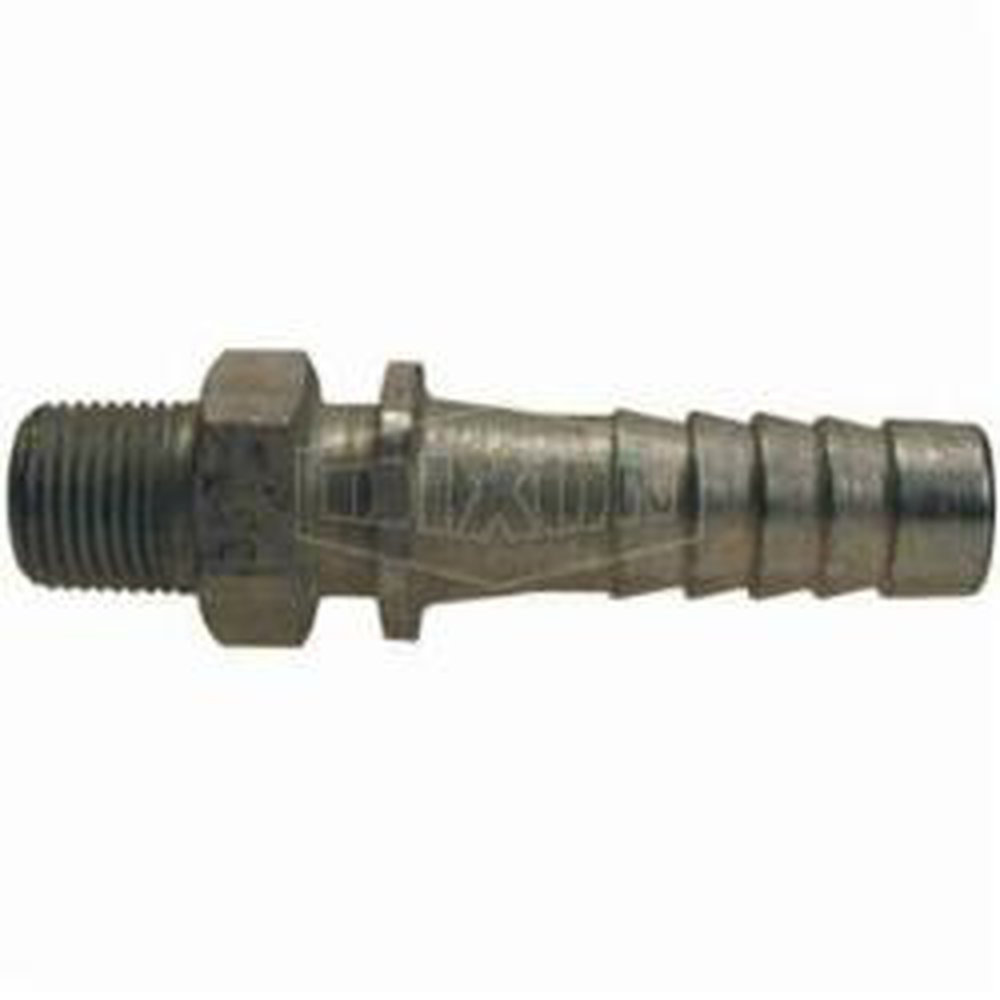

3518 DIXON VALVE 1" HOSE BARBED NIPPLE

Mouse over image to zoom, click to enlarge

Description: Dixon® Nipple, Series: 3500, 1 in Nominal, MNPT x Hose Shank End Style, 4-19/32 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Manufacturer PN: 3518

UPC:  69746402915

Forberg Smith PN: 3084931

Invoice Description:

3518 DIXON VALVE 1" HOSE BARBED NIPPLE

UNSPSC: 40141734


SPEC SHEET

How Can We Make This Page Better?

Dixon® 3518 3500 Nipple, 1 in Nominal, MNPT x Hose Shank, 600 psi Pressure, Steel, Domestic

Price:  $14.57 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Nipple, Series: 3500, 1 in Nominal, MNPT x Hose Shank End Style, 4-19/32 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Specifications

 Application For air and water service only
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT x Hose Shank
 Finish Zinc Plated
 Length 4/19/1932 in
 Manufacturer Part Number 3518
 Material Steel
 Nominal Size 1 in
 Pressure Rating 600 psi
 Series 3500
 Standards/Approvals PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Temperature Rating 70 deg F

Features

▪ The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
▪ To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
▪ To construct a whip hose, connect one end of a short (3 to 10 ft ) air hose to the air tool using a 3500 type steel nipple
▪ Connect the other end of the hose to the air supply using the standard quick-acting coupling
▪ The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
▪ The whip hose should remain permanently connected to the tool
▪ For air and water service only
▪ Do not use in connection with drinking water
▪ Wash hands after handling
