Dixon Valve & Coupling

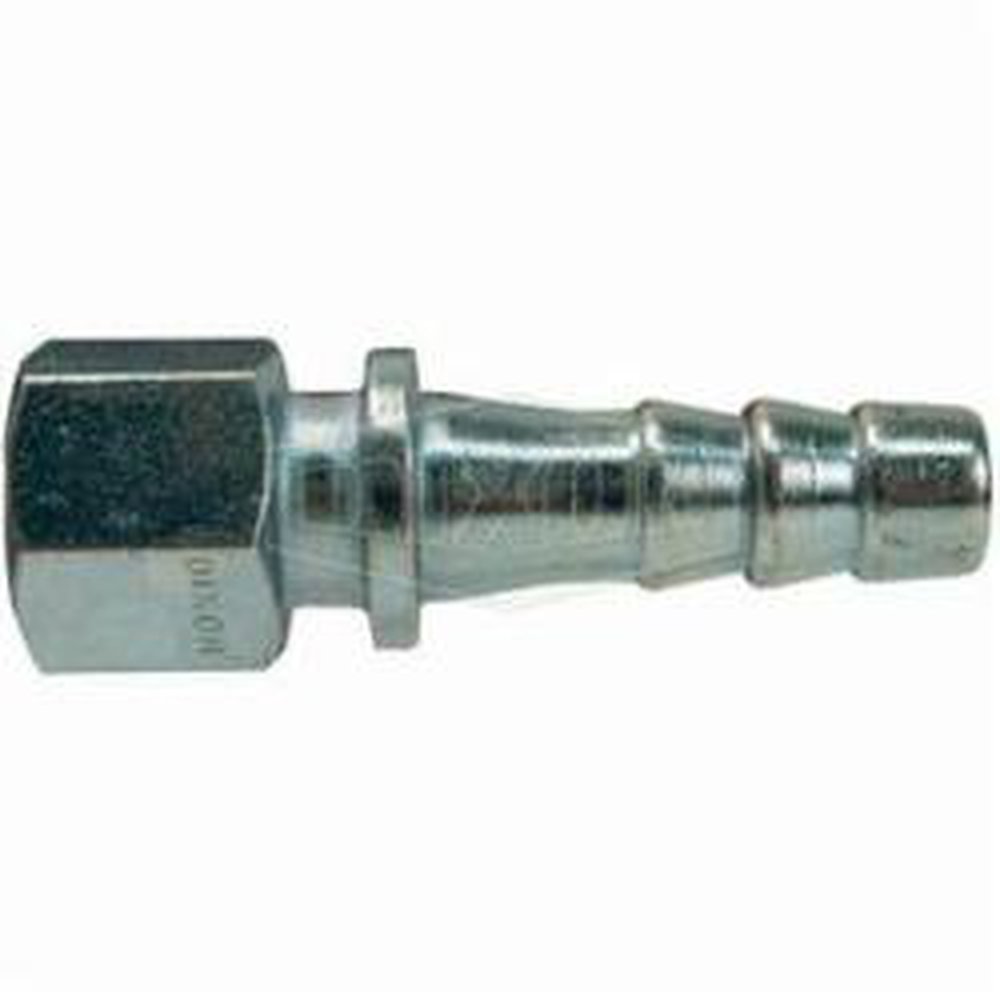

3554 DIXON 3/4X3/4 FEMALE NIPPLE

Mouse over image to zoom, click to enlarge

Description: Dixon® Nipple, Series: 3500, 3/4 in Nominal, FNPT x Hose Shank End Style, 3-7/8 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Manufacturer PN: 3554

UPC:  69746402934

Forberg Smith PN: 3865124

Invoice Description:

3554 DIXON 3/4X3/4 FEMALE NIPPLE


SPEC SHEET

How Can We Make This Page Better?

Dixon® 3554 3500 Nipple, 3/4 in Nominal, FNPT x Hose Shank, 600 psi Pressure, Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Nipple, Series: 3500, 3/4 in Nominal, FNPT x Hose Shank End Style, 3-7/8 in Length, 600 psi Pressure, 70 deg F, Steel, Zinc Plated, Domestic

Specifications

 Application For air and water service only
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style FNPT x Hose Shank
 Finish Zinc Plated
 Length 3-7/8 in
 Manufacturer Part Number 3554
 Material Steel
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS 3554
 Pressure Rating 600 psi
 Series 3500
 Standards/Approvals PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
 Temperature Rating 70 deg F

Features

▪ The constant vibration created by air tools, like air drills and pavement breakers, is destructive to air hose couplings, especially the quick-acting type
▪ To provide protection against coupling breakage and related hazards, Dixon® recommends the use of a whip hose
▪ Connect the other end of the hose to the air supply using the standard quick-acting coupling
▪ The heat treated 3500 nipple will withstand vibration far better than the standard coupling and provide a safer connection
▪ The whip hose should remain permanently connected to the tool
▪ For air and water service only
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
