Dixon Valve & Coupling

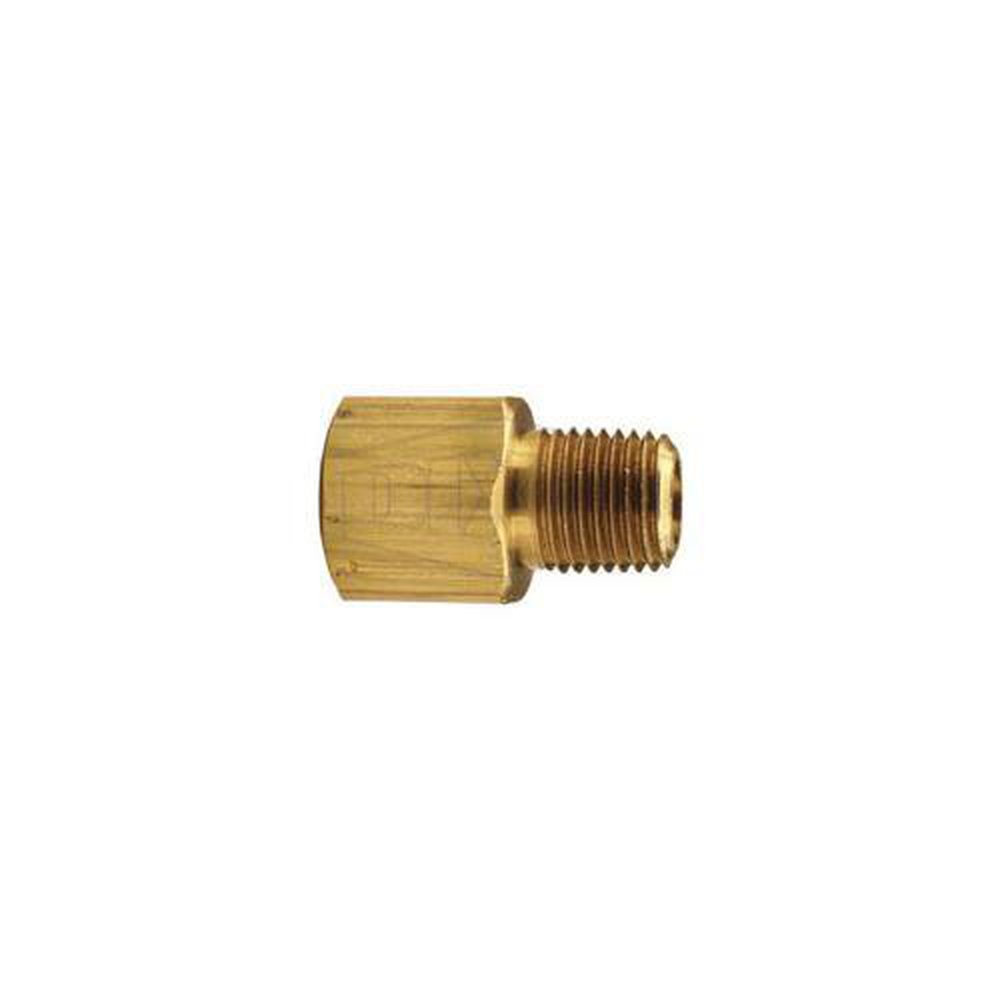

3751206C DIXON PIPE ADAPTER

Mouse over image to zoom, click to enlarge

Description: Dixon®, 3751206C, Reducer Adapter, Series: 375, Fitting/Connector: Adapter, 3/8 x 3/4 in Nominal, MNPT x FNPT End Style, 1-3/8 in Hex, 1-1/2 in Length, 125 lb Pressure Class, 1000 psi Pressure, Brass, -65 to 250 deg F, Domestic

Manufacturer PN: 3751206C

UPC:  69746423857

Forberg Smith PN: 4357955

Invoice Description:

3751206C DIXON PIPE ADAPTER


SPEC SHEET

How Can We Make This Page Better?

Dixon® 3751206C 375 Reducer Adapter, 3/8 x 3/4 in Nominal, MNPT x FNPT End Style, 125 lb, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon®, 3751206C, Reducer Adapter, Series: 375, Fitting/Connector: Adapter, 3/8 x 3/4 in Nominal, MNPT x FNPT End Style, 1-3/8 in Hex, 1-1/2 in Length, 125 lb Pressure Class, 1000 psi Pressure, Brass, -65 to 250 deg F, Domestic

Specifications

 Application For any low to medium pressure line connection and non-potable water service
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT x FNPT
 Fitting Type Adapter
 Hex Size 1-3/8 in
 Length 1-1/2 in
 Manufacturer Part Number 3751206C
 Material Brass
 Nominal Size 3/8 x 3/4 in
 PART NUMBER KEYWORDS 3751206C ; RA6F3M ; 375-1206 ; 3751206 ; 697464140481 ; 69746414048
 Pressure Rating 1000 psi
 Series 375
 Standards/Approvals SAE J530/J531
 Temperature Rating -65 to 250 deg F

Features

▪ Dryseal construction

Resources

 Catalog
 Catalog Page
 Product Data Sheet
