Dixon Valve & Coupling

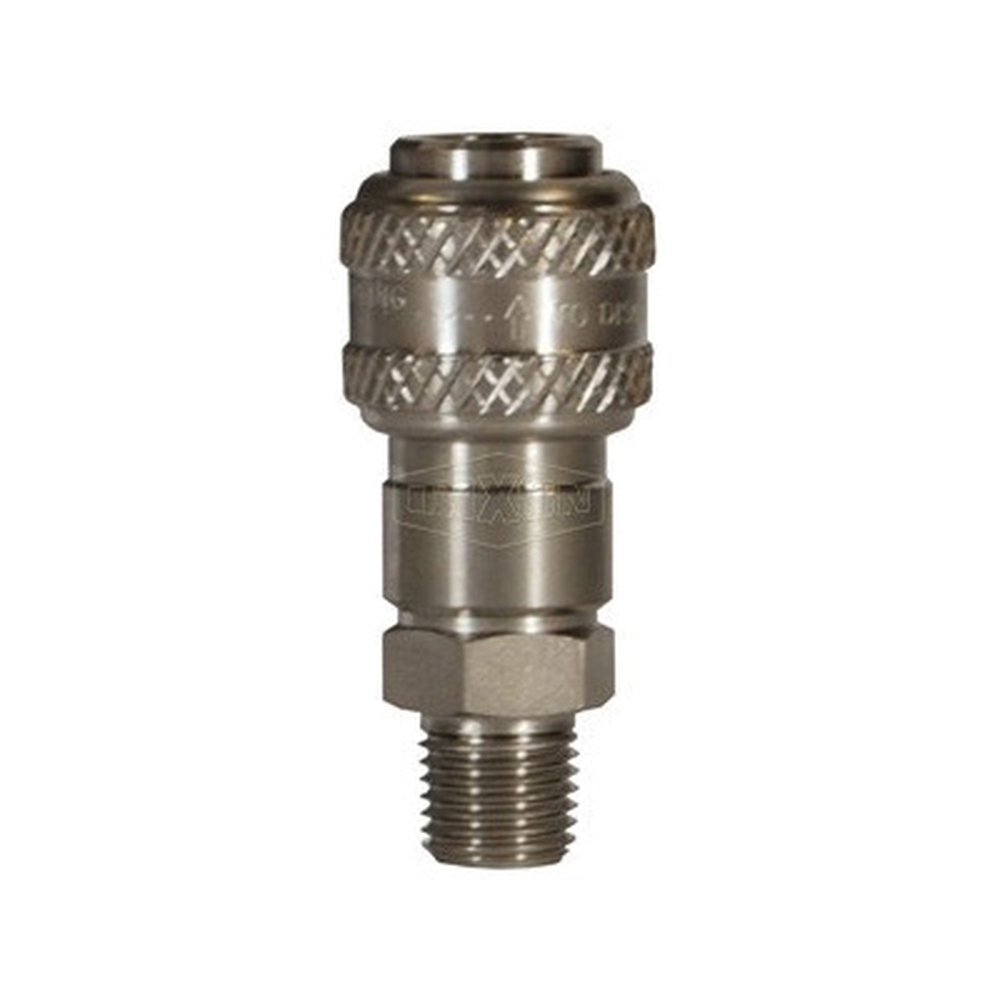

3DM3-S DIXON 3/8 SS COUPLER

Mouse over image to zoom, click to enlarge

Description: Dixon® Male Quick Connect Coupler, Industrial, Series: DF Series, 3/8-18 Nominal, Quick Disconnect Coupler x NPTF End Style, 7/8 in Hex, 2.73 in Length, 300 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 1.18 in OD, Domestic

Manufacturer PN: 3DM3-S

UPC:  69746445690

Forberg Smith PN: 3827112

Invoice Description:

3DM3-S DIXON 3/8 SS COUPLER


How Can We Make This Page Better?

Dixon® 3DM3-S DF Series Industrial Male Quick Connect Coupler, 3/8-18 Nominal, Quick Disconnect Coupler x NPTF, 300 psi Pressure, 303 Stainless Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Male Quick Connect Coupler, Industrial, Series: DF Series, 3/8-18 Nominal, Quick Disconnect Coupler x NPTF End Style, 7/8 in Hex, 2.73 in Length, 300 psi Pressure, -40 to 250 deg F, 303 Stainless Steel, 1.18 in OD, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 1.18 in OD
 Domestic or Import Domestic
 End Style Quick Disconnect Coupler x NPTF
 Hex Size 7/8 in
 Length 2.73 in
 Manufacturer Part Number 3DM3-S
 Material 303 Stainless Steel
 Nominal Size 3/8-18
 PART NUMBER KEYWORDS 3DM3-S ; 3DM3S ; DCS25
 Pressure Rating 300 psi
 Series DF Series
 Standards/Approvals ROHS Compliant
 Temperature Rating -40 to 250 deg F
 Type Industrial

Features

▪ Machined components are manufactured using solid bar stock
▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ Nitrile seals are standard
▪ Steel componentry is plated using ROHS compliant trivalent chrome
▪ Steel prong valve

Resources

 Catalog
 Catalog Page
