Dixon Valve & Coupling

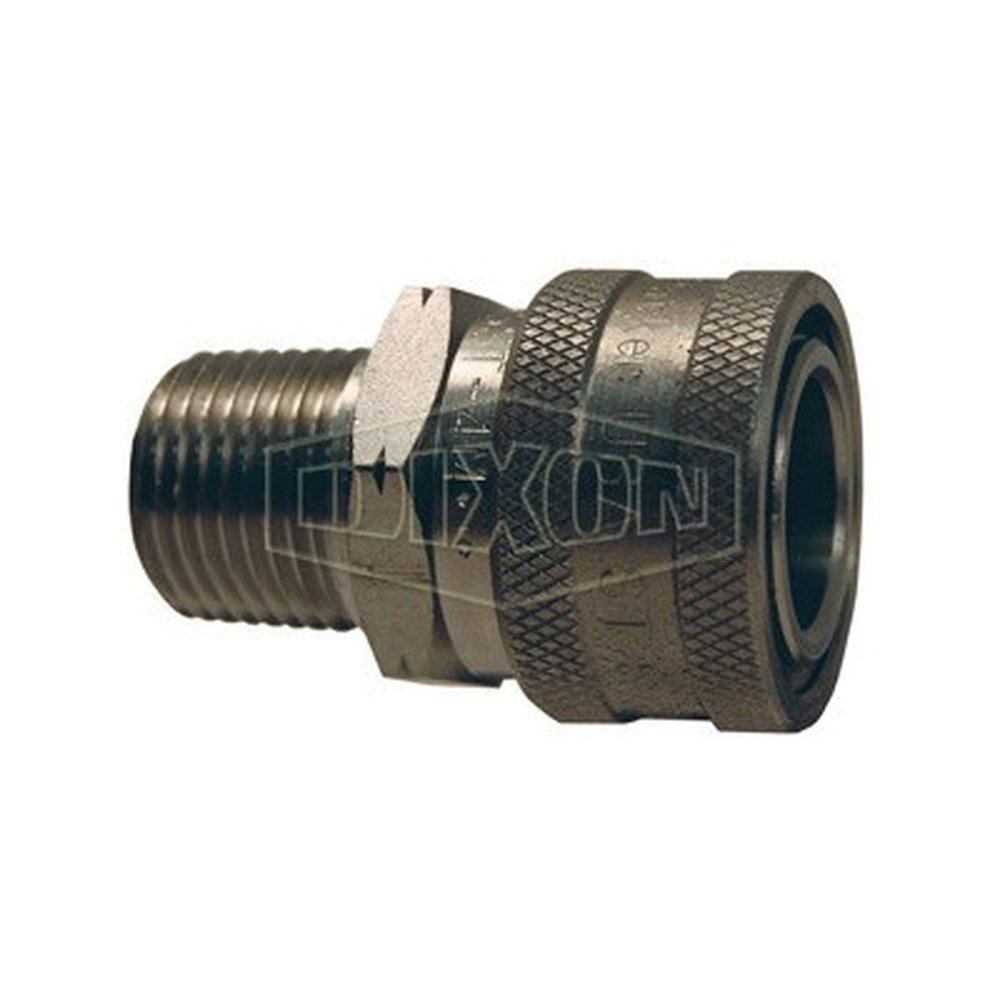

3EM3-S DIXON 3/8 SS COUPLER

Mouse over image to zoom, click to enlarge

Description: Dixon® Quick Connect Coupling, Straight Through Interchange, 3/8-18 Nominal, MNPT, 5500 psi, 303 Stainless Steel, Domestic

Manufacturer PN: 3EM3-S

UPC:  69746446186

Forberg Smith PN: 4347640

Invoice Description:

3EM3-S DIXON 3/8 SS COUPLER


How Can We Make This Page Better?

Dixon® 3EM3-S Straight Through Interchange Quick Connect Coupling, 3/8-18 Nominal, MNPT, 303 Stainless Steel, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Quick Connect Coupling, Straight Through Interchange, 3/8-18 Nominal, MNPT, 5500 psi, 303 Stainless Steel, Domestic

Specifications

 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT
 Manufacturer Part Number 3EM3-S
 Material 303 Stainless Steel
 Nominal Size 3/8-18
 PART NUMBER KEYWORDS 3EM3-S ; 3EM3S ; STMC3SS ; 089109875498 ; 08910987549 ; 89109875498
 Pressure Rating 5500 psi
 Type Straight Through Interchange

Features

▪ These couplers have no internal valves, providing maximum flow with minimum pressure drop
▪ Interchanges with Parker-Hannifin SST/BST, Foster FST and Hansen ST couplings
▪ 3/8 in body
▪ 5500 psi at 70 deg F pressure
▪ Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
▪ Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
