Dixon Valve & Coupling

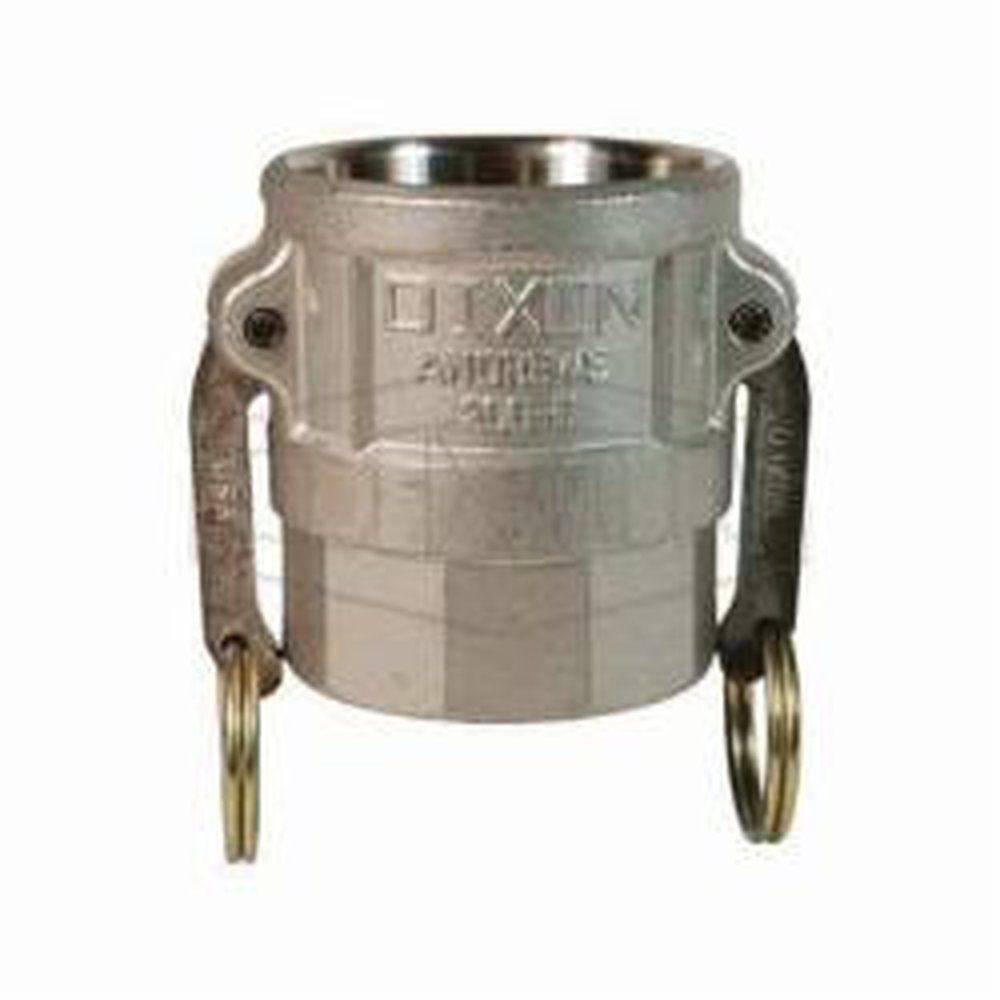

4" 400-D-SS DIXON SS FEMALE IPS X FEMALE QUICK DISC

Mouse over image to zoom, click to enlarge

Description: Dixon® Cam and Groove Coupler, Type D, Coupling Fitting/Connector, 4 in Nominal, Female Coupler x FNPT End Style, 3-11/16 in Length, 100 psi Pressure, 316 Stainless Steel, Domestic

Manufacturer PN: 400-D-SS

UPC:  69746405129

Forberg Smith PN: 3204816

Invoice Description:

4" 400-D-SS DIXON SS FEMALE IPS X FEMALE QUICK DISC

UNSPSC: 40141734


SPEC SHEET

How Can We Make This Page Better?

Dixon® 400-D-SS Type D Cam and Groove Coupler, 4 in Nominal, Female Coupler x FNPT End Style, 316 Stainless Steel, Domestic

Price:  $211.67 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Cam and Groove Coupler, Type D, Coupling Fitting/Connector, 4 in Nominal, Female Coupler x FNPT End Style, 3-11/16 in Length, 100 psi Pressure, 316 Stainless Steel, Domestic

Specifications

 Application Designed for use with liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Female Coupler x FNPT
 Fitting Type Coupling
 Length 3/11/2016 in
 Manufacturer Part Number 400-D-SS
 Material 316 Stainless Steel
 Nominal Size 4 in
 Pressure Rating 100 psi
 Type Type D
 Video Links

Features

▪ Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
▪ 11-1/32 in open across cam arm
▪ Precision machined to rigid tolerances
▪ Stainless pins will not rust or bind, providing great strength and safety
▪ Recess holds gasket firmly in place - ensures proper placement
▪ Long shank design allows proper banding, thus eliminating the major cause of hose damage
▪ Buna-N gaskets
▪ Durable stainless steel cam arm pins
▪ Produced to interchange with all product produced to commercial item description A-A-59326D
▪ Under no circumstances should cam and groove couplings be used for compressed air or steam service!
