Burkert

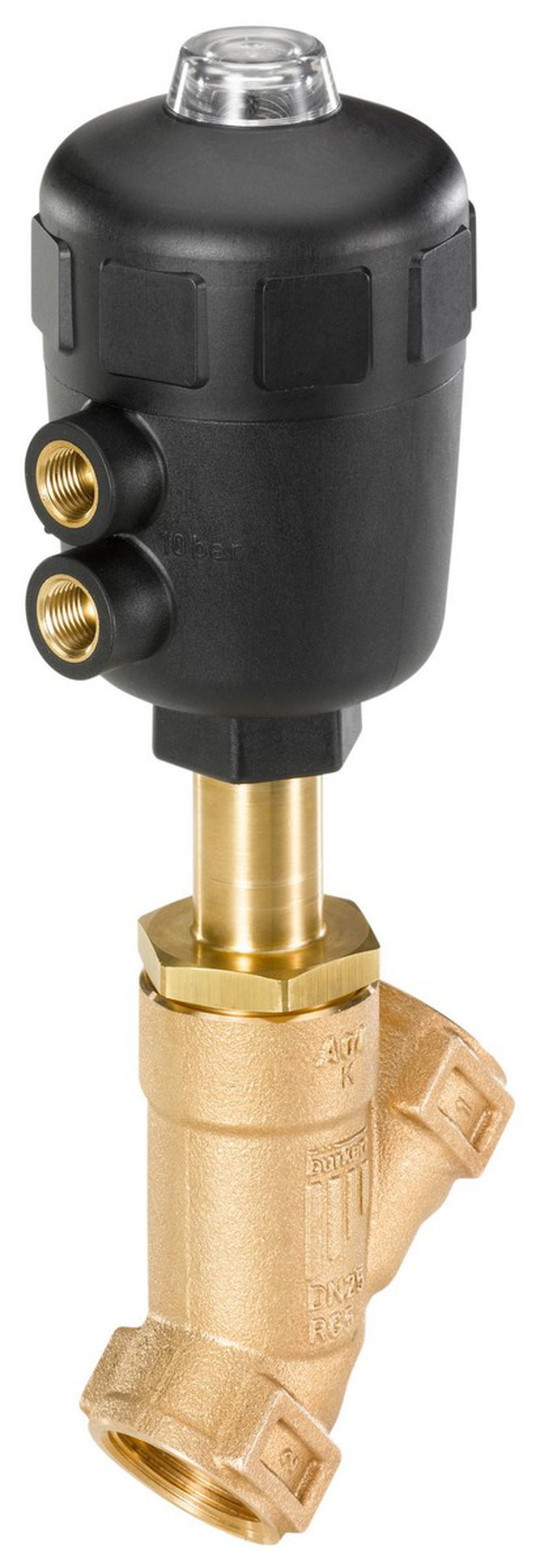

468165 BURKERT 2000-B-2-15,0-EE-RG-NM84-B-D 2000 NO 2/2 WAY 15MM 1/2 PTFE BRZ NPT 15MM 1/2 PA-ACTUATOR BRASS INSERTS 50 MM

Mouse over image to zoom, click to enlarge

Manufacturer PN: 468165

Forberg Smith PN: 4258482

Invoice Description:

468165 BURKERT 2000-B-2-15,0-EE-RG-NM84-B-D 2000 NO 2/2 WAY 15MM 1/2 PTFE BRZ NPT 15MM 1/2 PA-ACTUATOR BRASS INSERTS 50 MM


SPEC SHEET

▸ See All in ASCO Angle Body Piston Valves


How Can We Make This Page Better?

Burkert 2000-B-2-15,0-EE-RG-NM84-B-D 468165 Gun Metal 1/2 In Piston Valve Normally Open 50 mm Operator

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The externally piloted angle seat valve is operated with a single or double-acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the virtually straight flow path. The reliable self-adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
On/off valves | Angle seat valve | 0,00 bar - 16,00 bar | -10,00 C - 185,00 C | 2/2 - B - normally open (NO) | PTFE (Polytetrafluorethylene) | Gun metal | Inner thread - NPT1/2

Specifications

 Ambient Temperature Max 40 C
 Ambient Temperature Min -10 C
 Body Design 2-Way
 Body Material Gun Metal
 Brand Name Burkert
 Flow Coefficient 4,2 m3/h Kv
 Max Fluid Temp 185 C
 Maximum Pilot Air Water Pressure 10 bar
 Minimum Pilot Air Water Pressure 2,4 bar
 Nominal Pressure Maximum 16 bar
 Nominal Pressure Minimum 0 bar
 Operation Normally Open
 Size 1/2 In
 Valve Head Diameter Mm 50 mm
