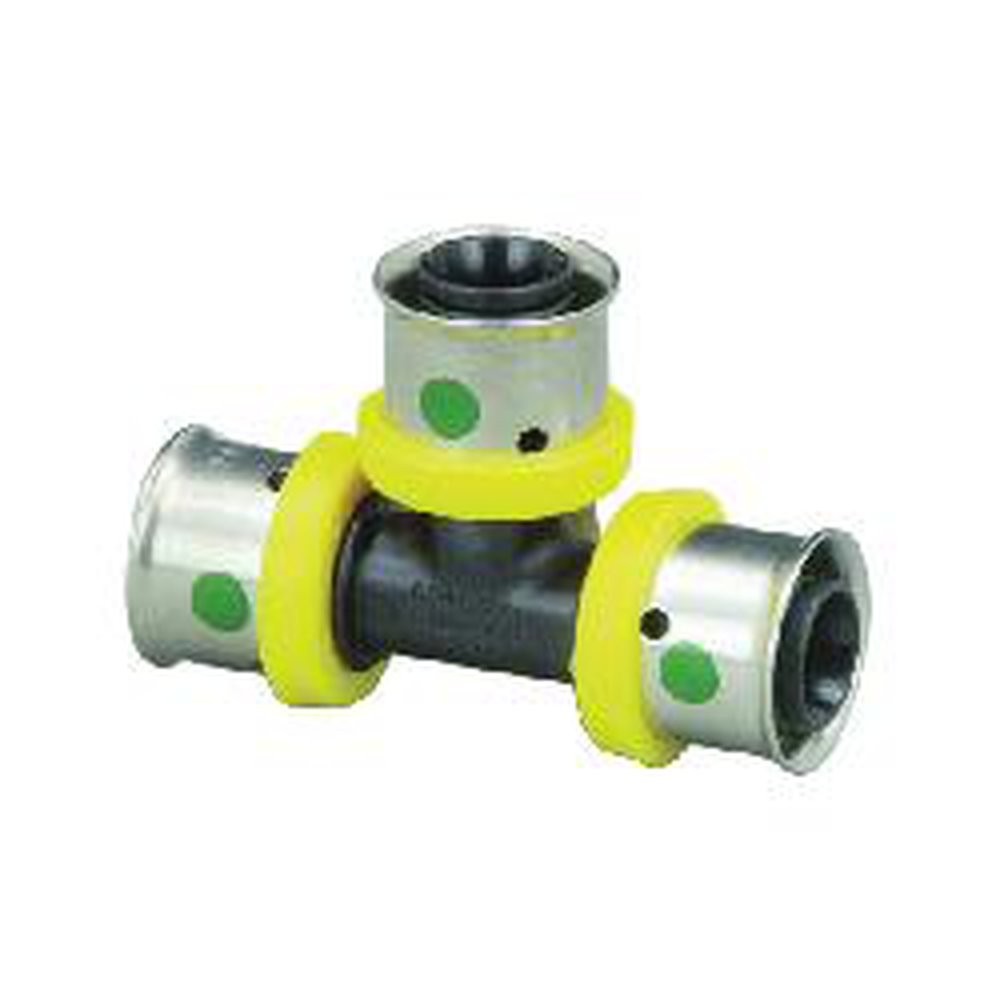

  • 49553 1X1X1/2 PEX PRESS TEE POLYMER
  • 49553 1X1X1/2 PEX PRESS TEE POLYMER

Description: PureFlow® Press, 49553, Tee, Series: PureFlow®, 1 x 1 x 1/2 in Nominal, Press End Style, 160 psi Pressure, Polymer, 180 deg F Potable/200 deg F Hydronic, Domestic

Manufacturer PN: 49553

UPC:  69151449553

Forberg Smith PN: 3343657

Invoice Description:

49553 1X1X1/2 PEX PRESS TEE POLYMER


SPEC SHEET

How Can We Make This Page Better?

PureFlow® Press 49553 PureFlow® Tee, 1 x 1 x 1/2 in Nominal, Press End Style, Polymer, Domestic

Log In for Pricing and Availability




Description

Viega PEX Press fittings make consistent, reliable PEX tubing connections. Suitable for use with all ViegaPEX™ tubing products, Viega PEX Press fittings can be installed with the same hand and power tools as other Viega press systems. Three viewing holes allow the installer to confirm that tubing has been inserted properly and the color-coded tool locator ring consistently positions the tool on the press sleeve. Available in polymer, bronze and Zero Lead bronze, Viega PEX Press fittings come with factory-attached stainless steel sleeves and are tested and listed for use in potable water applications, radiant systems and residential fire protection installations.
PureFlow® Press, 49553, Tee, Series: PureFlow®, 1 x 1 x 1/2 in Nominal, Press End Style, 160 psi Pressure, Polymer, 180 deg F Potable/200 deg F Hydronic, Domestic

Specifications

 Application Potable Water Systems, Hot and Cold Systems, Parallel Systems, Branch and Main Systems, Combination Systems, Fire Protection Systems and Fire Sprinkler
 Brand Name PureFlow® Press
 Domestic or Import Domestic
 End Style Press
 Manufacturer Part Number 49553
 Material Polymer
 Nominal Size 1 x 1 x 1/2 in
 PART NUMBER KEYWORDS 49553 ; 691514495538 ; 69151449553 ; 30691514495539
 Pressure Rating 160 psi
 Series PureFlow®
 Standards/Approvals NFPA 13D|NSF 61|UL Listed
 Temperature Rating 180 deg F Potable/200 deg F Hydronic

Features

▪ No glue, solder torches or lubricants needed
▪ Can be installed in nearly any climate
▪ Allows immediate testing without waiting for glue to dry, fittings to cool or plastic rings to contract
▪ No assembly required
▪ Suitable for new or retrofit applications in residential or light commercial projects
▪ Resistant to corrosion and dezincification
▪ ViegaPEX™ ultra, Viega FostaPEX and ViegaPEX™ barrier
