Mueller Industries

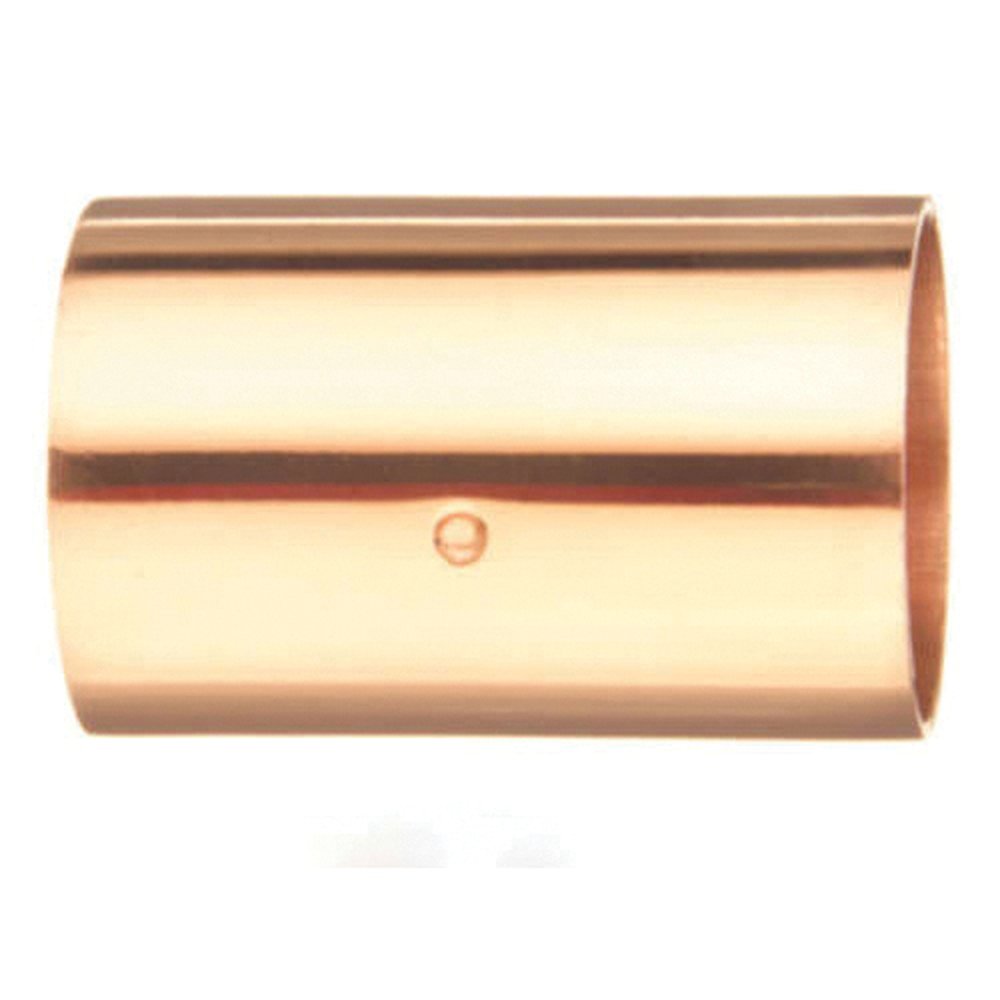

5/8 COP COUPLING W/ DIMP-STOP WROT

Mouse over image to zoom, click to enlarge

Description: EPC Tube Coupling, Solder, Series: 100, Fitting/Connector Type: Coupling, 5/8 in Nominal, Solder, 630 psi, -20 to 100 deg F, Copper, Domestic

Manufacturer PN: 10030902

UPC:  68326430902

Forberg Smith PN: 3039838

Invoice Description:

5/8 COP COUPLING W/ DIMP-STOP WROT


SPEC SHEET

How Can We Make This Page Better?

EPC 10030902 Solder Tube Coupling With Stop, 5/8 in Nominal, Solder End Style, Copper, Domestic

Log In for Pricing and Availability




Description

The production of copper fittings is environmentally safe, and the industry is the undisputed leader in recycling. Over half of the copper used in manufacturing EPC copper fittings is from recycled sources. These solder joint fittings are available in 1/8 to 8 in sizes.
EPC Tube Coupling, Solder, Series: 100, Fitting/Connector Type: Coupling, 5/8 in Nominal, Solder, 630 psi, -20 to 100 deg F, Copper, Domestic

Specifications

 Application Industrial and Residential
 Brand Name EPC
 Domestic or Import Domestic
 End Style Solder
 Fitting Type Coupling
 Manufacturer Part Number 10030902
 Material Copper
 Nominal Size 5/8 in
 PART NUMBER KEYWORDS 10030902 ; 100-5/8 ; 10058 ; 683264309029 ; 68326430902
 Pressure Rating 630 psi
 Series 100
 Standards/Approvals ASME/ANSI B16.22|MSS SP104
 Temperature Rating -20 to 100 deg F
 Type Solder

Features

▪ Wrot copper fittings are designed to join ASTM B88 and ASTM B280 seamless copper tube
