Dixon Valve & Coupling

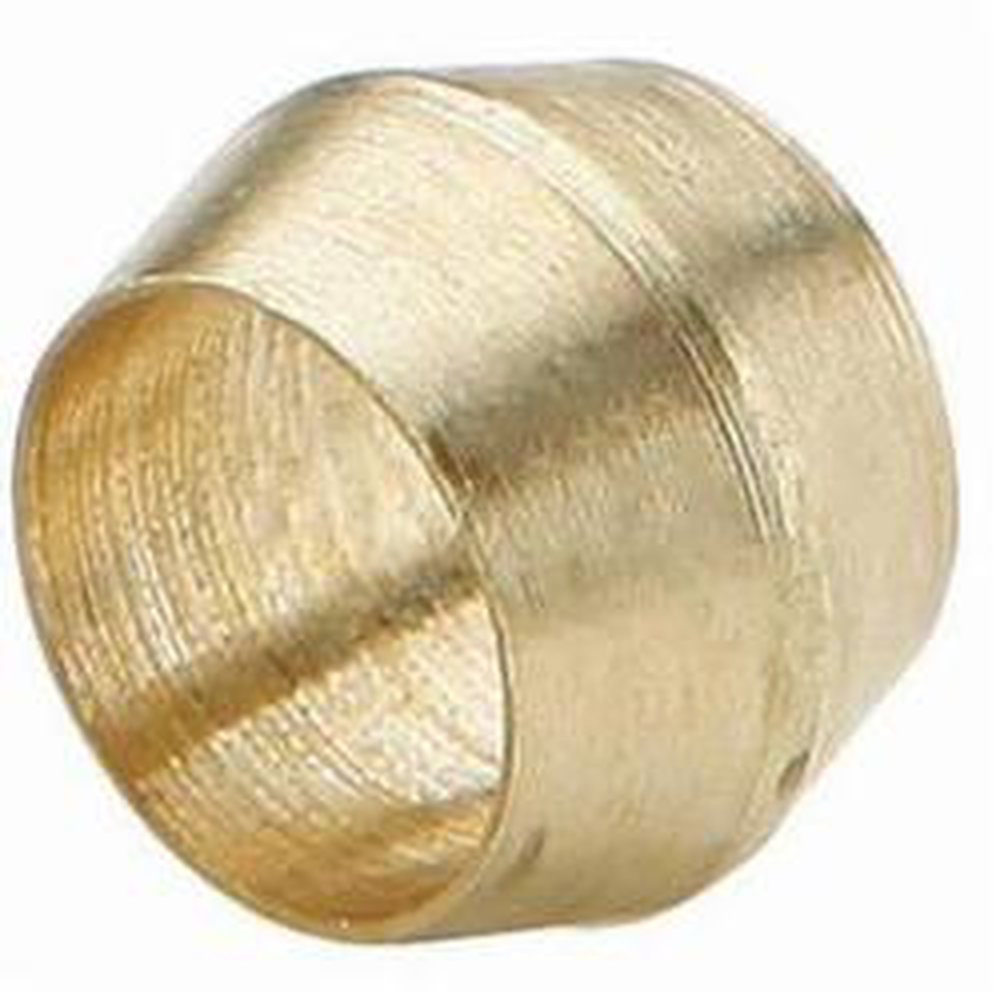

60C-07 DIXON 7/16 BRASS SLEEVE

Mouse over image to zoom, click to enlarge

Description: Dixon®, 60C-07, Compression Sleeve, Series: 60C, Fitting/Connector: Ferrule, 7/16 in Nominal, Tube End Style, 0.31 in Length, 200 psi Pressure, -65 to 250 deg F, Brass, Domestic

Manufacturer PN: 60C-07

UPC:  69746442156

Forberg Smith PN: 4594838

Invoice Description:

60C-07 DIXON 7/16 BRASS SLEEVE

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® 60C-07 60C Compression Sleeve, Ferrule, 7/16 in Nominal, Tube End Style, Brass, Domestic

Price:  $2.61 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon®, 60C-07, Compression Sleeve, Series: 60C, Fitting/Connector: Ferrule, 7/16 in Nominal, Tube End Style, 0.31 in Length, 200 psi Pressure, -65 to 250 deg F, Brass, Domestic

Specifications

 Application Copper, Aluminum and Thermoplastic Tubing
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Tube
 Fitting Type Ferrule
 Length 0.31 in
 Manufacturer Part Number 60C-07
 Material Brass
 Nominal Size 7/16 in
 PART NUMBER KEYWORDS 60C-07 ; 60C07 ; 697464421566 ; 69746442156
 Pressure Rating 200 psi
 Series 60C
 Standards/Approvals SAE J512/060115|UL Listed|ASA Standard
 Temperature Rating -65 to 250 deg F

Features

▪ Manufactured for low and medium pressure tubing connection work where excessive vibration or tube movement is not involved
▪ No flaring, soldering or other preparation of tubing necessary to assemble
▪ Pressure rating is the lower of either the rating of the coupling or the hose at 70 deg F
