626-13-CB-P1-E5-S1 DWYER-INSTR 626-13-CB-P1-E5-S1

Mouse over image to zoom, click to enlarge

Manufacturer PN: 626-13-CB-P1-E5-S1

Forberg Smith PN: 4608501

Invoice Description:

626-13-CB-P1-E5-S1 DWYER-INSTR 626-13-CB-P1-E5-S1

UNSPSC: 39120000

▸ See All in Dwyer Pressure Transmitters


How Can We Make This Page Better?

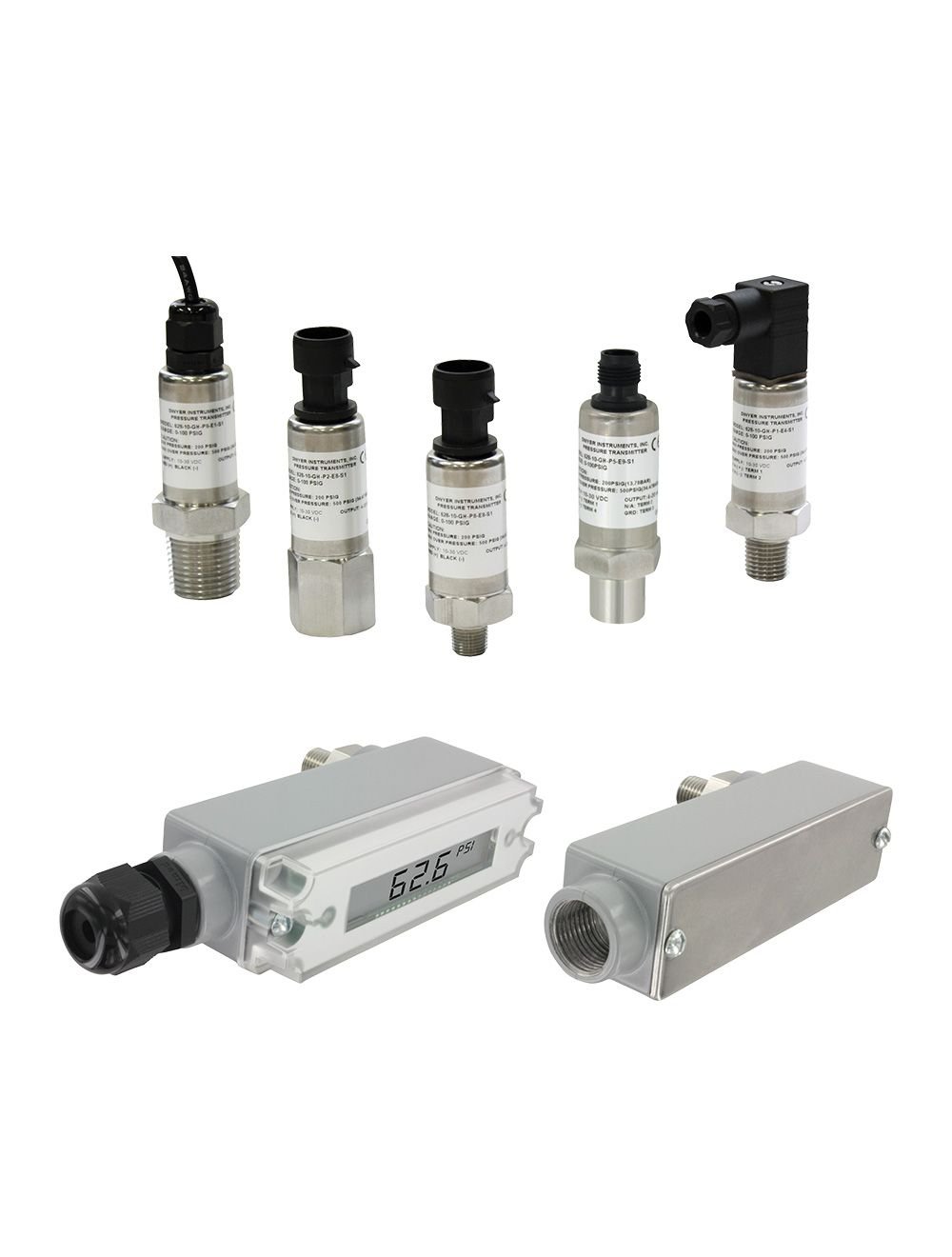

DWYER 626-13-CB-P1-E5-S1 SERIES 626 & 628 INDUSTRIAL PRESSURE TRANSMITTER

Price:  $331.76 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

The Series 626 Industrial Pressure Transmitters possess a highly precise 0.25% full scale accuracy piezo-resistive sensor contained in a compact, rugged, NEMA 4X (IP66) stainless steel general purpose housing or cast aluminum conduit housing. The Series 628 Industrial Pressure Transmitters are ideal for OEMs with 1% full scale accuracy sensors. The corrosion resistant 316L stainless steel wetted parts allow the Series 626 and 628 transmitters to measure the pressure in a multitude of processes from hydraulic oils to chemicals. The Series 626 and 628 are available in absolute and gage pressure ranges with a variety of optional outputs, process connections and electrical terminations to allow you to select the right transmitter for your application. NIST CALIBRATION available in Product Configurator. Note: The standard conduit housing (-CH) has been phased out, see the conduit box housing (-CB) for the replacement model.
Industrial pressure transmitter, range 0-300 psig, conduit box housing, 1/4" male NPT, 1/2" female NPT conduit connection, 4-20 mA, max. pressure 600 psig, over pressure 1500 psig.

Specifications

 Brand Name Dwyer
 Manufacturer PN 626-13-CB-P1-E5-S1
 Manufacturer Standard Lead-Time Availability: Less Than 1 Week*
 Mfr Cat L1 PRESSURE
 Mfr Cat L2 SINGLE PRESSURE
 Mfr Cat L3 TRANSMITTER
 Series SERIES 626 & 628 INDUSTRIAL PRESSURE TRANSMITTER
