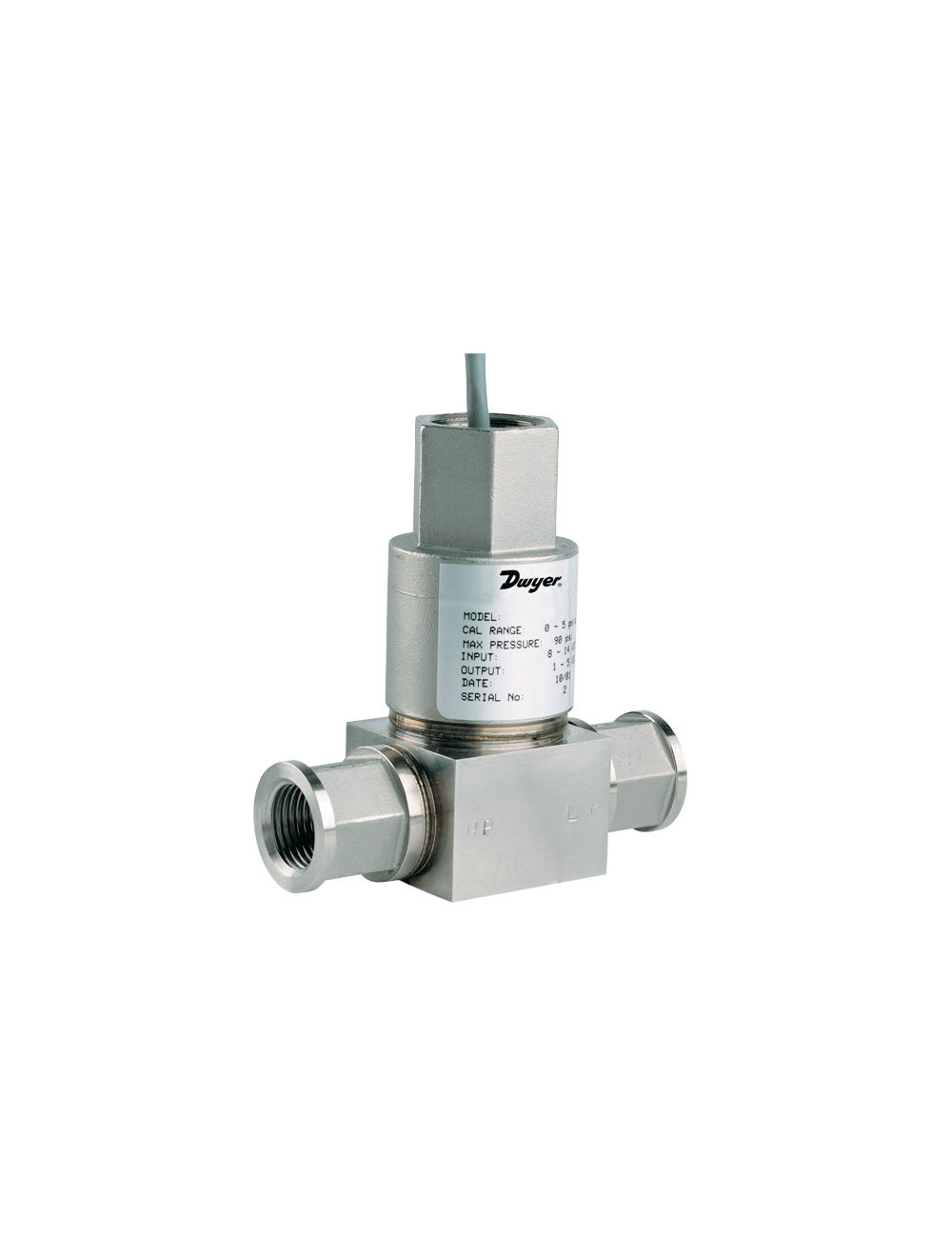

636D-2 DWYER 30# DIFFERENTIAL PRESSURE TRANSMITTER

Mouse over image to zoom, click to enlarge

Manufacturer PN: 636D-2

Forberg Smith PN: 3084388

Invoice Description:

636D-2 DWYER 30# DIFFERENTIAL PRESSURE TRANSMITTER

▸ See All in Dwyer Pressure Transmitters


How Can We Make This Page Better?

DWYER 636D-2 SERIES 636D FIXED RANGE DIFFERENTIAL PRESSURE TRANSMITTER

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Series 636D Differential Pressure Transmitter can be used for measuring pressures of liquids, gases & vapors. All available ranges have an excellent 0.5% F.S. accuracy with a 4-20 mA Output standard or optional 1-5 VDC output. The NEMA 4 housing is an all 316 welded construction that is designed to withstand the harshest environmental conditions. With all 316L wetted materials, this transmitter is compatible with most media. These units are CSA approved explosion-proof for use in specified hazardous locations. Calibration Option available under Accessories.
Fixed range differential pressure transmitter, range 0-30 psid.

Specifications

 Brand Name Dwyer
 Manufacturer PN 636D-2
 Manufacturer Standard Lead-Time Availability: 1-3 days*
 Mfr Cat L1 PRESSURE
 Mfr Cat L2 DIFFERENTIAL PRESSURE
 Mfr Cat L3 TRANSMITTERS
 Series SERIES 636D FIXED RANGE DIFFERENTIAL PRESSURE TRANSMITTER
