Viega

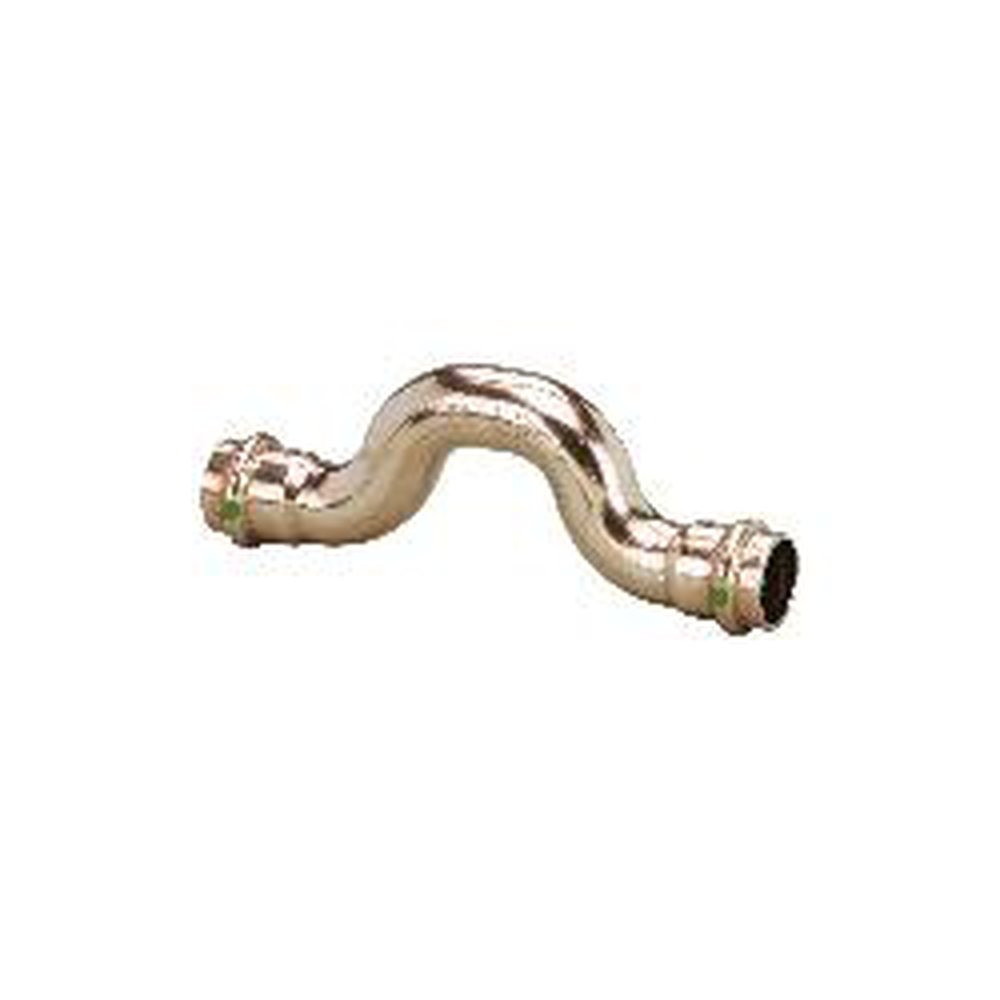

  • 77742 1/2 PROPRESS CROSS-OVER COPPER EPDM SEAL
  • 77742 1/2 PROPRESS CROSS-OVER COPPER EPDM SEAL

Description: ProPress® Crossover, Fitting/Connector Type: Crossover, 1/2 in Nominal, Press, Copper, 5.12 in L, Import

Manufacturer PN: 77742

UPC:  69151477742

Forberg Smith PN: 2999865

Invoice Description:

77742 1/2 PROPRESS CROSS-OVER COPPER EPDM SEAL


SPEC SHEET


ProPress® 77742 Crossover, 1/2 in Nominal, Press End Style, Copper, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress® Crossover, Fitting/Connector Type: Crossover, 1/2 in Nominal, Press, Copper, 5.12 in L, Import

Specifications

 Application Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gases, Fire Sprinkler, Low Pressure Steam
 Brand Name ProPress
 Dimensions 5.12 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Crossover
 Manufacturer Part Number 77742
 Material Copper
 Nominal Size 1/2 in
 PART NUMBER KEYWORDS 77742 ; 691514777429 ; 69151477742 ; 30691514777420
 Standards/Approvals ASTM B88|CSA Certified|FM Approved|NSF 61G|UL Listed

Features

▪ ASTM B88 tubing
▪ Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
▪ Reliable- achieve a consistent, strong, reliable, watertight seal
▪ The high strength connection, when installed properly, is guaranteed for 50 years
▪ Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
▪ Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
▪ Requires less equipment
▪ Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
▪ Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
▪ Viega smart Connect® feature is available on all of our fittings and most of our valves
