Dixon Valve & Coupling

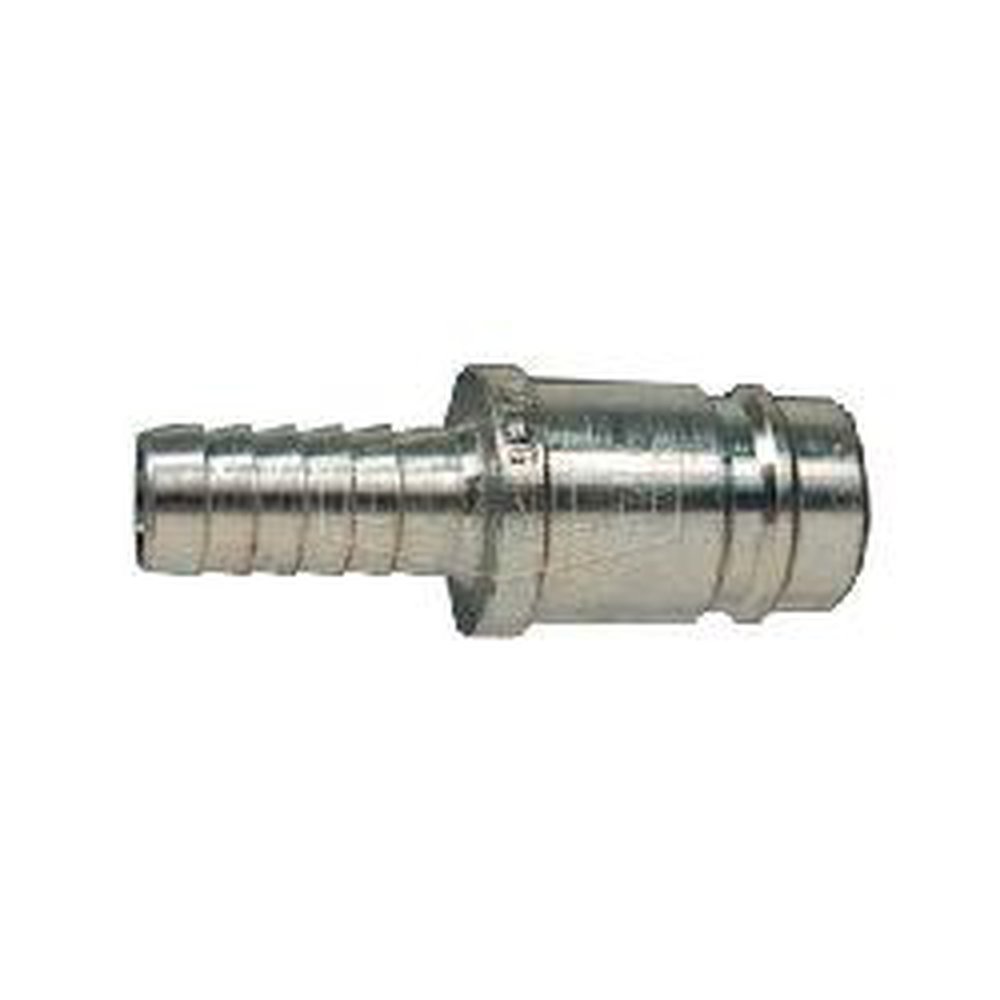

1/4X3/8 H9C DCP2144 QUICK-CONNECT PLUG HOSE

Mouse over image to zoom, click to enlarge

Description: Dixon® Quick Connect Plug, Air Chief Industrial, 3/8 x 1/4 in Nominal, Quick Connect Plug x Hose Barb End Style, 1-15/16 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 9/16 in OD, Domestic

Manufacturer PN: DCP2144

UPC:  69746400774

Forberg Smith PN: 3044242

Invoice Description:

1/4X3/8 H9C DCP2144 QUICK-CONNECT PLUG HOSE

UNSPSC: 40183106


SPEC SHEET

How Can We Make This Page Better?

Dixon® DCP2144 Air Chief Industrial Quick Connect Plug, 3/8 x 1/4 in Nominal, Quick Connect Plug x Hose Barb, 300 psi Pressure, Steel, Domestic

Price:  $3.69 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Quick Connect Plug, Air Chief Industrial, 3/8 x 1/4 in Nominal, Quick Connect Plug x Hose Barb End Style, 1-15/16 in Length, 300 psi Pressure, -40 to 250 deg F, Steel, 9/16 in OD, Domestic

Specifications

 Brand Name Dixon®
 Dimensions 9/16 in OD
 Domestic or Import Domestic
 End Style Quick Connect Plug x Hose Barb
 Length 1/15/2016 in
 Manufacturer Part Number DCP2144
 Material Steel
 Nominal Size 3/8 x 1/4 in
 Pressure Rating 300 psi
 Temperature Rating -40 to 250 deg F
 Type Air Chief Industrial

Features

▪ Air chief industrial couplers are the popular industrial design and will interchange with many other makes
▪ For air service only
▪ Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination
▪ Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death

Resources

 Catalog
 Catalog Page
 Product Data Sheet
