Viega

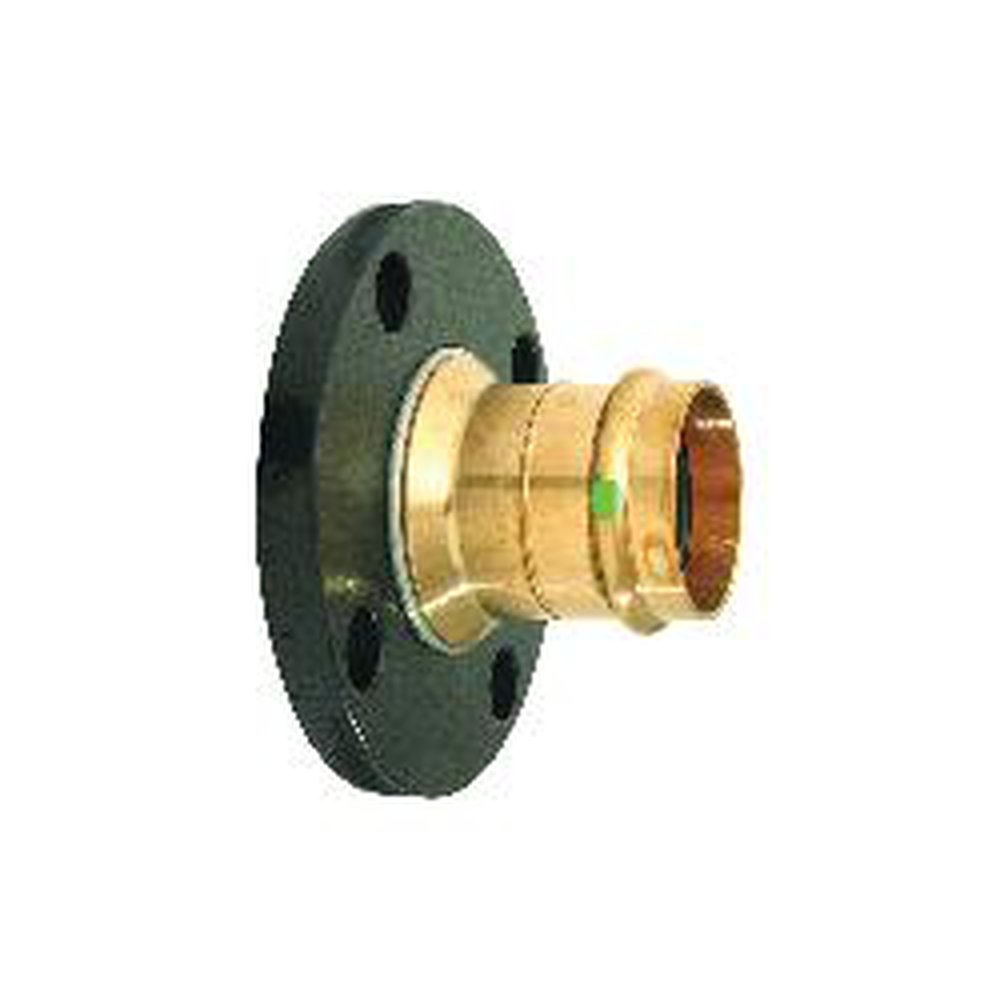

  • 79695 2 PROPRESS BRONZE ADAPTER FLANGE 4 BOLT ZERO LEAD PROPXFLG EPDM SEAL
  • 79695 2 PROPRESS BRONZE ADAPTER FLANGE 4 BOLT ZERO LEAD PROPXFLG EPDM SEAL

Description: ProPress®, 79695, Fitting, 2-Piece, Series: ProPress, 2 x 4 in Nominal, Press Connection, 200 psi Pressure, 0 to 250 deg F, 3.66 in Length Through Hub, Bronze, Import

Manufacturer PN: 79695

UPC:  69151479695

Forberg Smith PN: 3000925

Invoice Description:

79695 2 PROPRESS BRONZE ADAPTER FLANGE 4 BOLT ZERO LEAD PROPXFLG EPDM SEAL


SPEC SHEET

How Can We Make This Page Better?

ProPress® 79695 ProPress 2-Piece Fitting, 2 x 4 in Nominal, Bronze, Press Connection, Import

Log In for Pricing and Availability




Description

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.
ProPress®, 79695, Fitting, 2-Piece, Series: ProPress, 2 x 4 in Nominal, Press Connection, 200 psi Pressure, 0 to 250 deg F, 3.66 in Length Through Hub, Bronze, Import

Specifications

 Application Potable Water Systems, Hot and Cold Water Systems, Heating Systems, Gas Systems, Fire Protection Systems and Solar Systems
 Brand Name ProPress
 Dimensions 3.66 in L
 Domestic or Import Import
 End Style Press x Bolt Pattern
 Manufacturer Part Number 79695
 Material Bronze
 Nominal Size 2 x 4 in
 PART NUMBER KEYWORDS 79695 ; 691514796956 ; 69151479695 ; 30691514796957
 Pressure Rating 200 psi
 Standards/Approvals ABS Listed|ASTM B88|CSA MSE-13|FM 1920|IAPMO PS117|ICC LC 1002|NSF 61-G|UL 213
 Temperature Rating 0 to 250 deg F
 Type 2-Piece

Features

▪ Consistent professional appearance
▪ ASTM B88 tubing
▪ Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
▪ Reliable- achieve a consistent, strong, reliable, watertight seal
▪ Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
▪ Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
▪ Requires less equipment
▪ Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
▪ Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
▪ Viega smart Connect® feature is available on all of our fittings and most of our valves
▪ Permanent connection
