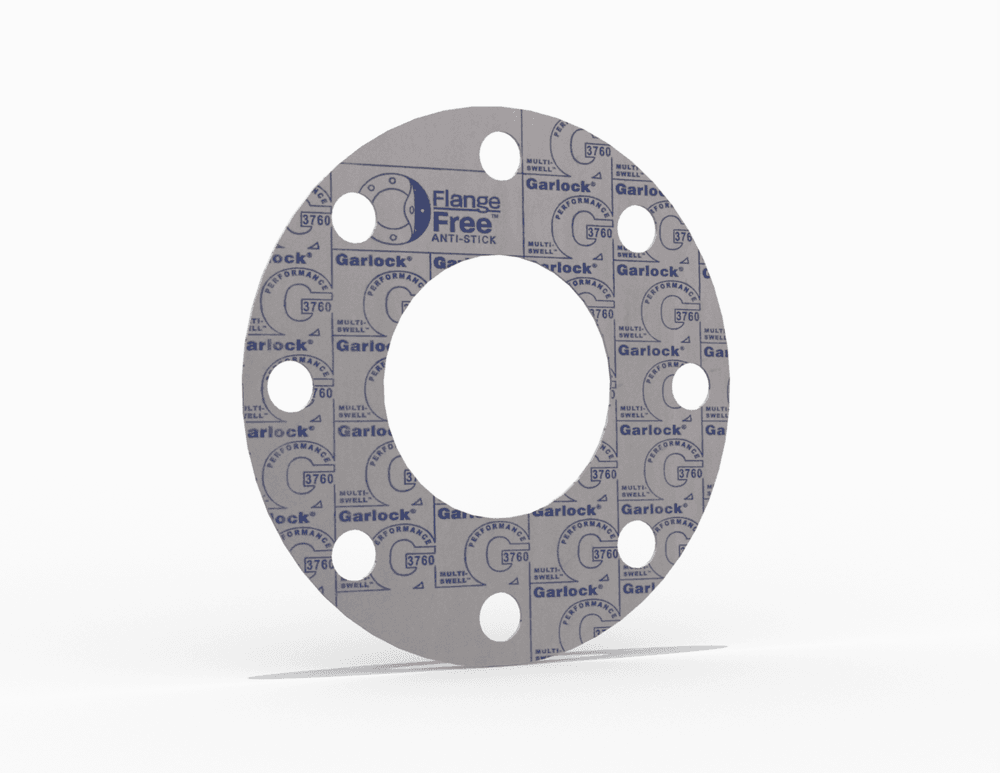

8 3760 150 LB 1/8 FF GSKT GARLOCK 37760-5108

Mouse over image to zoom, click to enlarge

Manufacturer PN: 37760-5108

Forberg Smith PN: 3739105

Invoice Description:

8 3760 150 LB 1/8 FF GSKT GARLOCK 37760-5108

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

8 3760 150 LB 1/8 FF GSKT GARLOCK 37760-5108

Price:  $94.06 / ea
Price not maintained - Will need to be verified


Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Specifications

 Bolt Circle Diameter 11-3/4 in
 Bolt Hole Quantity 8
 Brand Name Garlock
 Color Blue/Off-White
 Flange Standards Pressure Class ASME B16.5 Class 150
 Gasket Type Full Face
 Inside Diameter 8-5/8 in
 Max Temperature 400 F
 Min Temperature -100 F
 Nominal Pipe Size 8 in
 Pressure Max 500 psi
 Primary Nominal Thickness 1/8 in

Resources

 Product Data Sheet
