Asco Valves & Instruments

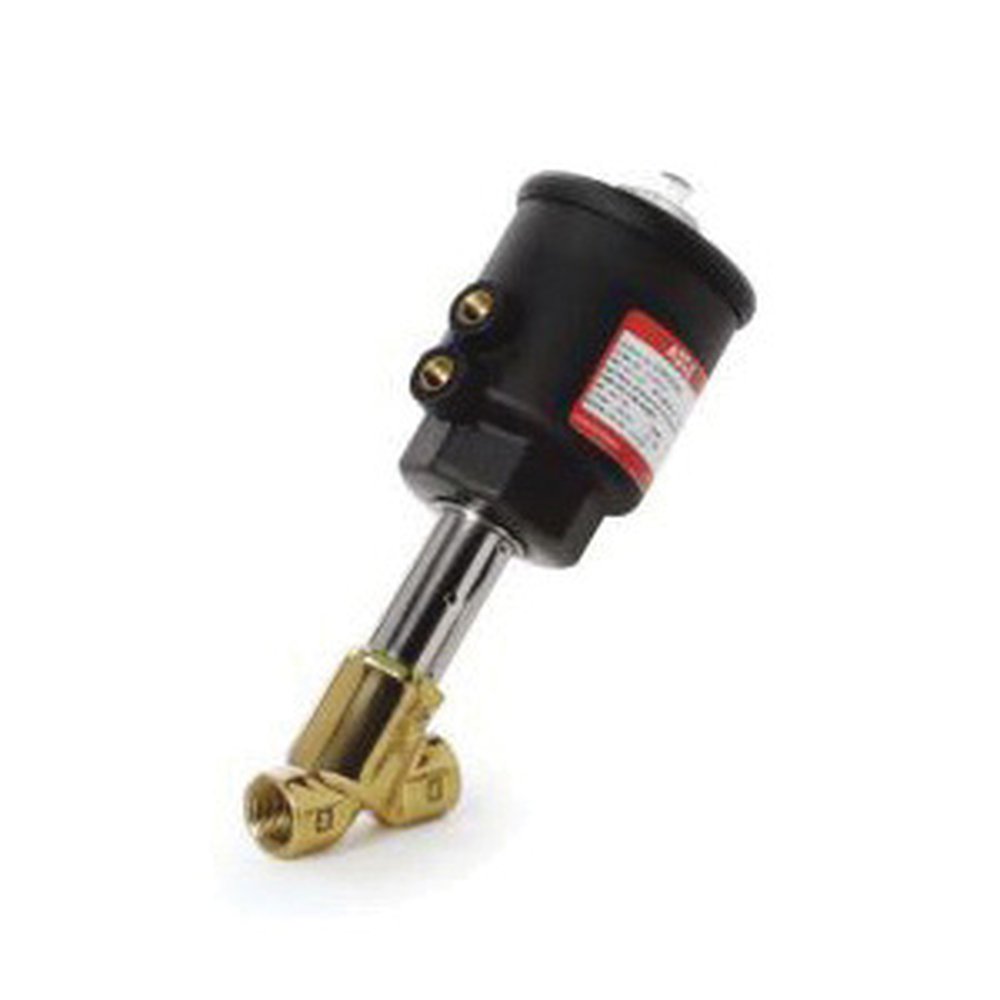

8290A016 ASCO 1-1/4 BRZ 2-WAY NC CV 32 63MM HEAD ASCO ANGLE BODY PISTON VALVE

Mouse over image to zoom, click to enlarge

Description: Asco Multi-Purpose Valve, Angle Body, Series: 8290, 1-1/4 in Nominal, NPT, 15 to 140 deg F, 32 Cv On-Off/24 Cv Prop, Media: Air/Hot Water/Steam, 1-1/4 in Orifice, Pilot Operated Actuator, 4.33 in Inlet to Outlet Length, 8.03 in Top to Inlet Center, Bronze Body, 431 Stainless Steel Trim, PTFE/FKM/PTFE, 8.54 in W x 9.01 in H

Manufacturer PN: 8290A016

Forberg Smith PN: 3044003

Invoice Description:

8290A016 ASCO 1-1/4 BRZ 2-WAY NC CV 32 63MM HEAD ASCO ANGLE BODY PISTON VALVE

UNSPSC: 40141600


SPEC SHEET

▸ See All in ASCO Angle Body Piston Valves


How Can We Make This Page Better?

Asco 8290A016 Angle Body Multi-Purpose Valve, 1-1/4 in Nominal, NPT End Style, Bronze Body

Price:  $587.00 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

The 8290 Series consists of 2-way direct acting valves available in normally closed or normally open constructions. Built for demanding applications, these valves come in a straight-through body design made of bronze or stainless steel. There are many optional features including visual/electrical position indicator or a stroke limiter.
Asco Multi-Purpose Valve, Angle Body, Series: 8290, 1-1/4 in Nominal, NPT, 15 to 140 deg F, 32 Cv On-Off/24 Cv Prop, Media: Air/Hot Water/Steam, 1-1/4 in Orifice, Pilot Operated Actuator, 4.33 in Inlet to Outlet Length, 8.03 in Top to Inlet Center, Bronze Body, 431 Stainless Steel Trim, PTFE/FKM/PTFE, 8.54 in W x 9.01 in H

Specifications

 Actuator Type Pilot Operated
 Application General Service (Air, Inert Gas, Water, Oil, Light Slurries) Applications
 Body Material Bronze
 Brand Name Asco
 Dimensions 8.54 in W x 9.01 in H
 End Style NPT
 Flow Rate 32 Cv On-Off/24 Cv Prop
 Inlet to Outlet Length 4.33 in
 Manufacturer Part Number 8290A016
 Nominal Size 1/1/2004 in
 Orifice Size 1/1/2004 in
 Series 8290
 Softgoods Material PTFE/FKM/PTFE
 Temperature Rating 15 to 140 deg F
 Top to Inlet Center 8.03 in
 Trim Material 431 Stainless Steel
 Type Angle Body

Features

▪ PTFE chevron stuffing box seal/FKM wiper seal/PTFE disc seal

Resources

 Product Data Sheet
