Viega

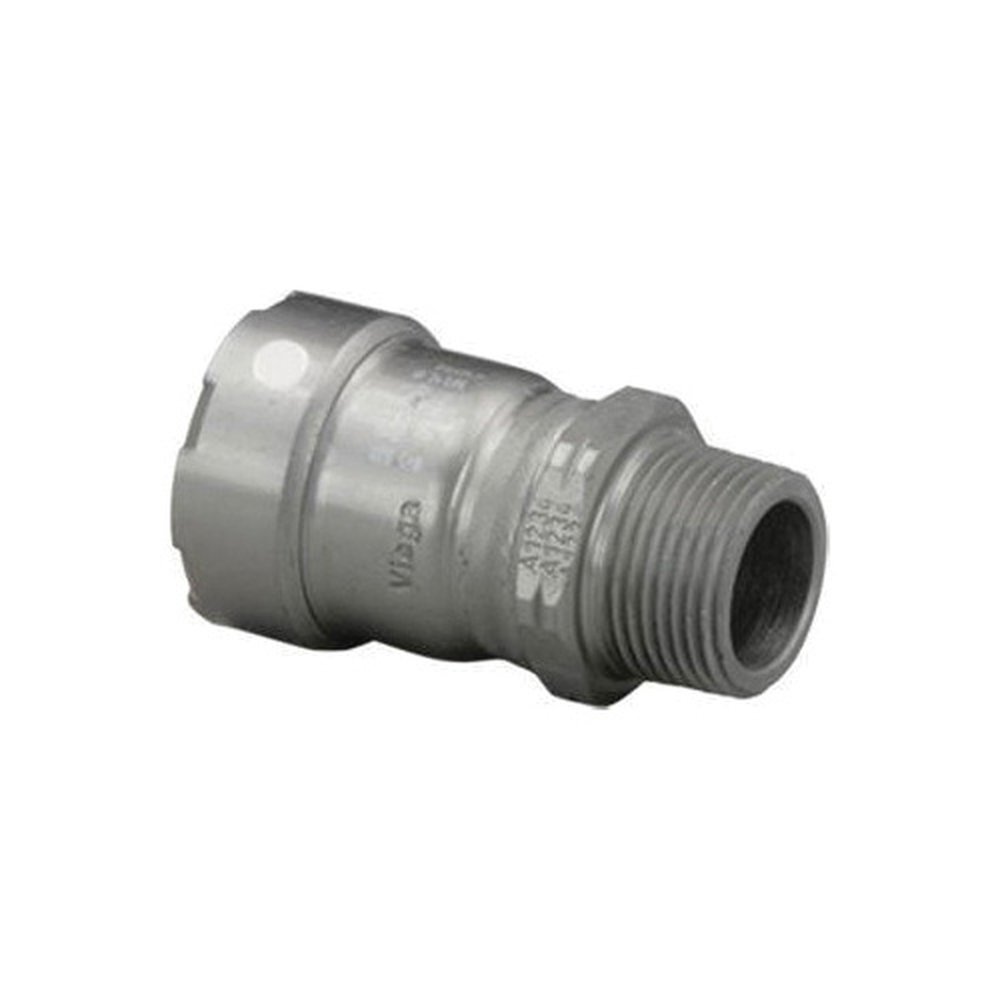

84270 2 MEGAPRESS CS MALE ADAPTER PROPXMIP FKM SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress® Adapter, Lead Free, Series: Model 5911, Fitting/Connector Type: Adapter, 2 in Nominal, Press x MNPT, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 3.92 in L, Import

Manufacturer PN: 84270

UPC:  69151484270

Forberg Smith PN: 4186689

Invoice Description:

84270 2 MEGAPRESS CS MALE ADAPTER PROPXMIP FKM SEAL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 84270 Model 5911 Adapter, 2 in Nominal, Press x MNPT End Style, Carbon Steel, Import

Price:  $120.91 / ea


Availability: 1 ea  i


Quantity  ea Add to Cart

Description

MegaPress® FKM is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air, and fire sprinkler applications. MegaPress FKM fittings in sizes from 1/2 to 4 in are offered in configurations including: elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, unions, caps, and flanges.
MegaPress® Adapter, Lead Free, Series: Model 5911, Fitting/Connector Type: Adapter, 2 in Nominal, Press x MNPT, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 3.92 in L, Import

Specifications

 Application For use in chilled water, hydronic heating, compressed air and fire sprinkler applications and ASTM SCH 5 to SCH 40 carbon steel pipe
 Brand Name MegaPress®
 Dimensions 3.92 in L
 Domestic or Import Import
 End Style Press x MNPT
 Finish Nickel Plated/Zinc Plated
 Fitting Type Adapter
 Includes FKM Sealing Element
 Manufacturer Part Number 84270
 Material Carbon Steel
 Nominal Size 2 in
 Pressure Rating 200 psi
 Series Model 5911
 Standards/Approvals ASME B31.1/B31.3/B31.9|ABS Approved|CRN #OA14541.5|DNV Listed|FM Approved|GL Listed|International Plumbing Code|International Mechanical Code|LR Listed|NFPA 54/58|UL 213|Uniform Plumbing Code|Uniform Mechanical Code|UL Listed
 Temperature Rating 14 to 284 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
