Viega

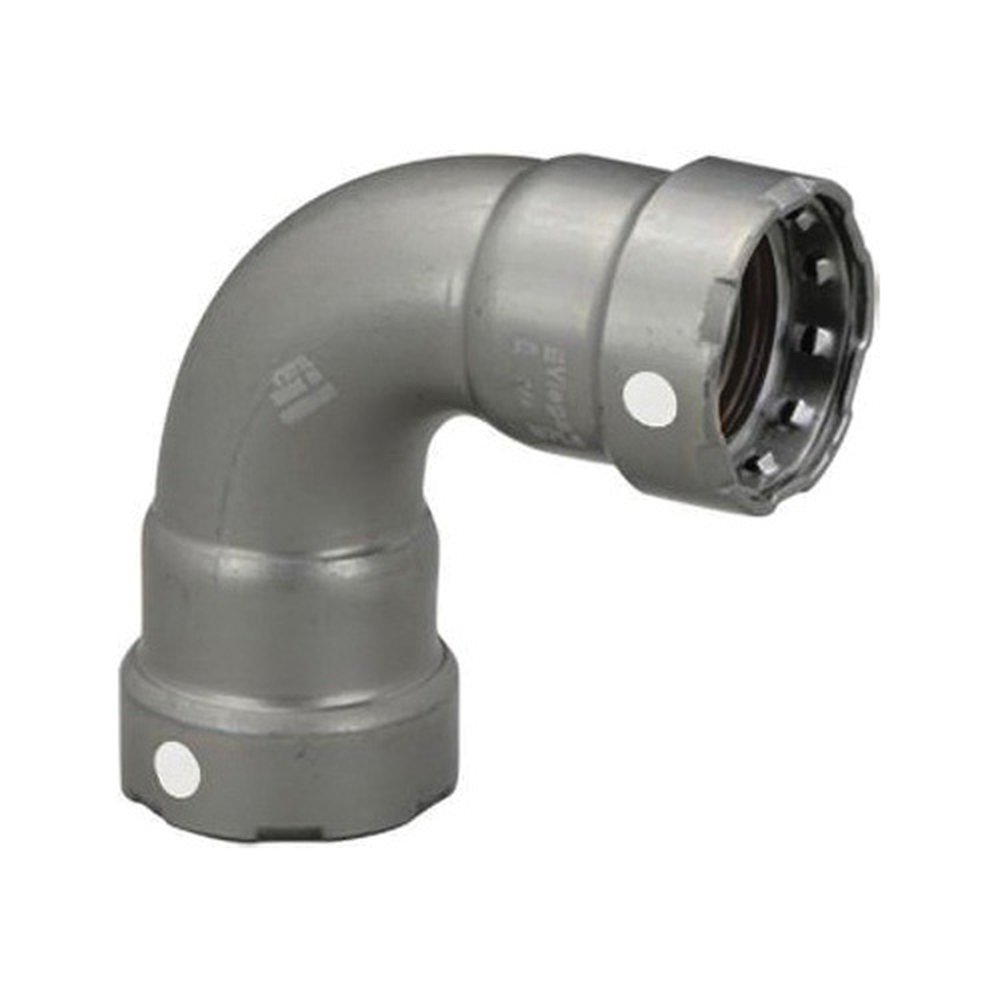

84305 1/2 MEGAPRESS CS 90 ELBOW FKM SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress® Elbow, Series: Model 5916, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 2.24 in L, Import

Manufacturer PN: 84305

UPC:  69151484305

Forberg Smith PN: 4186696

Invoice Description:

84305 1/2 MEGAPRESS CS 90 ELBOW FKM SEAL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 84305 Model 5916 Elbow, 1/2 in Nominal, Press End Style, Carbon Steel, Import

Price:  $41.67 / ea


Availability: 2 ea  i


Quantity  ea Add to Cart

Description

MegaPress® FKM is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air, and fire sprinkler applications. MegaPress FKM fittings in sizes from 1/2 to 4 in are offered in configurations including: elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, unions, caps, and flanges.
MegaPress® Elbow, Series: Model 5916, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 2.24 in L, Import

Specifications

 Application For use with ASTM SCH 5 to SCH 40 carbon steel pipe and fire protection applications
 Brand Name MegaPress®
 Dimensions 2.24 in L
 Domestic or Import Import
 End Style Press
 Finish Nickel Plated/Zinc Plated
 Fitting Type 90 deg Elbow
 Includes FKM Sealing Element
 Manufacturer Part Number 84305
 Material Carbon Steel
 Nominal Size 2-Jan in
 Pressure Rating 200 psi
 Series Model 5916
 Standards/Approvals ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|FM Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA|UL/ANSI 213|ULC/ANSI ORD-C213|UL Listed
 Temperature Rating 14 to 284 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
▪ 316 stainless steel valve/carbon steel press ends
▪ EPDM sealing element, PTFE stem seals

Time Zone



Substitute Products:

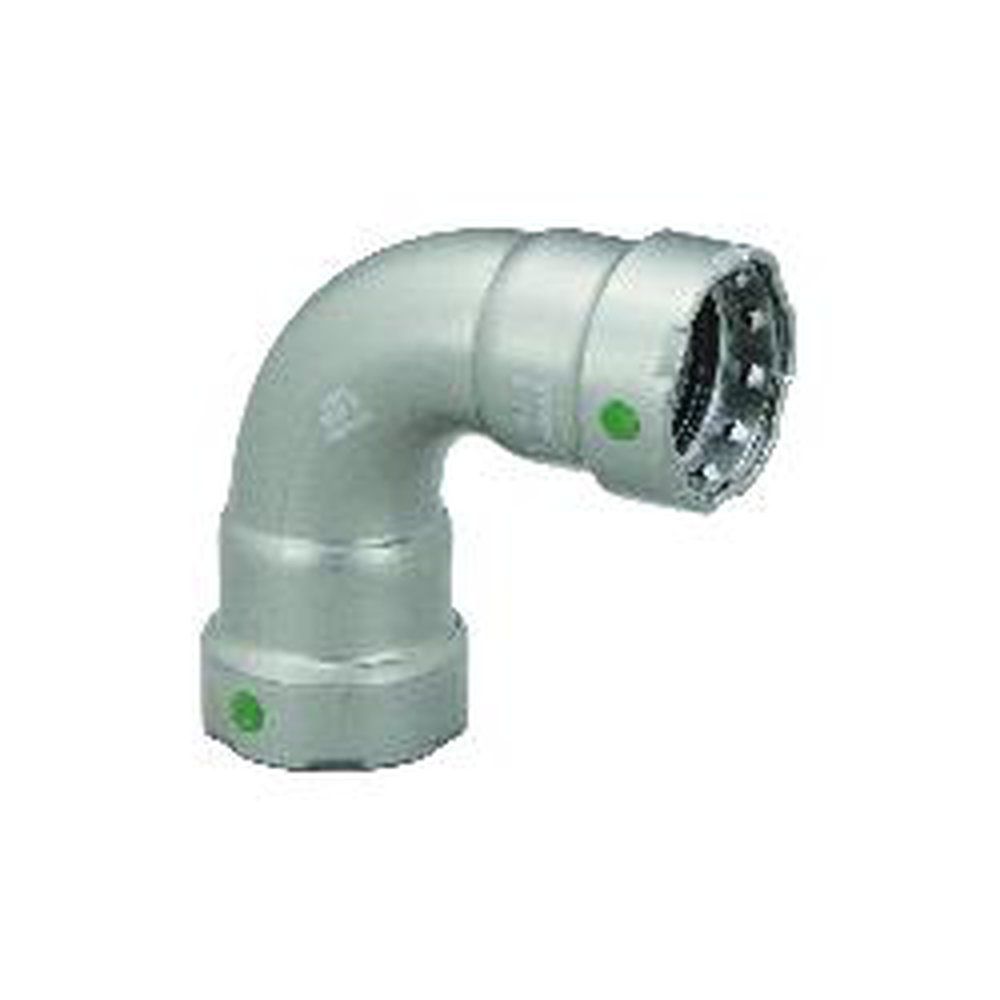

  • 25200 1/2 MEGAPRESS 90 ELBOW CS 25200 1/2

    25200 1/2 MEGAPRESS 90 ELBOW CS EPDM SEAL

    Your Price:  $30.48 EA Availability: 36 ea
