Viega

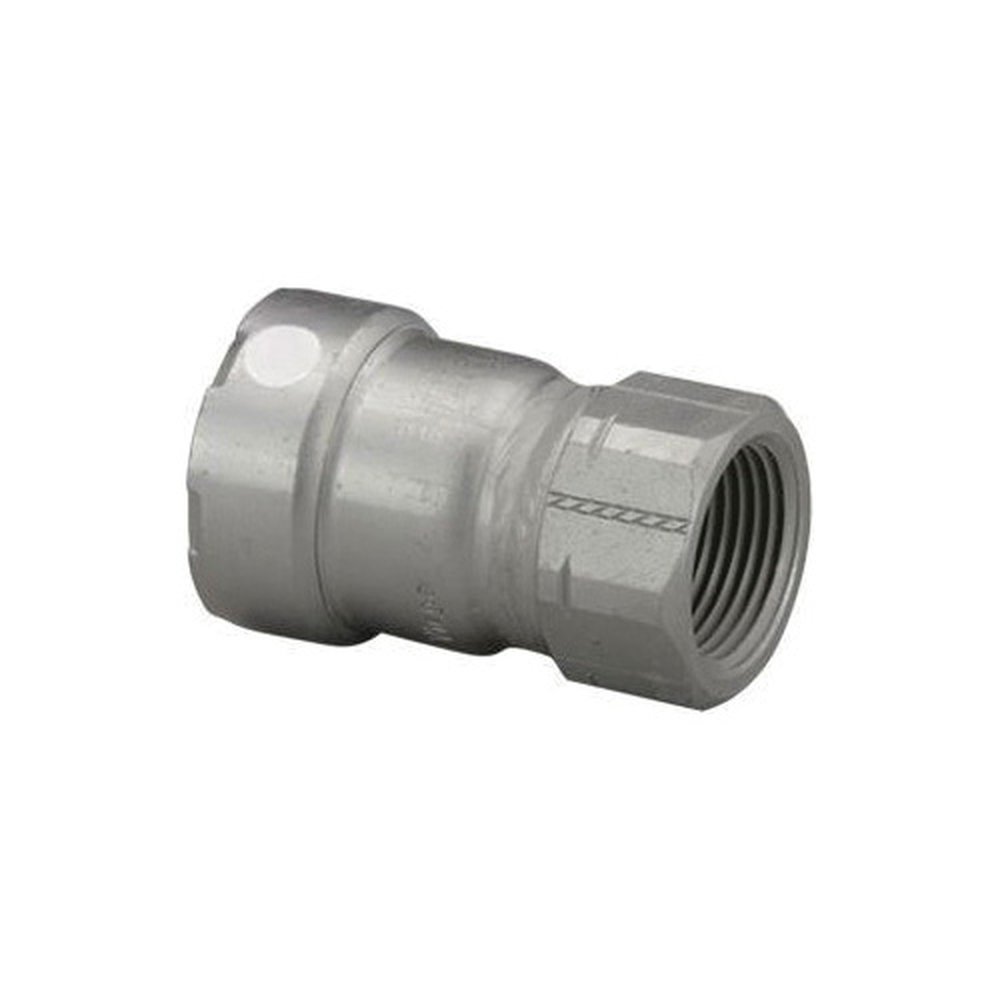

84755 1X1/2 MEGAPRESS CS FEMALE ADAPTER PROPXFIP FKM SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress® Adapter, Series: Model 5912, Fitting/Connector Type: Adapter, 1 x 1/2 in Nominal, Press x FNPT, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 2.91 in L, Import

Manufacturer PN: 84755

UPC:  69151484755

Forberg Smith PN: 4186743

Invoice Description:

84755 1X1/2 MEGAPRESS CS FEMALE ADAPTER PROPXFIP FKM SEAL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 84755 Model 5912 Adapter, 1 x 1/2 in Nominal, Press x FNPT End Style, Carbon Steel, Import

Price:  $67.59 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

MegaPress® FKM is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air, and fire sprinkler applications. MegaPress FKM fittings in sizes from 1/2 to 4 in are offered in configurations including: elbows, couplings, no-stop couplings, reducers, tees, reducing tees, adapters, unions, caps, and flanges.
MegaPress® Adapter, Series: Model 5912, Fitting/Connector Type: Adapter, 1 x 1/2 in Nominal, Press x FNPT, 200 psi, 14 to 284 deg F, Carbon Steel, Nickel Plated/Zinc Plated, 2.91 in L, Import

Specifications

 Application For use with ASTM SCH 5 to SCH 40 carbon steel pipe and fire protection applications
 Brand Name MegaPress®
 Dimensions 2.91 in L
 Domestic or Import Import
 End Style Press x FNPT
 Finish Nickel Plated/Zinc Plated
 Fitting Type Adapter
 Includes FKM Sealing Element
 Manufacturer Part Number 84755
 Material Carbon Steel
 Nominal Size 1 x 1/2 in
 Pressure Rating 200 psi
 Series Model 5912
 Standards/Approvals ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|FM Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA|UL/ANSI 213|ULC/ANSI ORD-C213|UL Listed
 Temperature Rating 14 to 284 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
