Viega

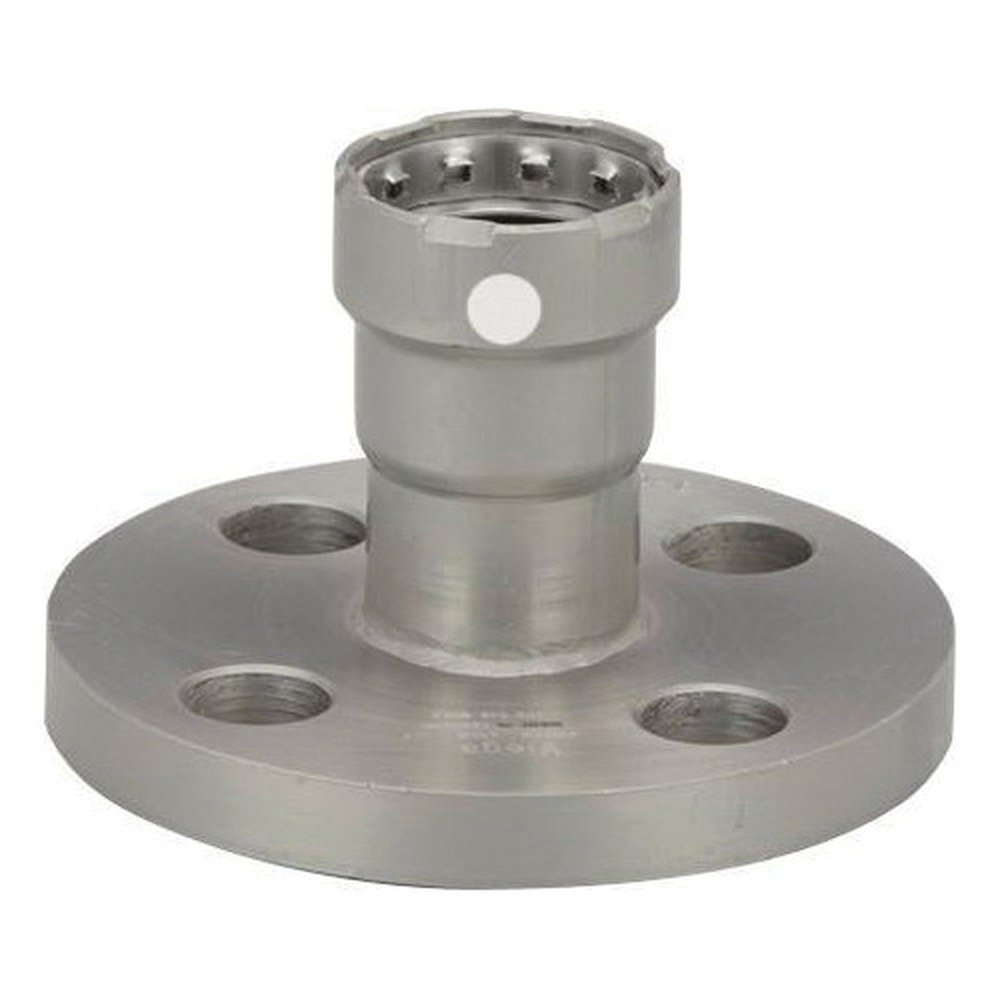

84865 1-1/2 MEGAPRESS CS FLANGE FKM SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress® Flange, Lead Free, Series: Model 5959.5, Fitting/Connector Type: Flange, 1-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, 4.92 in Dia x 3.93 in L, Import

Manufacturer PN: 84865

UPC:  69151484865

Forberg Smith PN: 4186765

Invoice Description:

84865 1-1/2 MEGAPRESS CS FLANGE FKM SEAL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 84865 Model 5959.5 Flange, 1-1/2 in Nominal, Press End Style, Carbon Steel, Import

Price:  $271.27 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

Viega MegaPress® FKM is the first and only clean, secure and efficient choice for joining 1/2 to 4 in carbon steel pipe with an FKM sealing element (formerly known as MegaPress® XL for sizes 2-1/2 to 4 in). Meticulously engineered, it is suitable for renovations, repairs or installation of new carbon steel pipe systems. Viega MegaPress® FKM can even be installed on noncombustible/flammable lines that are not completely shut down, eliminating the need to fully drain a system, and shortening repair and installation time. It is approved for use in hydronic heating, compressed air, fire protection, cooling water, marine applications and many more. Not approved for use with potable water.
MegaPress® Flange, Lead Free, Series: Model 5959.5, Fitting/Connector Type: Flange, 1-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, 4.92 in Dia x 3.93 in L, Import

Specifications

 Application For use with SCH 5 to SCH 40 stainless steel pipe and fire protection application
 Brand Name MegaPress®
 Dimensions 4.92 in Dia x 3.93 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Flange
 Includes FKM Sealing Element
 Manufacturer Part Number 84865
 Material Carbon Steel
 Nominal Size 1/1/2002 in
 Pressure Rating 200 psi
 Series Model 5959.5
 Standards/Approvals ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|FM Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA Approved|UL/ANSI 213|ULC/ANSI ORD-C213|UL Listed
 Temperature Rating 14 to 284 deg F

Features

▪ Approved for more applications than any other carbon steel pipe press fitting system
▪ Corrosion resistant zinc nickel coating
▪ Nearly 150 engineered fitting configurations from 2-1/2 to 4 in
▪ Approved for underground applications, in accordance with code and local AHJ
▪ The same hanger and support requirements as threaded systems
▪ Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
