Viega

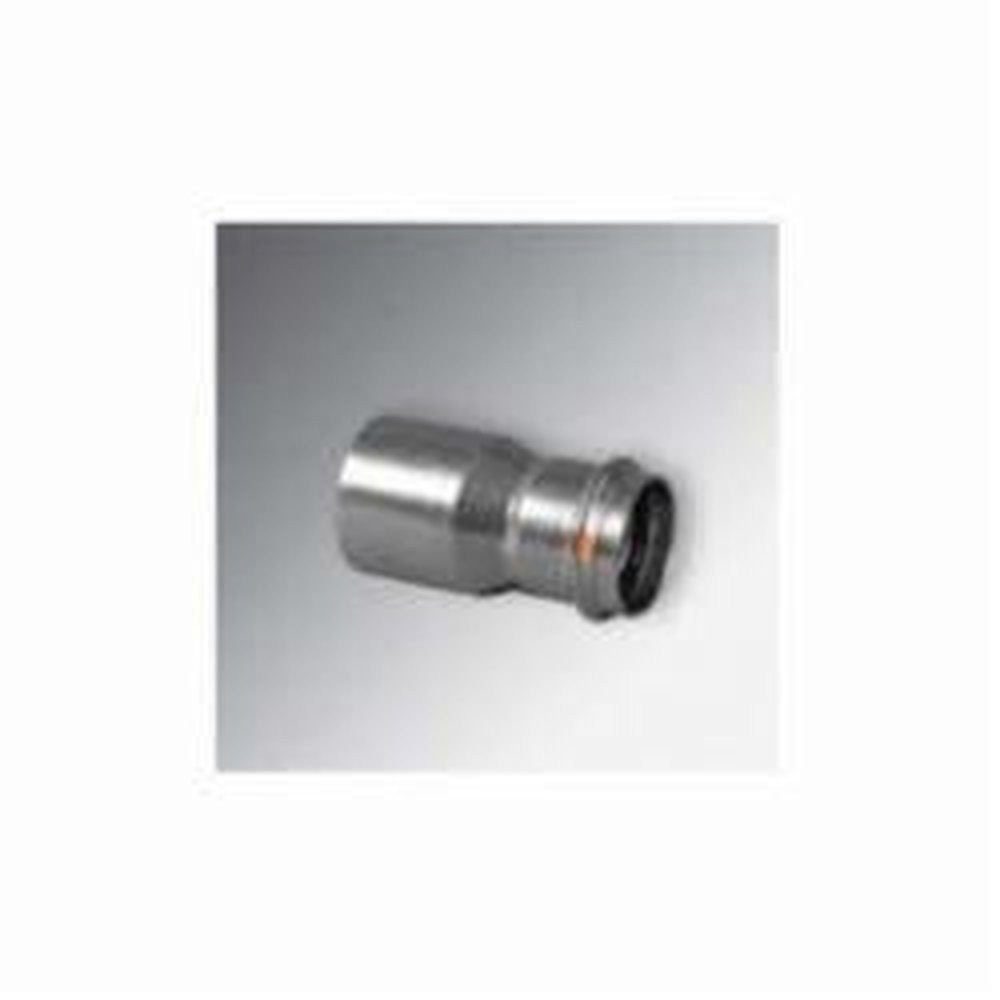

85160 3/4X1/2 PROPRESS 01151 T304 SS REDUCER FTGXPROP **DISCONTINUED**

Mouse over image to zoom, click to enlarge

Description: ProPress® Tube Reducer, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, Fitting x Press, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 2.283 in L, Import

Manufacturer PN: 85160

UPC:  69151485160

Forberg Smith PN: 3059449

Invoice Description:

85160 3/4X1/2 PROPRESS 01151 T304 SS REDUCER FTGXPROP **DISCONTINUED**

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

ProPress® 85160 Tube Reducer, 3/4 x 1/2 in, Fitting x Press, 304 Stainless Steel, Import

Price:  $61.26 / ea


Availability: 20 ea  i


Quantity  ea Add to Cart

Description

ProPress® Stainless is the total system solution where optimum corrosion protection or chemical resistance is required. All fittings offer Viega's patented Smart Connect feature, the quick and easy way to identify unpressed connections.
ProPress® Tube Reducer, Fitting/Connector Type: Reducer, 3/4 x 1/2 in Nominal, Fitting x Press, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 2.283 in L, Import

Specifications

 Brand Name ProPress®
 Dimensions 2.283 in L
 Domestic or Import Import
 End Style Fitting x Press
 Fitting Type Reducer
 Includes EPDM Sealing Element
 Manufacturer Part Number 85160
 Material 304 Stainless Steel
 Nominal Size 3/4 x 1/2 in
 Pressure Rating 200 psi
 Standards/Approvals ASME B31.1/B31.3/ B31.9
 Temperature Rating 0 to 250 deg F

Features

▪ Connection are made in four to seven seconds
▪ Same tool used on all Viega press systems
▪ Ensures a consistent, strong, reliable seal for liquids or gases
▪ Reduces systems installation time and job site clean up
▪ Eliminates costly downtime
▪ Reduced maintenance problems
▪ No hot work, burn permits or fire watches needed
▪ Model 0115.1
