Dixon Valve & Coupling

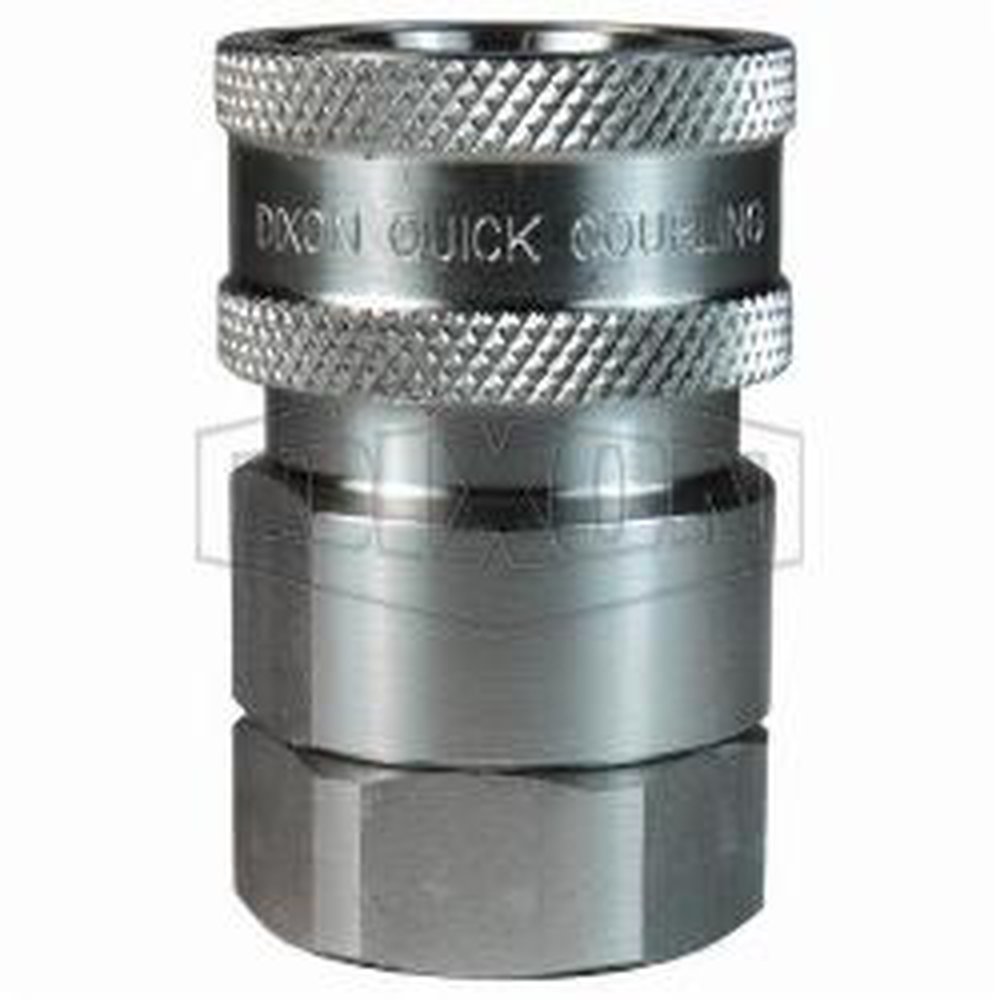

8VF8-SS DIXON 1IN COUPLER

Mouse over image to zoom, click to enlarge

  • 8VF8-SS DIXON 1IN COUPLER
  • 8VF8-SS DIXON 1IN COUPLER

Description: Snap-Tite by Dixon® Valve Coupling, Interchange, Series: H/IH, 1-11-1/2 Nominal, FNPT, 1-7/8 in Hex, 2.7 in Length, 2000 psi, -40 to 250 deg F, 316 Stainless Steel, 2.06 in OD

Manufacturer PN: 8VF8-SS

UPC:  69746447549

Forberg Smith PN: 3795032

Invoice Description:

8VF8-SS DIXON 1IN COUPLER


How Can We Make This Page Better?

Snap-Tite by Dixon® 8VF8-SS H/IH Interchange Valve Coupling, 1-11-1/2 Nominal, FNPT, 316 Stainless Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Snap-Tite by Dixon® Valve Coupling, Interchange, Series: H/IH, 1-11-1/2 Nominal, FNPT, 1-7/8 in Hex, 2.7 in Length, 2000 psi, -40 to 250 deg F, 316 Stainless Steel, 2.06 in OD

Specifications

 Brand Name Snap-Tite by Dixon®
 Dimensions 2.06 in OD
 End Style FNPT
 Hex Size 1-7/8 in
 Length 2.7 in
 Manufacturer Part Number 8VF8-SS
 Material 316 Stainless Steel
 Nominal Size 1-11-1/2
 PART NUMBER KEYWORDS 8VF8-SS ; 8VF8SS
 Pressure Rating 2000 psi
 Series H/IH
 Standards/Approvals RoHS Compliant
 Temperature Rating -40 to 250 deg F
 Type Interchange

Features

▪ Machined components are manufactured using solid bar stock
▪ Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
▪ Steel componentry is plated using ROHS compliant trivalent chrome
▪ Steel coupler sleeves are hardened to resist deformation and maximize service life
▪ Tubular 'TV' valves are constructed from steel bar stock and are designed for optimum performance in pneumatic applications
▪ Nitrile (Buna-N) seals are standard
▪ All couplers incorporate a PTFE anti-extrusion ring to protect the seal components from dynamic impulse damage
▪ Valve o-rings are retained by a unique seal-groove profile and are field replaceable
▪ 5000 psi burst pressure
