8B-53-LV DWYER-INSTR 8B-53-LV 1/8 DIN TEMP CONTROLL

Mouse over image to zoom, click to enlarge

Manufacturer PN: 8B-53-LV

Forberg Smith PN: 4587085

Invoice Description:

8B-53-LV DWYER-INSTR 8B-53-LV 1/8 DIN TEMP CONTROLL


How Can We Make This Page Better?

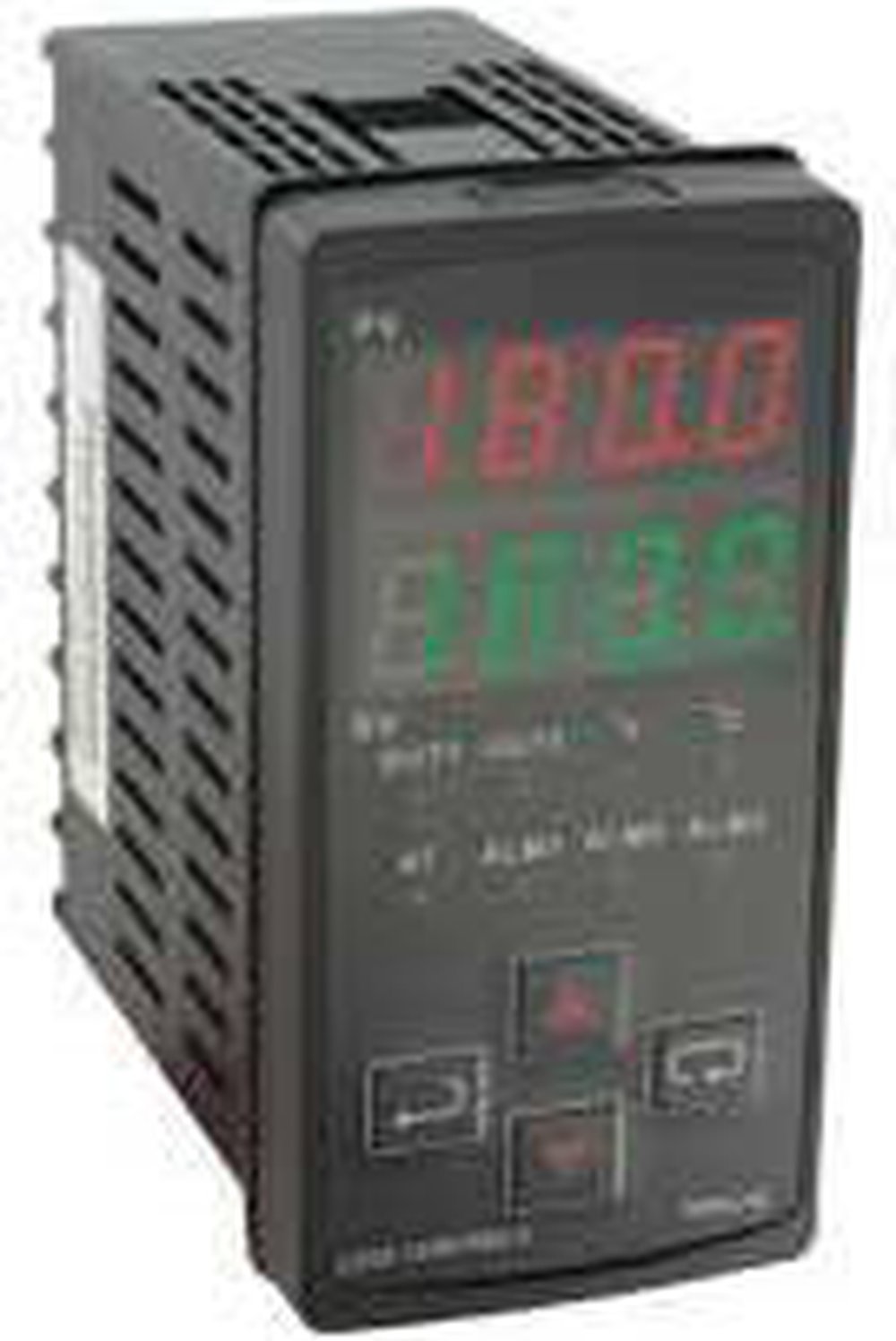

DWYER 8B-53-LV SERIES 8B 1/8 DIN TEMPERATURE/PROCESS CONTROLLER

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Series 8B 1/8 DIN Temperature/Process Controller offers versatility and reliability for temperature and process monitoring applications. Designed as a vertical mount 1/8 DIN controller, the Series 8B features dual outputs, universal input, and up to three additional alarm outputs. The second output can be configured as a third alarm output. Select the alarm type from 13 different preprogrammed alarm functions. Control methods include ON/OFF, PID, auto-tune or manual tune. PID control is supported with 64 ramp/soak control actions. RS-485 communication is standard on the Series 8B with up to 247 available addresses.
1/8 DIN temperature/process controller, (1) current output and (1) relay output, low voltage

Specifications

 Brand Name Dwyer
 Manufacturer PN 8B-53-LV
 Manufacturer Standard Lead-Time Availability: Call for Details*
 Mfr Cat L1 TEMPERATURE
 Mfr Cat L2 PROCESS CONTROLLERS
 Mfr Cat L3 8B-53-LV
 Series SERIES 8B 1/8 DIN TEMPERATURE/PROCESS CONTROLLER
