Viega

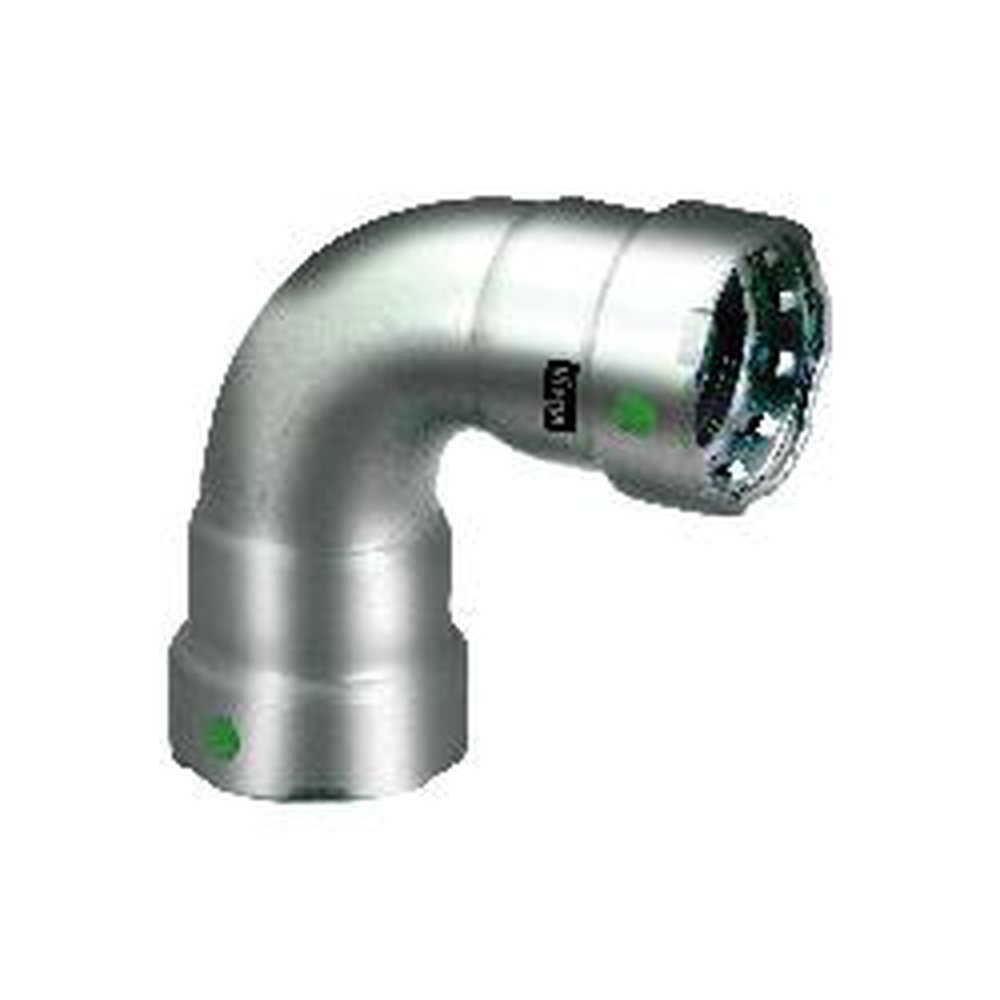

  • 90015 1 MEGAPRESS T316 SS 90 ELBOW EPDM SEAL
  • 90015 1 MEGAPRESS T316 SS 90 ELBOW EPDM SEAL

Description: MegaPress® Elbow, Fitting/Connector Type: 90 deg Elbow, 1 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, Import

Manufacturer PN: 90015

UPC:  69151490015

Forberg Smith PN: 3716945

Invoice Description:

90015 1 MEGAPRESS T316 SS 90 ELBOW EPDM SEAL

UNSPSC: 40183101


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 90015 90 deg Elbow, 1 in, Press, 316 Stainless Steel, Import

Price:  $183.52 / ea


Availability: 2 ea  i


Quantity  ea Add to Cart

Description

Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.
MegaPress® Elbow, Fitting/Connector Type: 90 deg Elbow, 1 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, Import

Specifications

 Application Commercial and Industrial
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Press
 Fitting Type 90 deg Elbow
 Includes EPDM Sealing Element
 Manufacturer Part Number 90015
 Material 316 Stainless Steel
 Nominal Size 1 in
 Pressure Rating 200 psi
 Standards/Approvals ASTM A312/A403|CRN 13492.5 A/B|IAPMO to IAPMO PS117|ICC-LC1002|TSSA/ASME B31.1/B31.3/B31.9|NSF/ANSI 61/372
 Temperature Rating 0 to 250 deg F

Features

▪ Makes secure press connections from 1/2 to 2 in less than seven seconds
▪ Compatible with existing press tools
▪ 316 stainless carries an NSF-16 potable water rating
▪ Patented Viega Smart Connect® makes secure connection in less than 7 sec
▪ Minimizes system downtime by allowing for wet connection
▪ Fast and easy to use
▪ No welding, grinding or heavy equipment needed
▪ Helps installers easily identify unpressed connections during pressure testing
▪ Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
▪ Wide range of fitting configurations
▪ Eliminate threading and welding
▪ No fire watches, hot work permits or gas freezing
