Viega

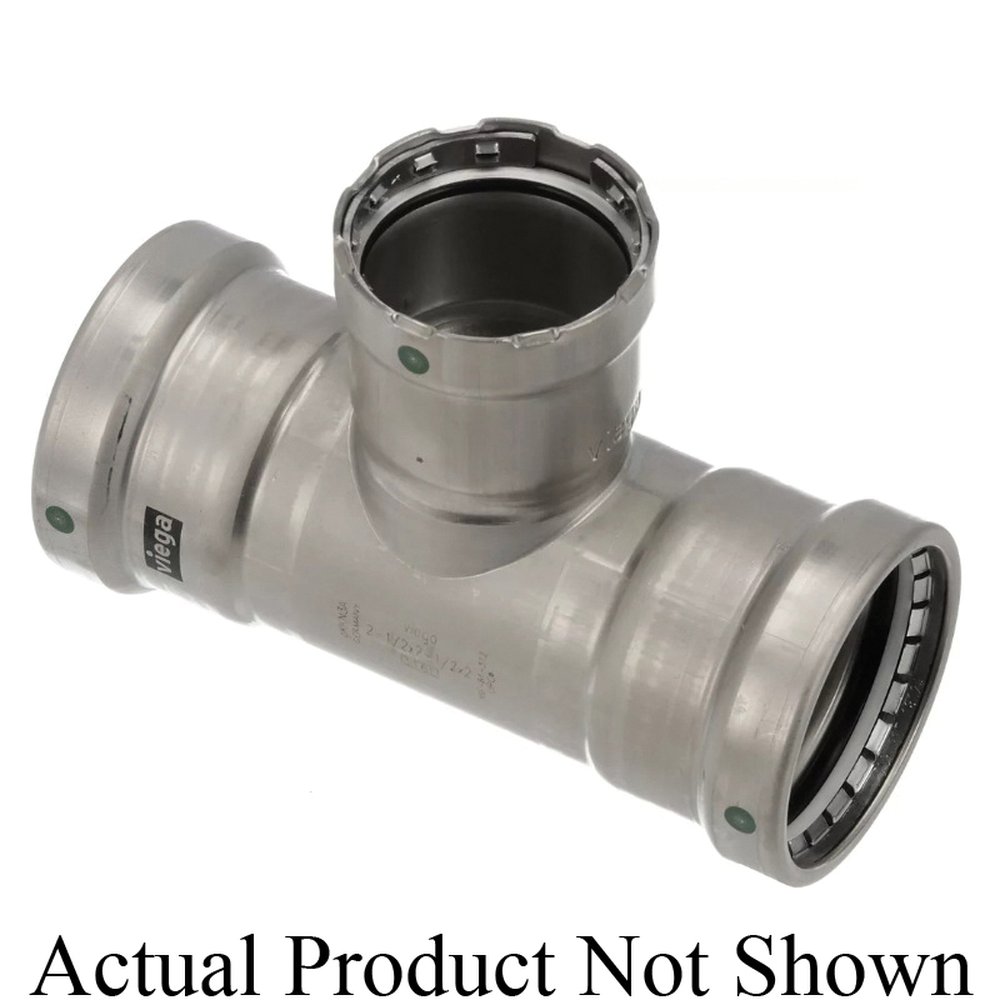

  • 90575 2-1/2X2-1/2X1-1/2 MEGAPRESS T316 SS TEE EPDM SEAL
  • 90575 2-1/2X2-1/2X1-1/2 MEGAPRESS T316 SS TEE EPDM SEAL

Description: MegaPress® Tee, Series: 5118XL, Fitting/Connector Type: Tee, 2-1/2 x 2-1/2 x 1-1/2 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, Import

Manufacturer PN: 90575

UPC:  69151490575

Forberg Smith PN: 4389945

Invoice Description:

90575 2-1/2X2-1/2X1-1/2 MEGAPRESS T316 SS TEE EPDM SEAL

UNSPSC: 40183102


How Can We Make This Page Better?

MegaPress® 90575 5118XL Tee, 2-1/2 x 2-1/2 x 1-1/2 in Nominal, Press End Style, 316 Stainless Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe and are ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to SCH 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to SCH 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, potable water, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
MegaPress® Tee, Series: 5118XL, Fitting/Connector Type: Tee, 2-1/2 x 2-1/2 x 1-1/2 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, Import

Specifications

 Application Acid Solution, Caustic Solution, Industrial Gas, Low Pressure Steam, Potable Water, Process Water (Non-Potable) and Vacuum Applications
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Press
 Fitting Type Tee
 Includes EPDM Sealing Element
 Manufacturer Part Number 90575
 Material 316 Stainless Steel
 Nominal Size 2-1/2 x 2-1/2 x 1-1/2 in
 PART NUMBER KEYWORDS 90575 ; ; 691514905754 ; 69151490575 ; 30691514905755
 Pressure Rating 200 psi
 Series 5118XL
 Standards/Approvals ABS Approved|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|IAPMO CPC/NSPB/UMC/UPC/PS-117|ICC IMC/IPC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|NSF/ANSI 61/372
 Temperature Rating 0 to 250 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
▪ 316 stainless carries an NSF 61 potable water rating
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or messy cutting oils
▪ Makes secure press connections from 1/2 in to 4 in seconds
▪ Compatible with existing press tools
▪ Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
▪ Smart Connect® technology
