Viega

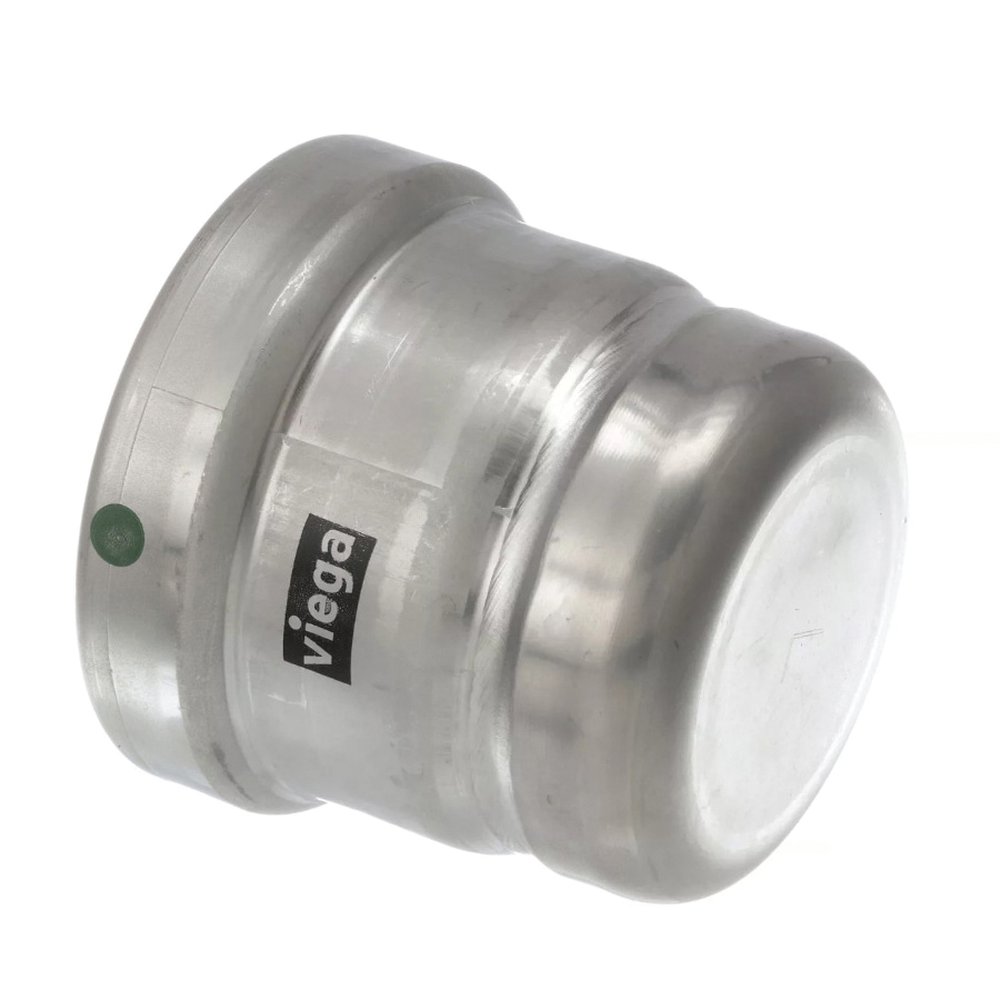

  • 90710 3 MEGAPRESS T316 SS CAP EPDM SEAL
  • 90710 3 MEGAPRESS T316 SS CAP EPDM SEAL

Description: MegaPress® Cap, Series: 5156.1XL, Fitting/Connector Type: Cap, 3 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.82 in L, Import

Manufacturer PN: 90710

UPC:  69151490710

Forberg Smith PN: 3912863

Invoice Description:

90710 3 MEGAPRESS T316 SS CAP EPDM SEAL

UNSPSC: 40183104



MegaPress® 90710 5156.1XL Cap, 3 in Nominal, Press End Style, 316 Stainless Steel, Import

Price:  $521.36 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe and are ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to SCH 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to SCH 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, potable water, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
MegaPress® Cap, Series: 5156.1XL, Fitting/Connector Type: Cap, 3 in Nominal, Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, 3.82 in L, Import

Specifications

 Application Acid Solution, Caustic Solution, Industrial Gas, Low Pressure Steam, Potable Water, Process Water (Non-Potable) and Vacuum Applications
 Brand Name MegaPress®
 Dimensions 3.82 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Cap
 Includes EPDM Sealing Element
 Manufacturer Part Number 90710
 Material 316 Stainless Steel
 Nominal Size 3 in
 Pressure Rating 200 psi
 Series 5156.1XL
 Standards/Approvals ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|IAPMO CPC/NSPB/UMC/UPC/PS-117|ICC IMC/IPC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|NSF/ANSI 61/372
 Temperature Rating 0 to 250 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
▪ 316 stainless carries an NSF 61 potable water rating
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or messy cutting oils
▪ Makes secure press connections from 1/2 in to 4 in seconds
▪ Compatible with existing press tools
▪ Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
▪ Smart Connect® technology
