Viega

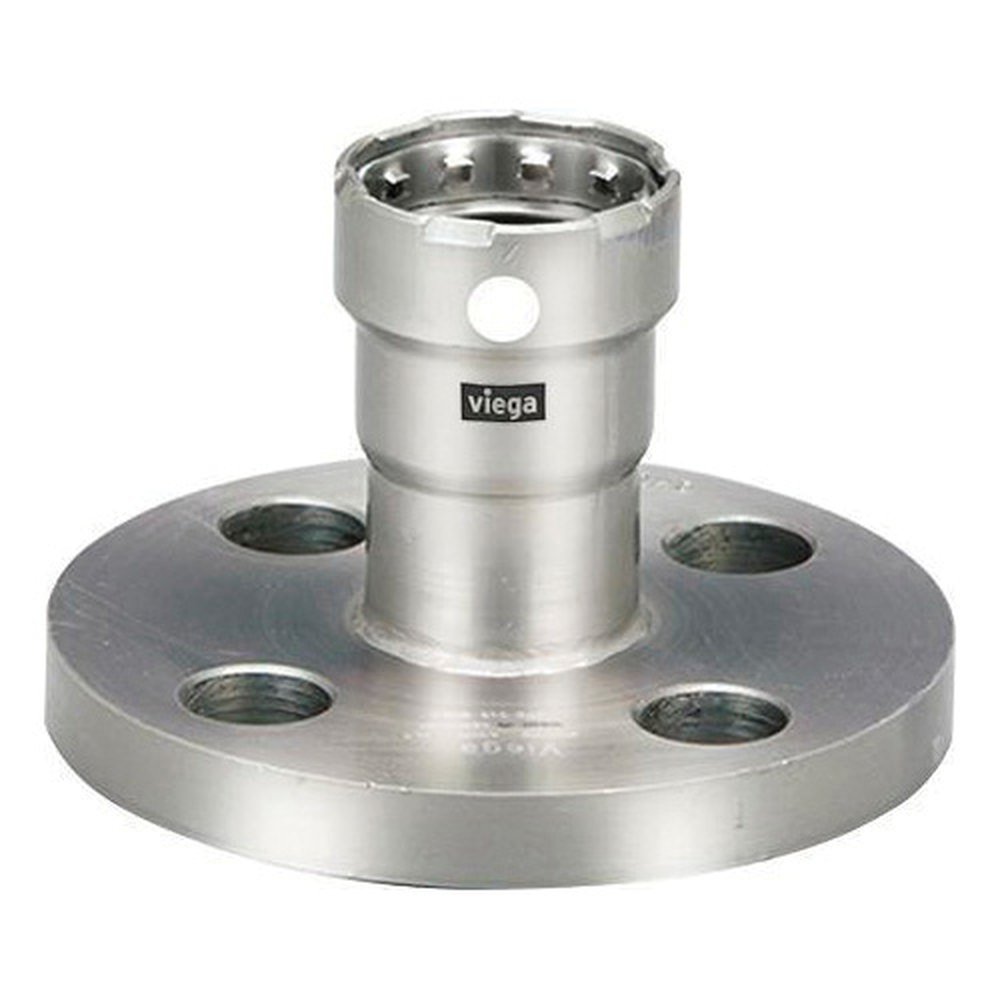

91180 3/4 MEGAPRESS T316 SS FLANGE FKM SEAL

Mouse over image to zoom, click to enlarge

Description: MegaPress®, 91180, Flange, Series: Model 6859, 3/4 in Nominal, 200 psi Pressure, 14 to 284 deg F, 316 Stainless Steel, 3.54 in Dia x 2.39 in L Dimensions, Import

Manufacturer PN: 91180

UPC:  69151491180

Forberg Smith PN: 4387166

Invoice Description:

91180 3/4 MEGAPRESS T316 SS FLANGE FKM SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 91180 Model 6859 Flange, 3/4 in Nominal, 316 Stainless Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega MegaPress® 316 FKM fittings are the industry's first stainless fittings for Schedule 5 to 40 piping systems. Save on labor cost and system downtime with press fittings in a wide variety of configurations, available in sizes 1/2 to 4 in. Viega MegaPress® 316 with an FKM sealing element is suitable for use with hydronic applications, compressed air, industrial gases, marine applications and more.
MegaPress®, 91180, Flange, Series: Model 6859, 3/4 in Nominal, 200 psi Pressure, 14 to 284 deg F, 316 Stainless Steel, 3.54 in Dia x 2.39 in L Dimensions, Import

Specifications

 Application For use with SCH 5 to SCH 40 stainless steel pipe
 Brand Name MegaPress®
 Dimensions 3.54 in Dia x 2.39 in L
 Domestic or Import Import
 End Style Press
 Includes FKM Sealing Element
 Manufacturer Part Number 91180
 Material 316 Stainless Steel
 Nominal Size 3/4 in
 PART NUMBER KEYWORDS 91180 ; 691514911809 ; 69151491180 ; 30691514911800
 Pressure Rating 200 psi
 Series Model 6859
 Standards/Approvals ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|FM Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA Approved|UL/ANSI 213|ULC/ANSI ORD-C213|UL Listed
 Temperature Rating 14 to 284 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator for sizes 2-1/2 to 4 in
▪ 316 stainless carries an NSF-61 potable water rating
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or gas freeing
▪ Makes secure press connections from 1/2 to 4 in seconds
▪ Compatible with existing press tools
