Viega

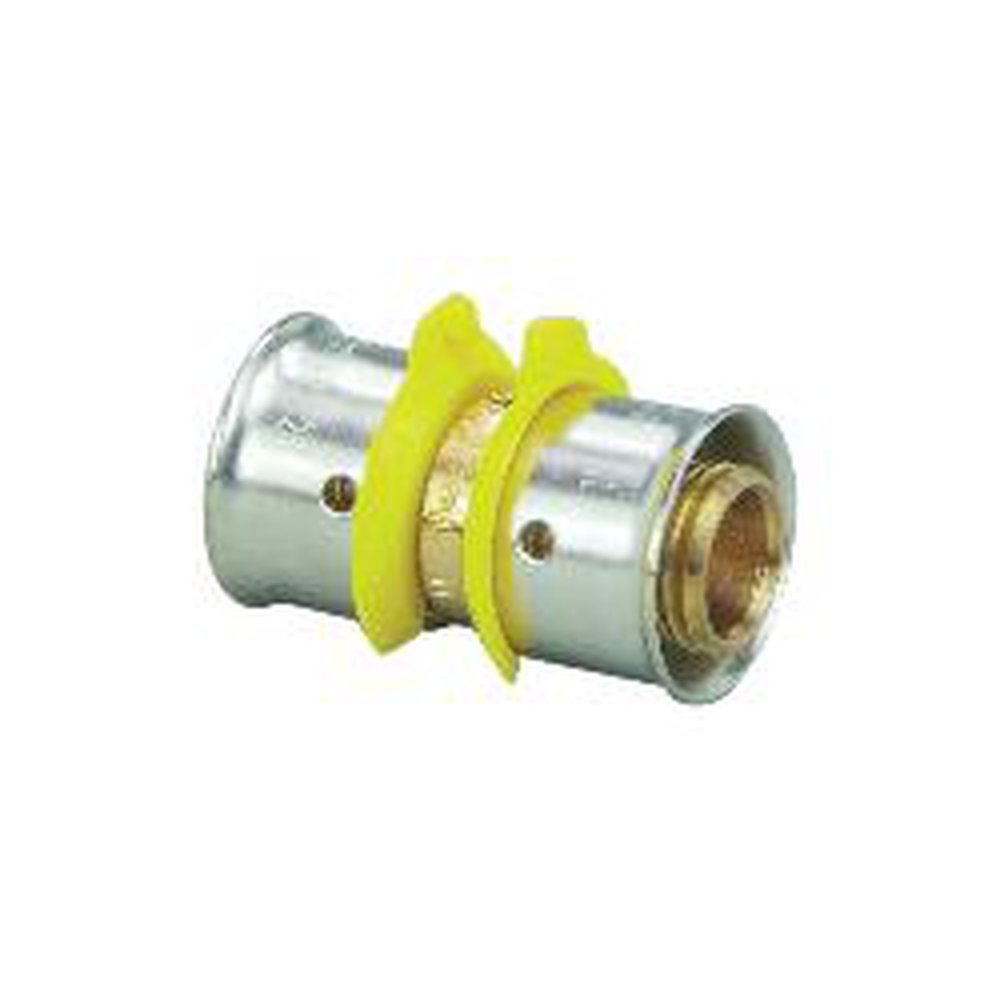

  • 93055 1X3/4 PEX PRESS COUPLING ZERO LEAD BRONZE
  • 93055 1X3/4 PEX PRESS COUPLING ZERO LEAD BRONZE

Description: PureFlow® Press, 93055, Coupling, Series: PureFlow®, 3/4 x 1 in Nominal, Press End Style, 1.58 in Length, 100 psi Pressure, Bronze, 180 to 200 deg F, Import

Manufacturer PN: 93055

UPC:  69151493055

Forberg Smith PN: 4617378

Invoice Description:

93055 1X3/4 PEX PRESS COUPLING ZERO LEAD BRONZE


SPEC SHEET

How Can We Make This Page Better?

PureFlow® Press 93055 PureFlow® Coupling, 3/4 x 1 in Nominal, Press End Style, Bronze, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega PureFlow® Press fittings are available in Zero Lead Bronze and polymer and include a factory-assembled, stainless steel sleeve with three viewing holes and a tool locator ring to ensure a proper press connection. The following design criteria make Viega PureFlow Press fittings ideal for use in potable water applications.
PureFlow® Press, 93055, Coupling, Series: PureFlow®, 3/4 x 1 in Nominal, Press End Style, 1.58 in Length, 100 psi Pressure, Bronze, 180 to 200 deg F, Import

Specifications

 Application Portable Water Systems, Hot and Cold Systems, Parallel Systems, Branch and Main Systems, Combination Systems, Fire Protection Systems and Fire Sprinkler
 Brand Name PureFlow® Press
 Domestic or Import Import
 End Style Press
 Length 1.58 in
 Manufacturer Part Number 93055
 Material Bronze
 Nominal Size 3/4 x 1 in
 PART NUMBER KEYWORDS 93055 ; 691514930558 ; 69151493055 ; 30691514930559
 Pressure Rating 100 psi
 Series PureFlow®
 Standards/Approvals NSF 61|UL Listed
 Temperature Rating 180 to 200 deg F

Features

▪ High corrosion resistance
▪ Excellent strength properties
▪ Resistant to stress corrosion
▪ Superior wear properties
▪ Compatible with all materials
