Viega

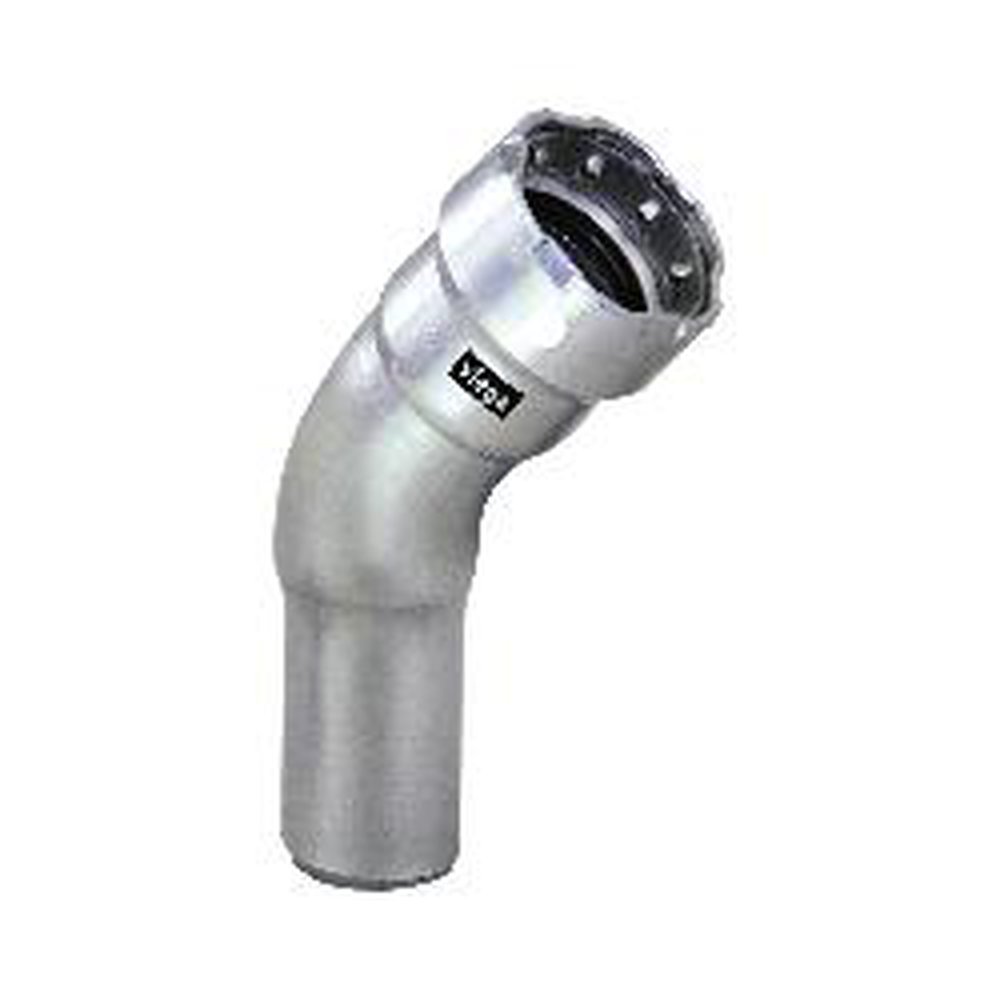

  • 95090 1 MEGAPRESS T304 SS 45 STREET ELBOW FKM SEAL
  • 95090 1 MEGAPRESS T304 SS 45 STREET ELBOW FKM SEAL

Description: MegaPress®, 95090, Street Elbow, Fitting/Connector: 45 deg Street Elbow, 1 in Nominal, Fitting x Press End Style, 200 psi Pressure, 0 to 250 deg F, 304 Stainless Steel, Import

Manufacturer PN: 95090

UPC:  69151495090

Forberg Smith PN: 3716858

Invoice Description:

95090 1 MEGAPRESS T304 SS 45 STREET ELBOW FKM SEAL


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 95090 Street Elbow, 45 deg Street Elbow, 1 in Nominal, Fitting x Press End Style, 304 Stainless Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.
MegaPress®, 95090, Street Elbow, Fitting/Connector: 45 deg Street Elbow, 1 in Nominal, Fitting x Press End Style, 200 psi Pressure, 0 to 250 deg F, 304 Stainless Steel, Import

Specifications

 Application Commercial and Industrial
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Fitting x Press
 Fitting Type 45 deg Street Elbow
 Includes FKM Sealing Element
 Manufacturer Part Number 95090
 Material 304 Stainless Steel
 Nominal Size 1 in
 PART NUMBER KEYWORDS 95090 ; 691514950907 ; 69151495090 ; 30691514950908
 Pressure Rating 200 psi
 Standards/Approvals ASTM A312|CRN 13492.5 A/B|IAPMO/UPC PS-117|ICC LC1002|TSSA/ASME B31.1/B31.3/B31.9
 Temperature Rating 0 to 250 deg F

Features

▪ Makes secure press connections from 1/2 to 2 in less than seven seconds
▪ Compatible with existing press tools
▪ Patented Viega Smart Connect® makes secure connection in less than 7 sec
▪ Minimizes system downtime by allowing for wet connection
▪ Fast and easy to use
▪ No welding, grinding or heavy equipment needed
▪ Helps installers easily identify unpressed connections during pressure testing
▪ Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
▪ Wide range of fitting configurations
▪ Eliminate threading and welding
▪ No fire watches, hot work permits or gas freezing
