Viega
  • 95455 1-1/2 MEGAPRESS T304 SS FLANGE FKM SEAL
  • 95455 1-1/2 MEGAPRESS T304 SS FLANGE FKM SEAL

Description: MegaPress® Flange, Fitting/Connector Type: Flange, 1-1/2 in Nominal, Press, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 4.92 in Dia x 3.44 in L, Import

Manufacturer PN: 95455

UPC:  69151495455

Forberg Smith PN: 3717143

Invoice Description:

95455 1-1/2 MEGAPRESS T304 SS FLANGE FKM SEAL

UNSPSC: 40183100


SPEC SHEET

How Can We Make This Page Better?

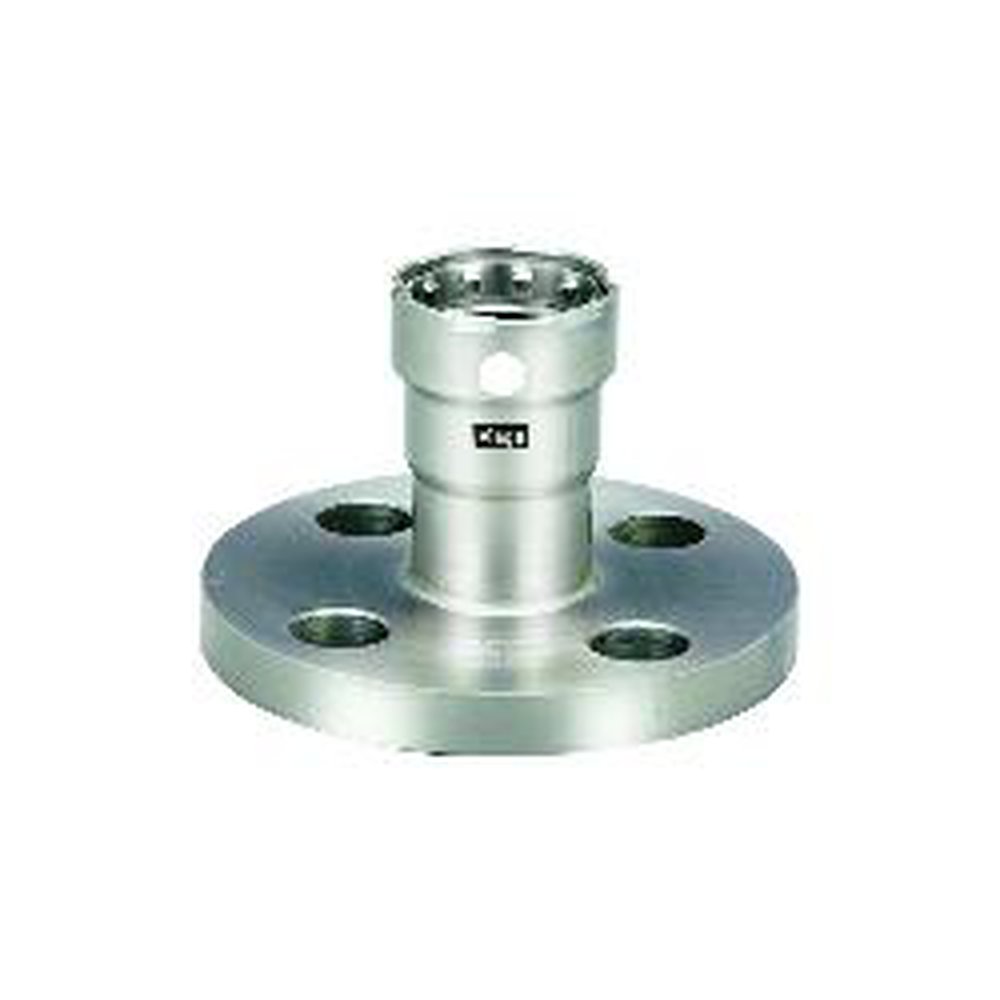

MegaPress® 95455 Flange, 1-1/2 in, Press, 304 Stainless Steel, Import

Price:  $380.61 / ea


Availability: 1 ea  i


Quantity  ea Add to Cart

Description

Viega MegaPress® Stainless 304 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for both commercial and industrial applications. MegaPress® Stainless 304 fittings utilize a versatile FKM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 304 system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases.
MegaPress® Flange, Fitting/Connector Type: Flange, 1-1/2 in Nominal, Press, 200 psi, 0 to 250 deg F, 304 Stainless Steel, 4.92 in Dia x 3.44 in L, Import

Specifications

 Application Commercial and Industrial
 Brand Name MegaPress®
 Dimensions 4.92 in Dia x 3.44 in L
 Domestic or Import Import
 End Style Press
 Fitting Type Flange
 Includes FKM Sealing Element
 Manufacturer Part Number 95455
 Material 304 Stainless Steel
 Nominal Size 1/1/2002 in
 Pressure Rating 200 psi
 Standards/Approvals ASTM A312|CRN 13492.5 A/B|IAPMO/UPC PS-117|ICC LC1002|TSSA/ASME B31.1/B31.3/B31.9
 Temperature Rating 0 to 250 deg F

Features

▪ Makes secure press connections from 1/2 to 2 in less than seven seconds
▪ Compatible with existing press tools
▪ 4 bolts pattern
▪ Model 4159
▪ Patented Viega Smart Connect® makes secure connection in less than 7 sec
▪ Minimizes system downtime by allowing for wet connection
▪ Fast and easy to use
▪ No welding, grinding or heavy equipment needed
▪ Helps installers easily identify unpressed connections during pressure testing
▪ Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
▪ Wide range of fitting configurations
▪ Eliminate threading and welding
▪ No fire watches, hot work permits or gas freezing
