Viega

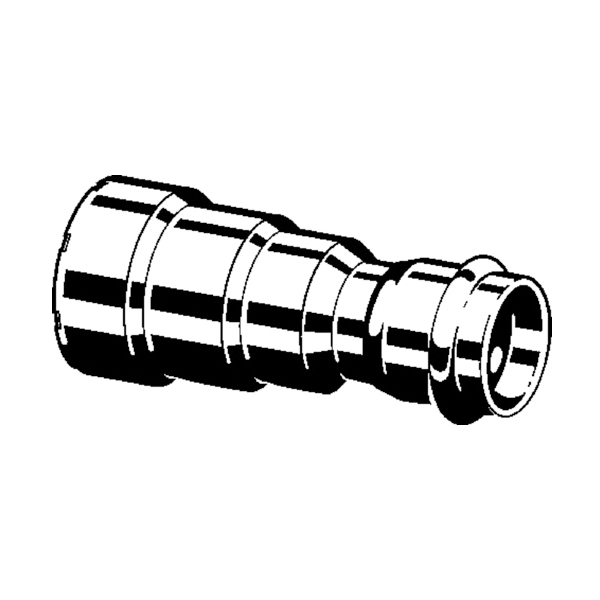

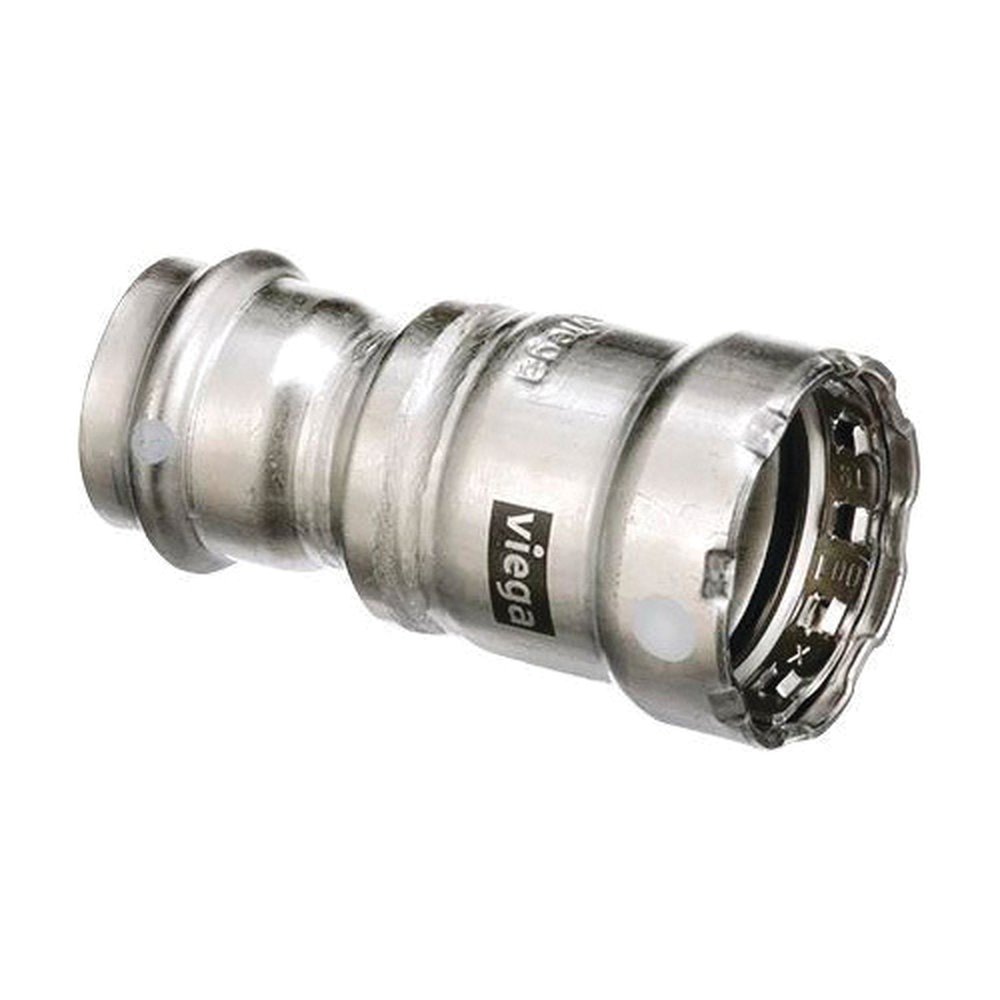

95485 1-1/2 MEGAPRESS T304 SS ADAPTER FKM SEAL

Mouse over image to zoom, click to enlarge

  • 95485 1-1/2 MEGAPRESS T304 SS ADAPTER FKM SEAL
  • 95485 1-1/2 MEGAPRESS T304 SS ADAPTER FKM SEAL

Description: MegaPress® Transition Coupling, Series: 4113, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Press x CTS, 200 psi, 14 to 284 deg F, 304 Stainless Steel, 4.55 in L, Import

Manufacturer PN: 95485

UPC:  69151495485

Forberg Smith PN: 4588241

Invoice Description:

95485 1-1/2 MEGAPRESS T304 SS ADAPTER FKM SEAL


How Can We Make This Page Better?

MegaPress® 95485 4113 Transition Coupling, 1-1/2 in Nominal, Press x CTS End Style, 304 Stainless Steel, Import

Log In for Pricing and Availability




Description

MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe to form a complete press system that is ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
MegaPress® Transition Coupling, Series: 4113, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Press x CTS, 200 psi, 14 to 284 deg F, 304 Stainless Steel, 4.55 in L, Import

Specifications

 Application Acid Solution, Caustic Solution, Compressed Air, Industrial Gas, Low Pressure Steam, Lube Oil, Process Water (Non-Potable) and Vacuum Applications
 Brand Name MegaPress®
 Dimensions 4.55 in L
 Domestic or Import Import
 End Style Press x CTS
 Fitting Type Coupling
 Includes FKM Sealing Element
 Manufacturer Part Number 95485
 Material 304 Stainless Steel
 Nominal Size 1-1/2 in
 PART NUMBER KEYWORDS 95485 ; ; 691514954851 ; 69151495485 ; 30691514954852
 Pressure Rating 200 psi
 Series 4113
 Standards/Approvals ABS Approved|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|ANSI/CAN/UL 213|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|FM Class 1920|IAPMO PS-117/UMC|ICC IMC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved|PROP65: This product can expose you to chemicals including Chromium (hexavalent compounds), which is know to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
 Temperature Rating 14 to 284 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in fittings
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or messy cutting oils
▪ Makes secure press connections from 1/2 in to 4 in seconds
▪ Compatible with existing press tools
▪ Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
▪ For transitioning between IPS and CTS systems
▪ Smart Connect® technology
