Viega

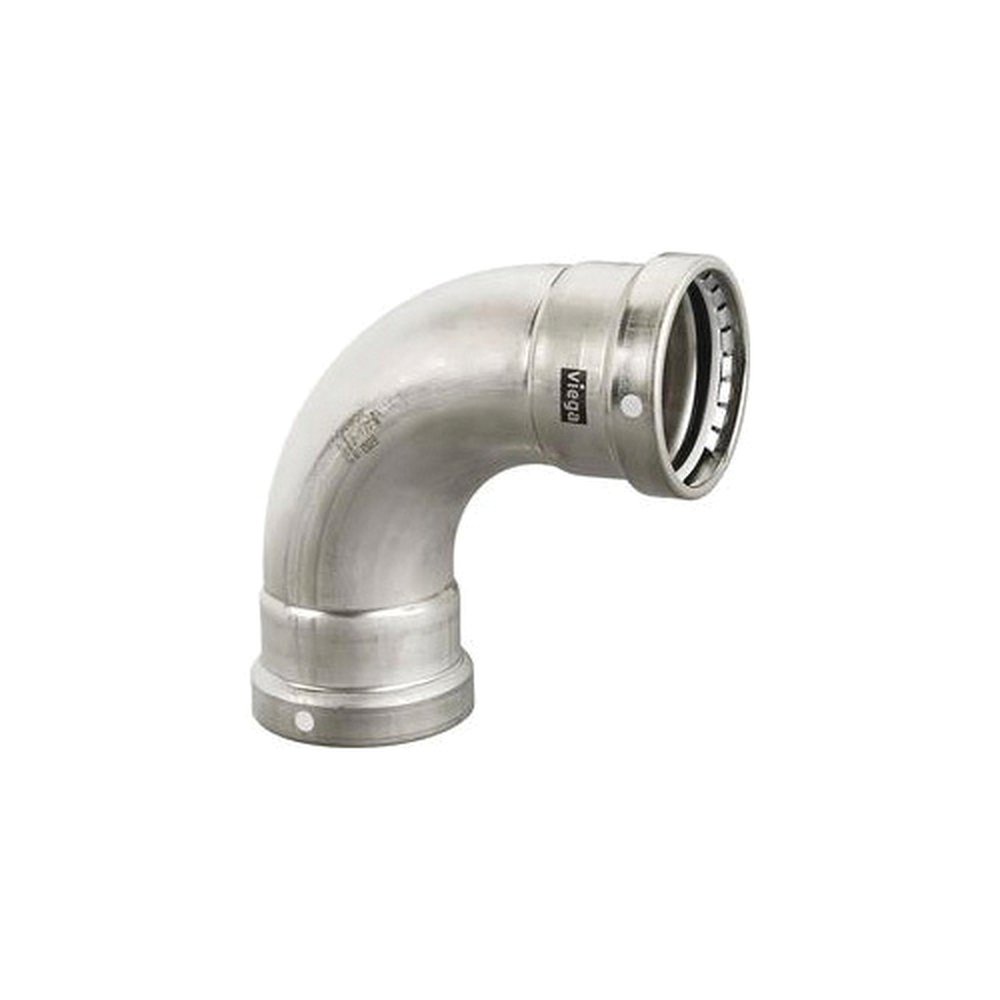

  • 95505 3 MEGAPRESS T304 SS 90 ELBOW FKM SEAL
  • 95505 3 MEGAPRESS T304 SS 90 ELBOW FKM SEAL

Description: MegaPress® Elbow, Series: 4116XL, Fitting/Connector Type: 90 deg Elbow, 3 in Nominal, Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, Import

Manufacturer PN: 95505

UPC:  69151495505

Forberg Smith PN: 4093221

Invoice Description:

95505 3 MEGAPRESS T304 SS 90 ELBOW FKM SEAL


How Can We Make This Page Better?

MegaPress® 95505 4116XL Elbow, 3 in Nominal, Press End Style, 304 Stainless Steel, Import

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe to form a complete press system that is ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
MegaPress® Elbow, Series: 4116XL, Fitting/Connector Type: 90 deg Elbow, 3 in Nominal, Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, Import

Specifications

 Application Acid Solution, Caustic Solution, Compressed Air, Industrial Gas, Low Pressure Steam, Lube Oil, Process Water (Non-Potable) and Vacuum Applications
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Press
 Fitting Type 90 deg Elbow
 Includes FKM Sealing Element
 Manufacturer Part Number 95505
 Material 304 Stainless Steel
 Nominal Size 3 in
 PART NUMBER KEYWORDS 95505 ; ; 691514955056 ; 69151495505 ; 30691514955057
 Pressure Rating 200 psi
 Series 4116XL
 Standards/Approvals ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|IAPMO PS-117/UMC|ICC IMC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved
 Temperature Rating 14 to 284 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a PBT separator ring for sizes 2-1/2 in to 4 in fittings
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or messy cutting oils
▪ Makes secure press connections from 1/2 in to 4 in seconds
▪ Compatible with existing press tools
▪ Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
▪ Smart Connect® technology
