Viega

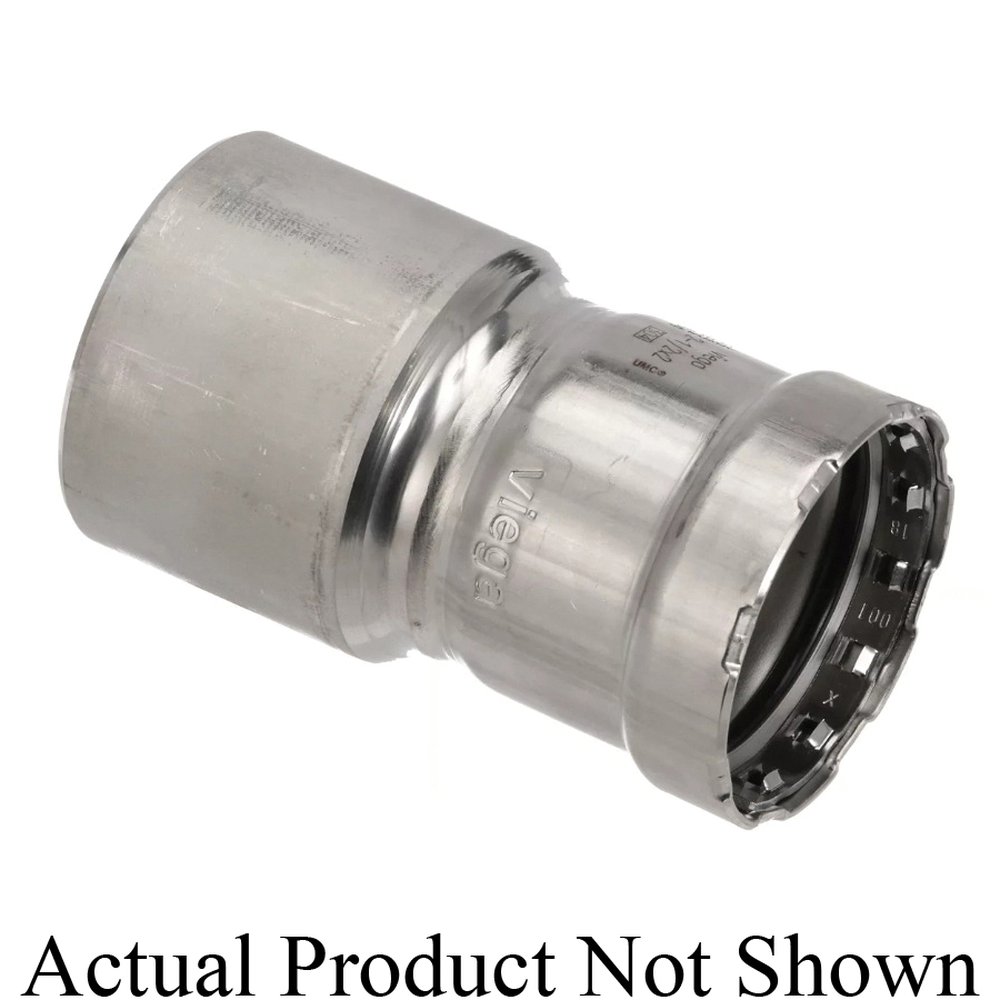

  • 95685 3X2-1/2 MEGAPRESS T304 SS REDUCER FTGXPROP FKM SEAL
  • 95685 3X2-1/2 MEGAPRESS T304 SS REDUCER FTGXPROP FKM SEAL

Description: MegaPress® Reducer, Series: 4115.1XL, Fitting/Connector Type: Reducer, 3 x 2-1/2 in Nominal, Fitting x Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, 5.55 in L, Import

Manufacturer PN: 95685

UPC:  69151495685

Forberg Smith PN: 4434524

Invoice Description:

95685 3X2-1/2 MEGAPRESS T304 SS REDUCER FTGXPROP FKM SEAL

UNSPSC: 40183112


How Can We Make This Page Better?

MegaPress® 95685 4115.1XL Reducer, 3 x 2-1/2 in Nominal, Fitting x Press End Style, 304 Stainless Steel, Import

Price:  $492.16 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

MegaPress® fittings are designed to be used with standard IPS ASTM A312 stainless steel pipe to form a complete press system that is ideal for industrial applications. MegaPress® 1/2 in to 2 in fittings can be used with SCH 5 to 40/STD stainless steel pipe and 2-1/2 in to 4 in fittings can be used with SCH 10 to 40/STD stainless steel pipe. A MegaPress® system can stand up to harsh environments while transporting process water, diesel fuel, lube oil, ammonia, low pressure steam or any number of other essential fluids or gases. MegaPress® fittings in sizes from 1/2 in to 4 in are offered in configurations including elbows, couplings, reducers, tees, reducing tees, threaded adapters, unions, caps and flanges.
MegaPress® Reducer, Series: 4115.1XL, Fitting/Connector Type: Reducer, 3 x 2-1/2 in Nominal, Fitting x Press, 200 psi, 14 to 284 deg F, 304 Stainless Steel, 5.55 in L, Import

Specifications

 Application Acid Solution, Caustic Solution, Compressed Air, Industrial Gas, Low Pressure Steam, Lube Oil, Process Water (Non-Potable) and Vacuum Applications
 Brand Name MegaPress®
 Dimensions 5.55 in L
 Domestic or Import Import
 End Style Fitting x Press
 Fitting Type Reducer
 Includes FKM Sealing Element
 Manufacturer Part Number 95685
 Material 304 Stainless Steel
 Nominal Size 3 x 2-1/2 in
 Pressure Rating 200 psi
 Series 4115.1XL
 Standards/Approvals ABS Approved|ANSI/CAN/UL 213|ASME B31/B31.1/B31.3/B31.9|ASTM A312/A554|Bureau Veritas Approved|CRN 23076.5 A/B/C|DNV-GL Approved|IAPMO PS-117/UMC|ICC IMC/IRC|ICC-ES LC1002|Lloyd's Register Certified|NBCC Approved|NFPA 13/13D/13R|NPCC Approved
 Temperature Rating 14 to 284 deg F

Features

▪ Engineered with a 420 stainless steel grip ring plus a PBT separator ring for sizes 2-1/2 in to 4 in fittings
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or messy cutting oils
▪ Makes secure press connections from 1/2 in to 4 in seconds
▪ Compatible with existing press tools
▪ Can be used on SCH 80/XH pipe, but with the rating of a SCH 40/STD system
▪ Smart Connect® technology
