Viega
91615 VIEGA

Mouse over image to zoom, click to enlarge

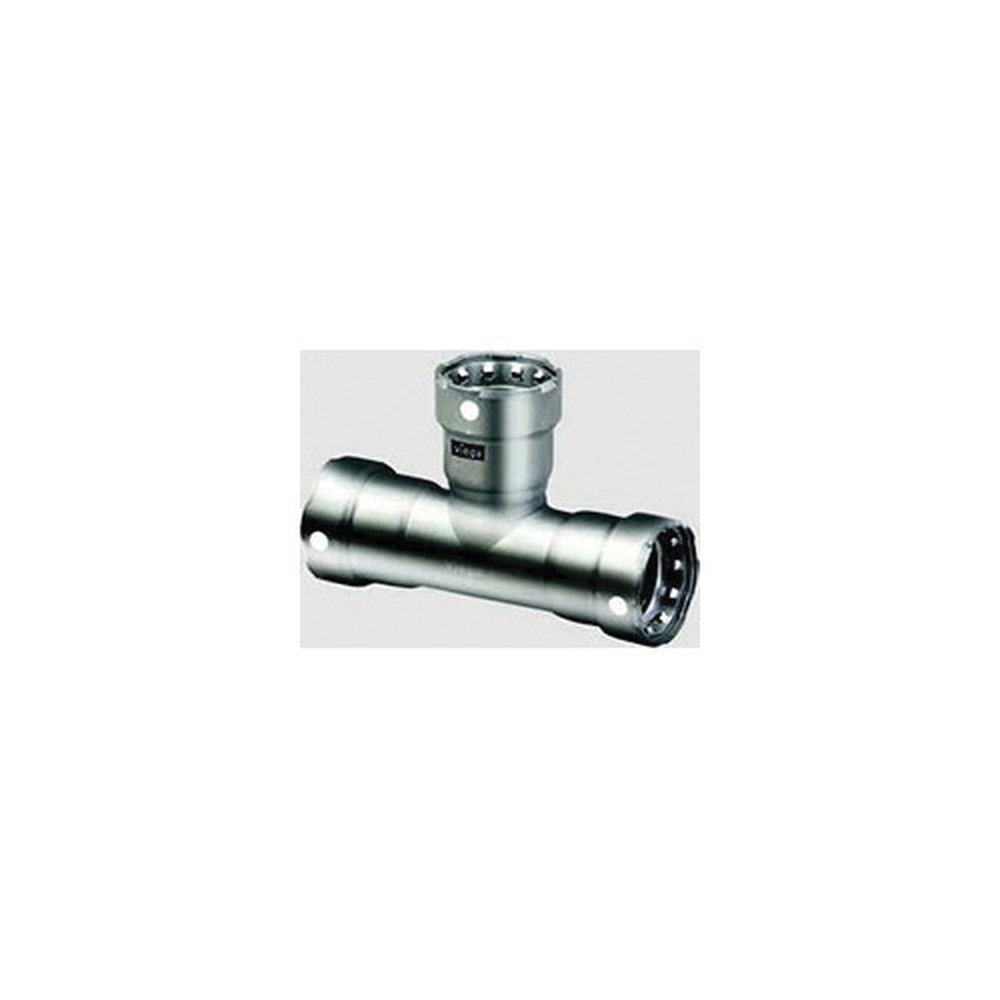

Description: MegaPress® Tee, Series: Model 6818, Fitting/Connector Type: Tee, 1-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, 316 Stainless Steel, Import

Manufacturer PN: 91615

UPC:  69151491615

Forberg Smith PN: 4574578

Invoice Description:

91615 VIEGA

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

MegaPress® 91615 Model 6818 Tee, 1-1/2 in Nominal, Press End Style, 316 Stainless Steel, Import

Price:  $411.45 / ea

Note: Lead times are estimates only


Availability: 2-4 weeks


Quantity  ea Add to Cart

Description

Viega MegaPress® 316 FKM fittings are the industry's first stainless fittings for Schedule 5 to 40 piping systems. Save on labor cost and system downtime with press fittings in a wide variety of configurations, available in sizes 1/2 to 4 in. Viega MegaPress® 316 with an FKM sealing element is suitable for use with hydronic applications, compressed air, industrial gases, marine applications and more.
MegaPress® Tee, Series: Model 6818, Fitting/Connector Type: Tee, 1-1/2 in Nominal, Press, 200 psi, 14 to 284 deg F, 316 Stainless Steel, Import

Specifications

 Application For use with SCH 5 to SCH 40 stainless steel pipe, process water (non-potable), low pressure steam, industrial gases, compress air (no oil), lube oil, caustic solutions, acid solutions and vacuum
 Brand Name MegaPress®
 Domestic or Import Import
 End Style Press
 Fitting Type Tee
 Includes FKM Sealing Element
 Manufacturer Part Number 91615
 Material 316 Stainless Steel
 Nominal Size 1/1/2002 in
 Pressure Rating 200 psi
 Series Model 6818
 Standards/Approvals ASME B31/B31.1/B31.3/B31.9|ASTM A312|ASTM F3226|ABS Approved|BV Approved|CRN 114541.5 A/B/C|DNV GL Approved|IAPMO PS-117|ICC-ES LC1002|Lloyd's Approved|National Building Code of Canada|NFPA 13/13D/13R|RINA|UL/ANSI 213|ULC/ANSI ORD-C213
 Temperature Rating 14 to 284 deg F
 Video Links

Features

▪ Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator for sizes 2-1/2 to 4 in
▪ 316 stainless carries an NSF-61 potable water rating
▪ Wide range of fitting configurations
▪ Eliminates threading and welding
▪ No fire watches, hot work permits or gas freeing
▪ Makes secure press connections from 1/2 to 4 in seconds
▪ Compatible with existing press tools
▪ Smart Connect® technology
