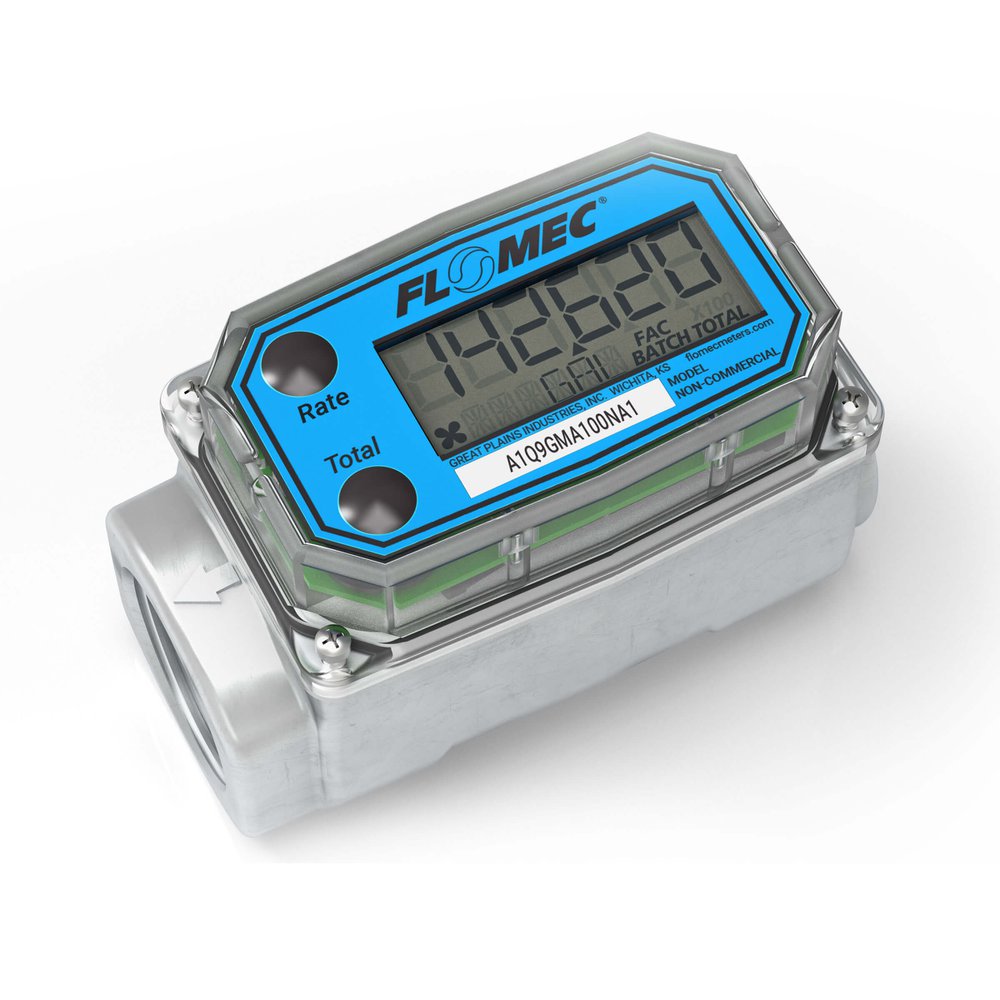

A1Q9GMA100NA1 GPI A1 SERIES TURBINE METER LOCAL COMPUTER W/DISPLAY, METER MOUNTED 2 BUTTON, CALIBRATION GALLONS PER MINUTE, TURBINE 1" ALUMINUM FNPT, WITH FM, ATEX & IEC APPROVAL FOR HAZARDOUS AREA

Mouse over image to zoom, click to enlarge

Manufacturer PN: A109GMN100NA1

Forberg Smith PN: 4247967

Invoice Description:

A1Q9GMA100NA1 GPI A1 SERIES TURBINE METER LOCAL COMPUTER W/DISPLAY, METER MOUNTED 2 BUTTON, CALIBRATION GALLONS PER MINUTE, TURBINE 1" ALUMINUM FNPT, WITH FM, ATEX & IEC APPROVAL FOR HAZARDOUS AREA

UNSPSC: 39120000

▸ See All in GPI-Flomec Flowmeters and Accessories


How Can We Make This Page Better?

A1Q9GMA100NA1 GPI A1 SERIES TURBINE METER LOCAL COMPUTER W/DISPLAY, METER MOUNTED 2 BUTTON, CALIBRATION GALLONS PER MINUTE, TURBINE 1" ALUMINUM FNPT, WITH FM, ATEX & IEC APPROVAL FOR HAZARDOUS AREA

Price:  $476.00 / ea


Availability: 1 ea  i


Quantity  ea Add to Cart

Specifications

 Accuracy +/- 1.5%
 Approvals ATEX;CE;Eex;NEMA 4 cUL
 Body Material Nylon
 Connection Size 1"
 Connection Type FNPT
 Electronics 2-Button Computer, Field Configurable
 Flow Rate 3-50 GPM (11-190 LPM)
 Frequency 36.5-608.3 Hz @3-50 GPM
 Pressure Rating 300 PSI / 21 Bar
 Series A1 Series
 Temperature Range 0 to 140?F, (-18 to 60?C)
 Type Flowmeter
 Wetted Material Nylon;Ceramic;(316) Stainless Steel;Nylon;Tungsten Carbide;Ferrite
