Dixon Valve & Coupling
AST20 DIXON 1-1/2 HXM ALUM ADAPTER

Mouse over image to zoom, click to enlarge

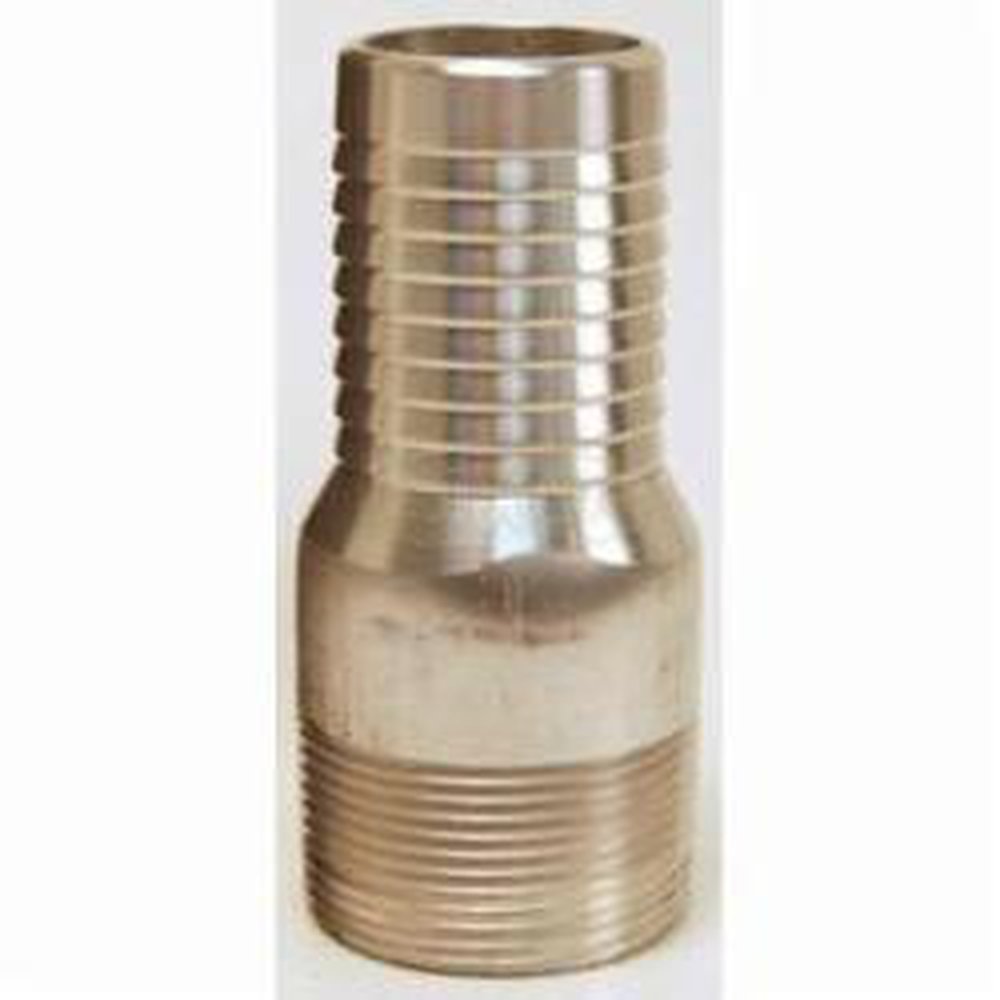

Description: Dixon® Combination Nipple, 1-1/2 in Nominal Size, Hose Shank x MNPT, 4-5/32 in Length, Aluminum, Domestic

Manufacturer PN: AST20

UPC:  69746402689

Forberg Smith PN: 3352857

Invoice Description:

AST20 DIXON 1-1/2 HXM ALUM ADAPTER

UNSPSC: 40141734


SPEC SHEET

How Can We Make This Page Better?

Dixon® AST20 Combination Nipple, 1-1/2 in, Hose Shank x MNPT, Aluminum, Domestic

Price:  $16.37 / ea

Note: Lead times are estimates only


Availability: 1-2 weeks


Quantity  ea Add to Cart

Description

Dixon® Combination Nipple, 1-1/2 in Nominal Size, Hose Shank x MNPT, 4-5/32 in Length, Aluminum, Domestic

Specifications

 Application For low-pressure discharge and suction service for compatible liquids
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style Hose Shank x MNPT
 Length 4/5/1932 in
 Manufacturer Part Number AST20
 Material Aluminum
 Nominal Size 1/1/2002 in

Features

▪ Crimp sleeves are available and recommended for reliable assemblies
▪ King combination nipples are not recommended for steam
▪ The working pressure may vary with the construction of the hose, the type of clamping system used and the application
▪ In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement
▪ Not for compressible products such as air or nitrogen
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling

Resources

 Catalog
 Catalog Page
 Product Data Sheet
