Parker Hannifin

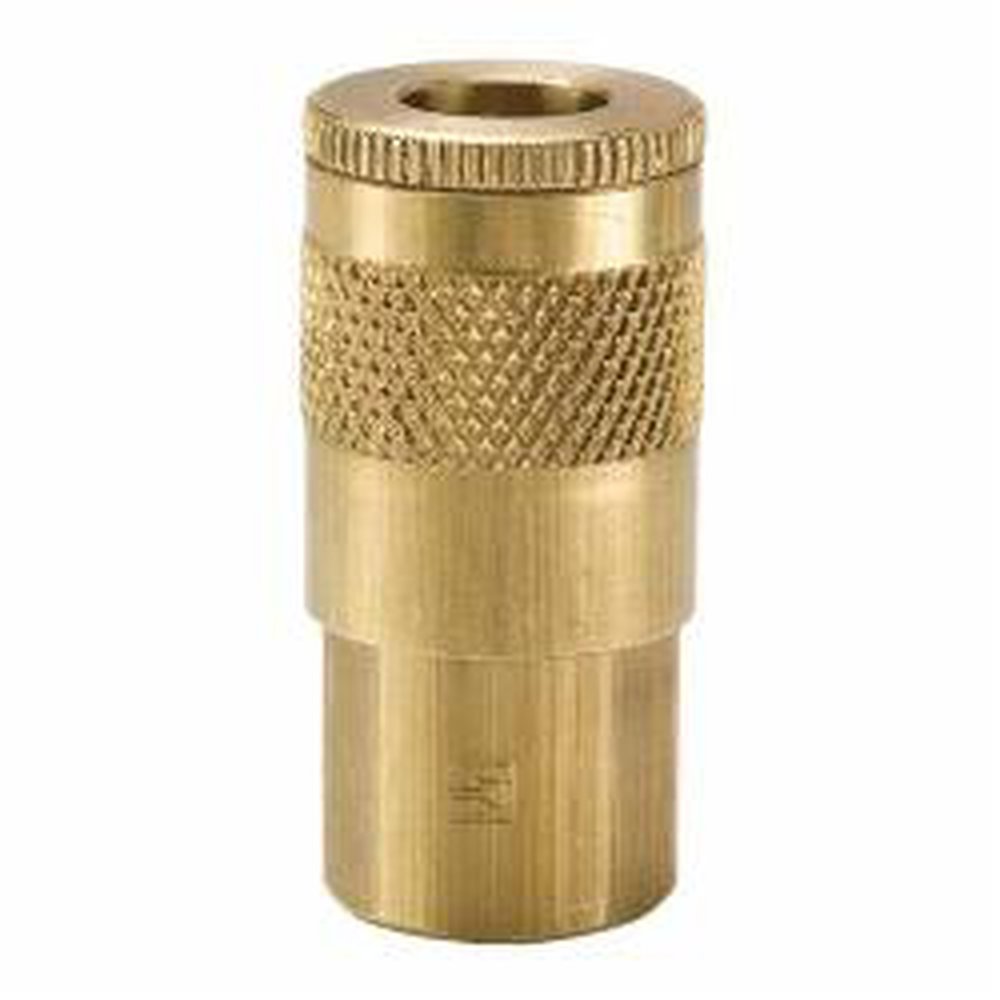

B17 1/2 BRS PARKER QUICK CONNECT SOCKET

Mouse over image to zoom, click to enlarge

Description: Parker® Quick Connect Coupler, Tru-Flate General Purpose Straight, Series: Tru-Flate 10, 1/2 in Nominal, Quick Connect Coupler x FNPT, 1 in Hex, 2.96 in Length, 300 psi, -40 to 250 deg F, Brass, 1.19 in Dia, Domestic

Manufacturer PN: B17

Forberg Smith PN: 4178797

Invoice Description:

B17 1/2 BRS PARKER QUICK CONNECT SOCKET

UNSPSC: 39120000


How Can We Make This Page Better?

Parker® B17 Tru-Flate 10 Tru-Flate General Purpose Straight Quick Connect Coupler, 1/2 in, Quick Connect Coupler x FNPT, 300 psi, Brass, Domestic

Price:  $101.51 / ea

Note: Lead times are estimates only


Availability: 5-8 days


Quantity  ea Add to Cart

Description

Parker® Quick Connect Coupler, Tru-Flate General Purpose Straight, Series: Tru-Flate 10, 1/2 in Nominal, Quick Connect Coupler x FNPT, 1 in Hex, 2.96 in Length, 300 psi, -40 to 250 deg F, Brass, 1.19 in Dia, Domestic

Specifications

 Application Air Compressors, Pneumatic Tools, Water, Grease and Paint
 Brand Name Parker®
 Dimensions 1.19 in Dia
 Domestic or Import Domestic
 End Style Quick Connect Coupler x FNPT
 Hex Size 1 in
 Length 2.96 in
 Manufacturer Part Number B17
 Material Brass
 Nominal Size 2-Jan in
 Pressure Rating 300 psi
 Series Tru-Flate 10
 Standards/Approvals MIL-C-4109F
 Temperature Rating -40 to 250 deg F
 Type Tru-Flate General Purpose Straight

Features

▪ Integral sleeve guard helps prevent accidental disconnect
▪ Tubular valve delivers high air flow with minimal pressure drop
▪ Standard seal is nitrile
▪ Manual sleeve
▪ Single shut-off
