Dixon Valve & Coupling

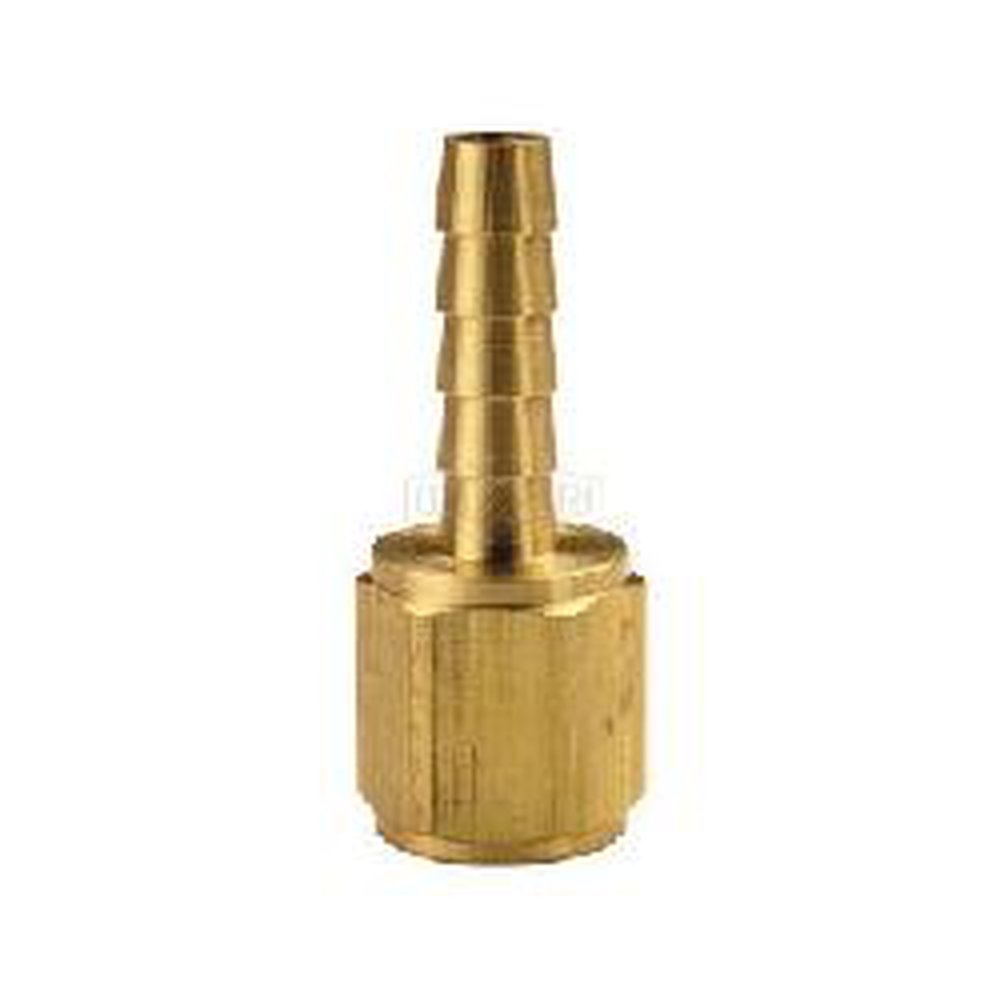

BF33 DIXON 3/8X3/8 BRASS BARBED HOSE FITTING HXF P/N 1040606C

Mouse over image to zoom, click to enlarge

Description: Dixon®, 1040606C, Hose Barb, Standard Solid, Series: 104, Fitting/Connector: Adapter, 3/8 in Nominal, FNPT x Hose Barb End Style, 3/4 in Hex, 1.66 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic

Manufacturer PN: 1040606C

UPC:  69746423141

Forberg Smith PN: 3197791

Invoice Description:

BF33 DIXON 3/8X3/8 BRASS BARBED HOSE FITTING HXF P/N 1040606C


SPEC SHEET

How Can We Make This Page Better?

Dixon® 1040606C 104 Standard Solid Hose Barb, 3/8 in Nominal, FNPT x Hose Barb End Style, Brass, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon®, 1040606C, Hose Barb, Standard Solid, Series: 104, Fitting/Connector: Adapter, 3/8 in Nominal, FNPT x Hose Barb End Style, 3/4 in Hex, 1.66 in Length, 4 Barb, 0.97 in Barb Length, 150 psi Pressure, -40 to 160 deg F, Brass, Domestic

Specifications

 Application For use with hose clamps or crimped ferrules
 Barb Length 0.97 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style FNPT x Hose Barb
 Fitting Type Adapter
 Hex Size 3/4 in
 Length 1.66 in
 Manufacturer Part Number 1040606C
 Material Brass
 Nominal Size 3/8 in
 Number Of Barb 4
 PART NUMBER KEYWORDS 1040606C ; BF33 ; 104-0606 ; 1040606
 Pressure Rating 150 psi
 Series 104
 Temperature Rating -40 to 160 deg F
 Type Standard Solid
 Video Links

Features

▪ All standard hose fittings are intended for use with hose clamps or crimped ferrules
▪ Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
▪ Do not use in connection with drinking water
▪ Wash hands after handling
▪ 0.97 in L barb
▪ 4 barbs
▪ Solid female insert
▪ Dryseal construction

Resources

 Catalog
 Catalog Page
 Product Data Sheet
