Dixon Valve & Coupling

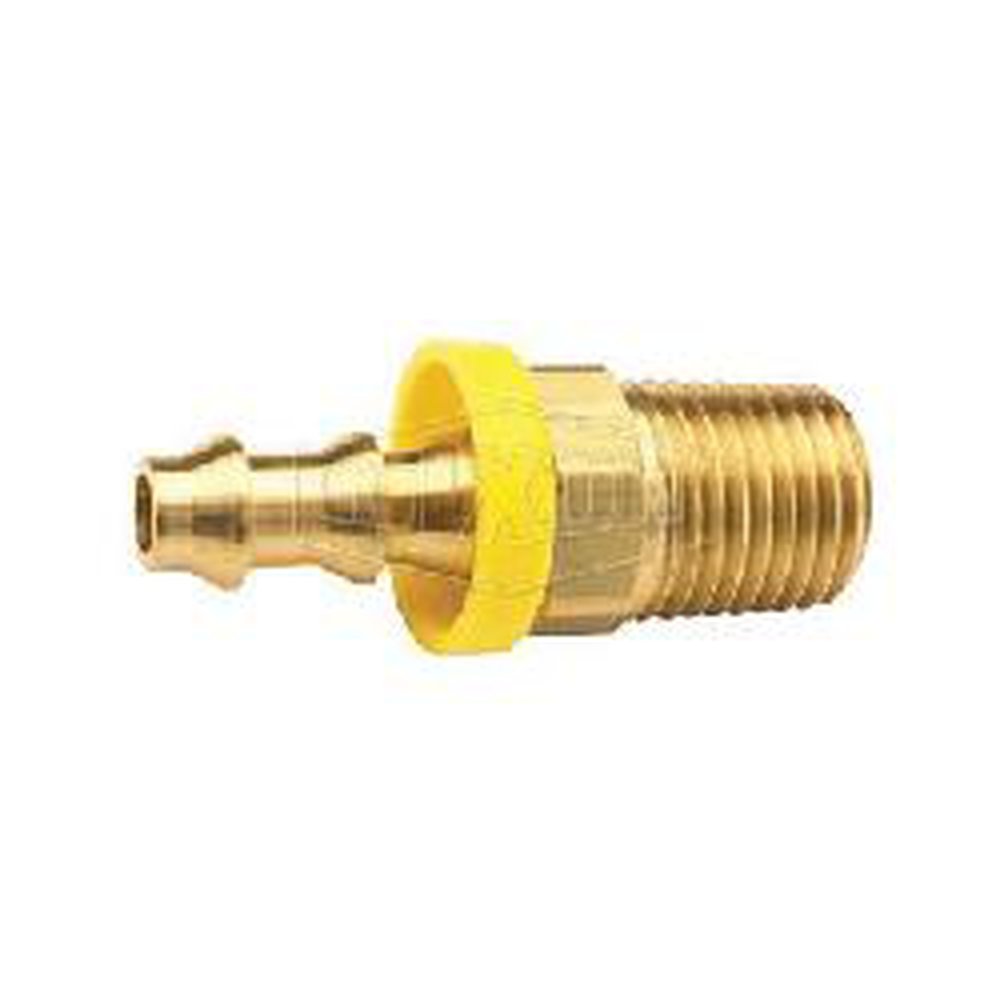

BPN56 DIXON BRASS MALE NPTF X PUSH-ON HOSE BARB 5/8 ID X 3/4 MALE NPTF, DRYSEAL

Mouse over image to zoom, click to enlarge

Description: Dixon® Hose Barb, Fitting/Connector Type: Adapter, 3/4-14 x 5/8 in Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2.55 in Length, 3 Barb, 1-1/2 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

Manufacturer PN: 2721012C

UPC:  69746423585

Forberg Smith PN: 3589744

Invoice Description:

BPN56 DIXON BRASS MALE NPTF X PUSH-ON HOSE BARB 5/8 ID X 3/4 MALE NPTF, DRYSEAL

UNSPSC: 39120000


SPEC SHEET

How Can We Make This Page Better?

Dixon® 2721012C Hose Barb, 3/4-14 x 5/8 in Nominal, MNPT x Hose Barb, Brass, Domestic

Price:  $7.20 / ea

Note: Lead times are estimates only


Availability: 5-8 days


Quantity  ea Add to Cart

Description

Dixon® Hose Barb, Fitting/Connector Type: Adapter, 3/4-14 x 5/8 in Nominal, MNPT x Hose Barb End Style, 1-1/16 in Hex, 2.55 in Length, 3 Barb, 1-1/2 in Barb Length, 350 psi Pressure, -40 to 150 deg F, Brass, Domestic

Specifications

 Application For pneumatic service, most fluids, low pressure hydraulics and non-potable water service
 Barb Length 1/1/2002 in
 Brand Name Dixon®
 Domestic or Import Domestic
 End Style MNPT x Hose Barb
 Fitting Type Adapter
 Hex Size 1/1/2016 in
 Length 2.55 in
 Manufacturer Part Number 2721012C
 Material Brass
 Nominal Size 3/4-14 x 5/8 in
 Number Of Barb 3
 Pressure Rating 350 psi
 Standards/Approvals SAE J476/J512/J514/J516|PROP65: This product can expose you to chemicals including lead, which is known to the State of Califonia to cause cancer and birth defects or other reproductive ham. Wash hands after handling. For more information go to www.P65Wamings.ca.gov.
 Temperature Rating -40 to 150 deg F

Features

▪ Push-on fittings are intended for use with lok-on (push-on style) hose
▪ No hose clamp or ferrule needed
▪ Lock-on fittings will properly grip lok-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap
