Dixon Valve & Coupling

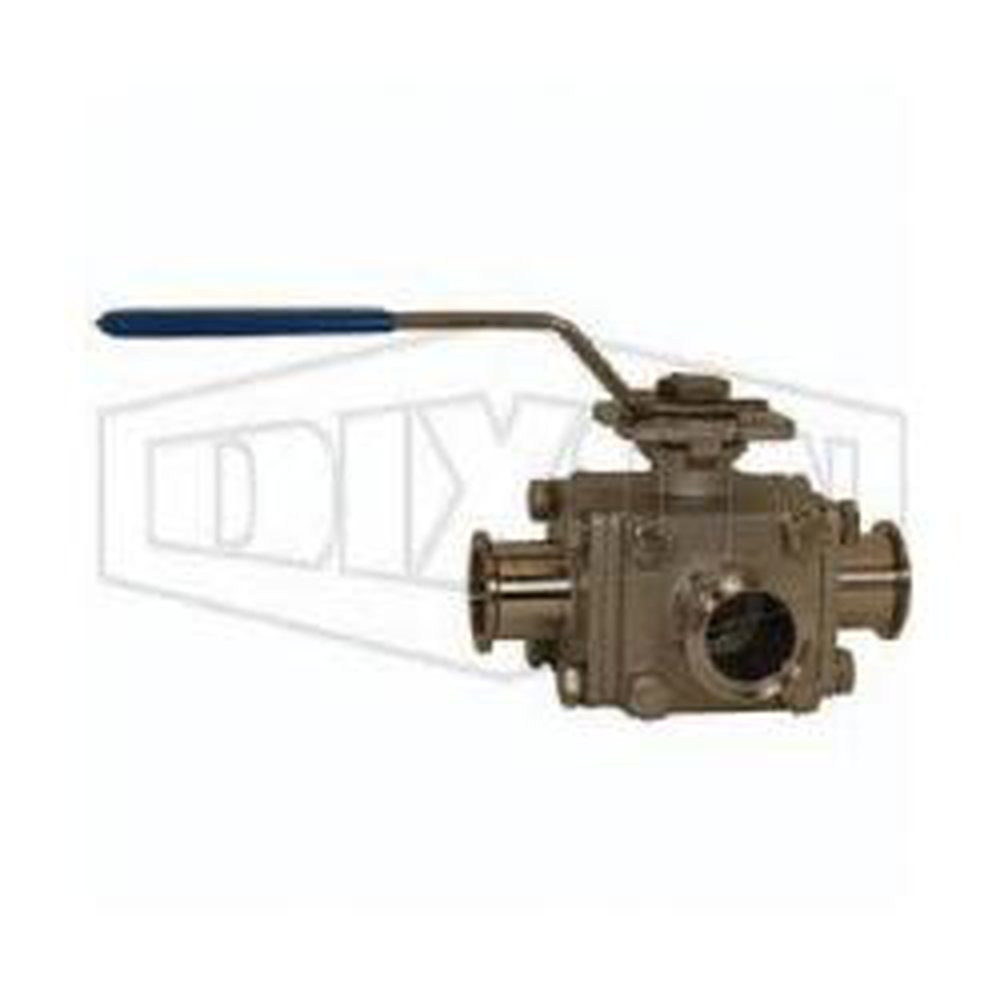

BV3SVTF200C-A BRADFORD 2" CLAMP END 3-WAY T-PORT MANUAL BALL VALVE

Mouse over image to zoom, click to enlarge

Description: Dixon® Ball Valve, 3-Way Multi-Port, 2 in Nominal, 1000 psi, L-Full Port, Stainless Steel Ball, Stainless Steel Body, PTFE Seat Trim

Manufacturer PN: BV3SVTF200C-A

Forberg Smith PN: 3263538

Invoice Description:

BV3SVTF200C-A BRADFORD 2" CLAMP END 3-WAY T-PORT MANUAL BALL VALVE


How Can We Make This Page Better?

Dixon® BV3SVTF200C-A 3-Way Multi-Port Ball Valve, 2 in, Stainless Steel Body, L-Full Port

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Dixon® Ball Valve, 3-Way Multi-Port, 2 in Nominal, 1000 psi, L-Full Port, Stainless Steel Ball, Stainless Steel Body, PTFE Seat Trim

Specifications

 Body Material Stainless Steel
 Brand Name Dixon®
 Manufacturer Part Number BV3SVTF200C-A
 Nominal Size 2 in
 PART NUMBER KEYWORDS BV3SVTF200C-A ; BV3SVTF200CA
 Pressure Rating 1000 psi
 Trim Material PTFE Seat
 Type 3-Way Multi-Port
 Video Links

Features

▪ Blow-out proof stem
▪ Live loaded stem packing
▪ Lockout, tag out
▪ CF8M stainless steel body, ends and ball
▪ 25% carbon reinforced tetrafluoroethylene seat is specified for higher temperature pressure applications
▪ Ideal for steam and thermal fluid applications
▪ Higher cycle life than RTFE
▪ ISO 5211 mounting pad
▪ 553 in-lb break torque
