ASC Engineered Solutions

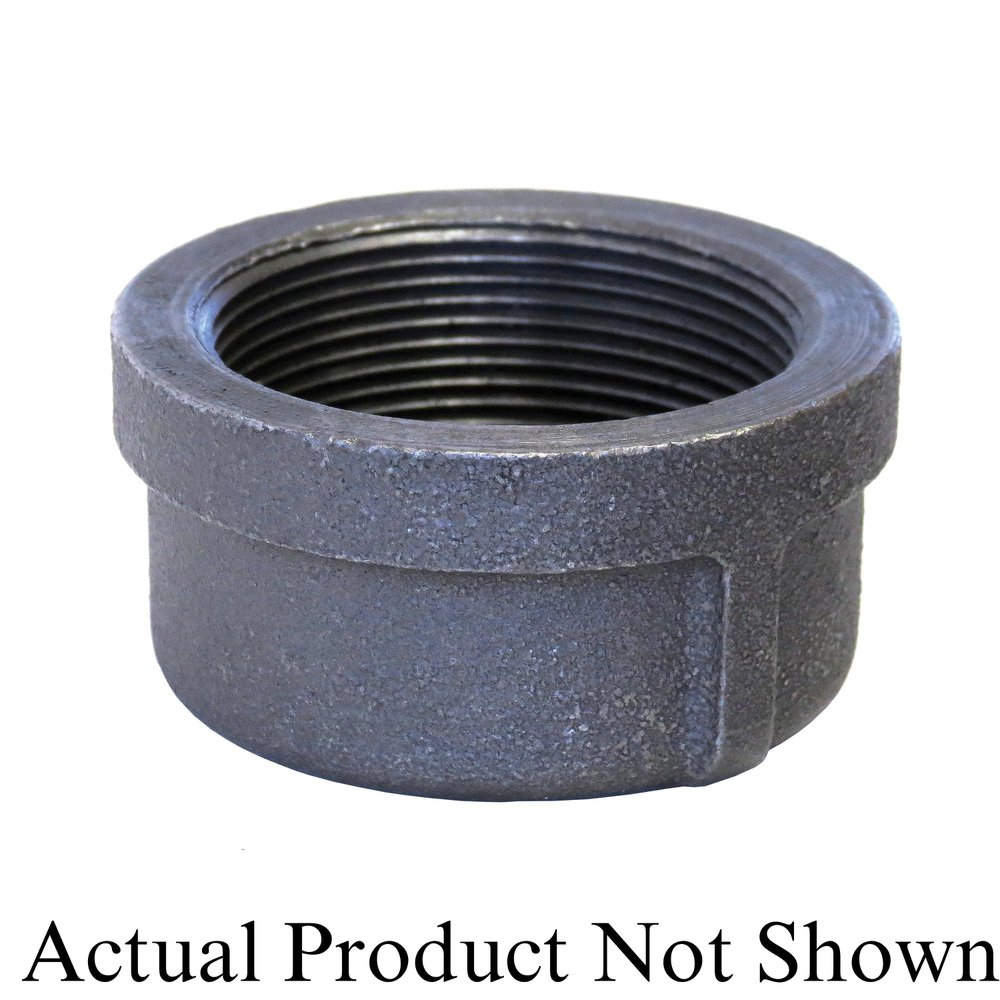

(D) 1-1/2 GALV MALL CAP

Mouse over image to zoom, click to enlarge

Description: Anvil® Pipe Cap, Standard, Series: FIG 1124, Fitting/Connector Type: Cap, 1-1/2 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Manufacturer PN: 0319900684

UPC:  66246743604

Forberg Smith PN: 3026571

Invoice Description:

(D) 1-1/2 GALV MALL CAP

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0319900684 FIG 1124 Standard Pipe Cap, 1-1/2 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

Price:  $15.44 / ea


Availability: 43 ea  i


Quantity  ea Add to Cart

Description

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 bar).
Anvil® Pipe Cap, Standard, Series: FIG 1124, Fitting/Connector Type: Cap, 1-1/2 in Nominal, FNPT, SCH 40/STD, 150 lb, 300 psi, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic

Specifications

 Brand Name Anvil®
 Domestic or Import Domestic
 End Style FNPT
 Finish Galvanized
 Fitting Type Cap
 Manufacturer Part Number 0319900684
 Material Malleable Iron
 Nominal Size 1/1/2002 in
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Series FIG 1124
 Standards/Approvals ASME B16.3/B1.20.1|ASTM A197|cULus Listed|FM Approved|NSF/ANSI 61
 Temperature Rating -20 to 150 deg F
 Type Standard

Features

▪ Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

Resources

 Product Data Sheet

Time Zone



Substitute Products:
