Ward Manufacturing
(D) 1-1/2X3/4 BLK MALL RED COUP --

Mouse over image to zoom, click to enlarge

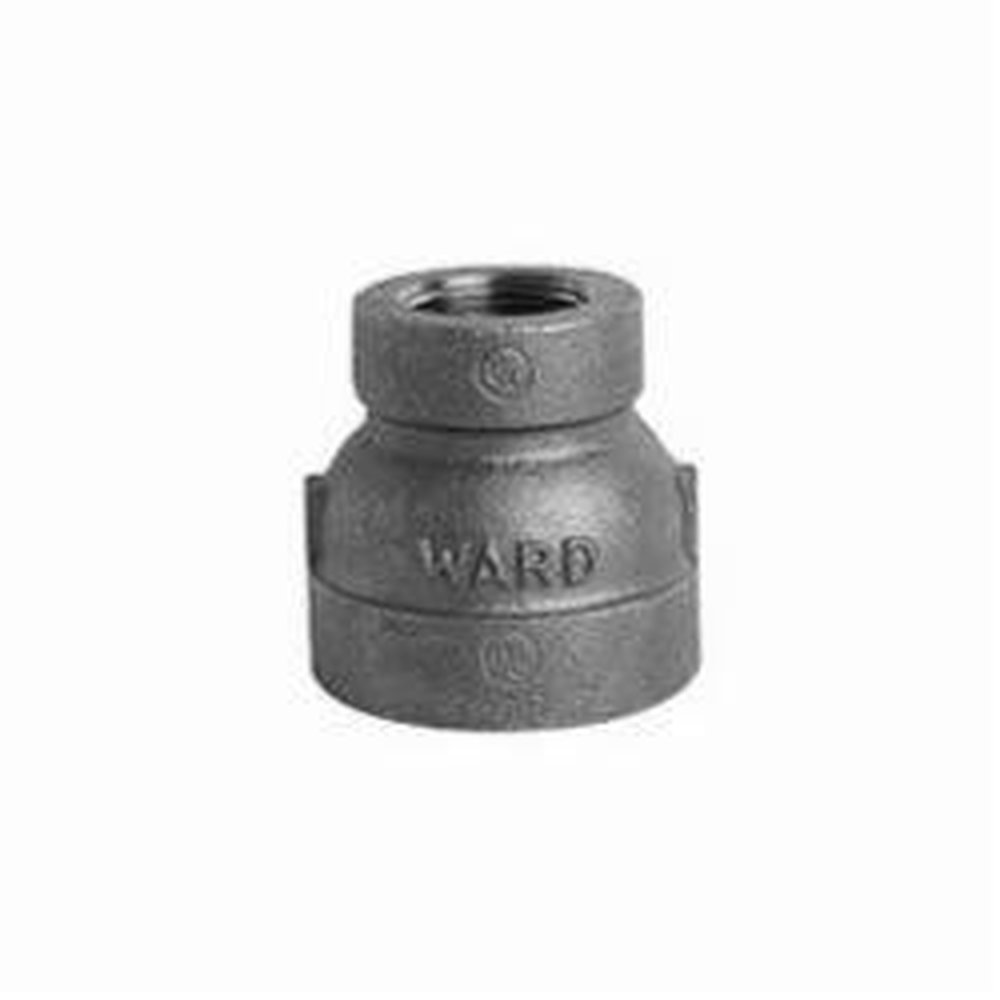

Description: Ward Mfg Pipe Reducing Coupling, Reducing Coupling Fitting/Connector, 1-1/2 x 3/4 in Nominal, FNPT End Style, 2.31 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 150 deg F, Domestic

Manufacturer PN: 66246735670

UPC:  66246735670

Forberg Smith PN: 3021085

Invoice Description:

(D) 1-1/2X3/4 BLK MALL RED COUP --

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg 1DXE.BMC Pipe Reducing Coupling, 1-1/2 x 3/4 in Nominal, FNPT End Style, 150 lb, Malleable Iron, Black, Domestic

Price:  $21.95 / ea


Availability: 50 ea  i


Quantity  ea Add to Cart

Description

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.
Ward Mfg Pipe Reducing Coupling, Reducing Coupling Fitting/Connector, 1-1/2 x 3/4 in Nominal, FNPT End Style, 2.31 in Length, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg
 Domestic or Import Domestic
 End Style FNPT
 Finish Black
 Fitting Type Reducing Coupling
 Length 2.31 in
 Manufacturer Part Number 1DXE.BMC
 Material Malleable Iron
 Nominal Size 1-1/2 x 3/4 in
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Standards/Approvals ASME B16.14/B16.4/B1.20.1|ANSI B1.20.1|FM Approved|NSF 61-G|UL/ULC Listed
 Temperature Rating -20 to 150 deg F

Features

▪ Wide range of products for sprinkler systems, drainage systems other installations, including fittings connectors, unions, plugs & bushings, clamps and more
▪ Accurate form, length and straightness on threads for easy engagement
▪ Chamfered openings for fast, easy engagement and assembly
▪ Precision machining
▪ Rust-Resistant coating
▪ 0.5 in small end x 0.7 in large end thread length
▪ 0.43 x 0.61 in take out
▪ 1.46 in small end x 2.43 in large end band outside diameter

Resources

 Product Data Sheet

Time Zone

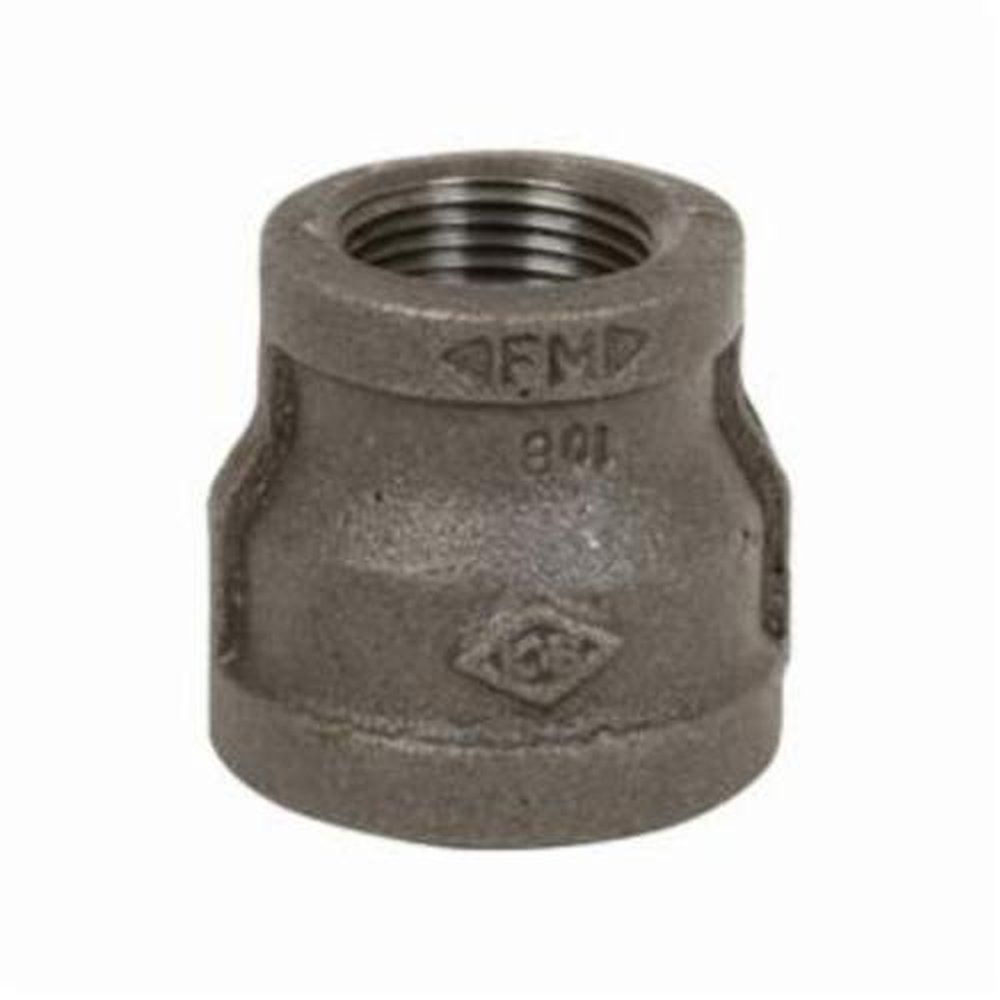

Substitute Products:
