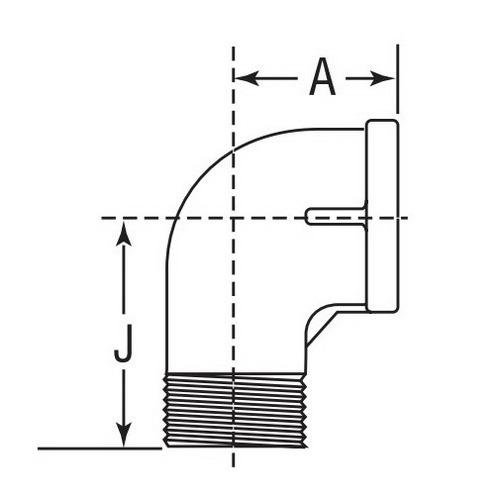

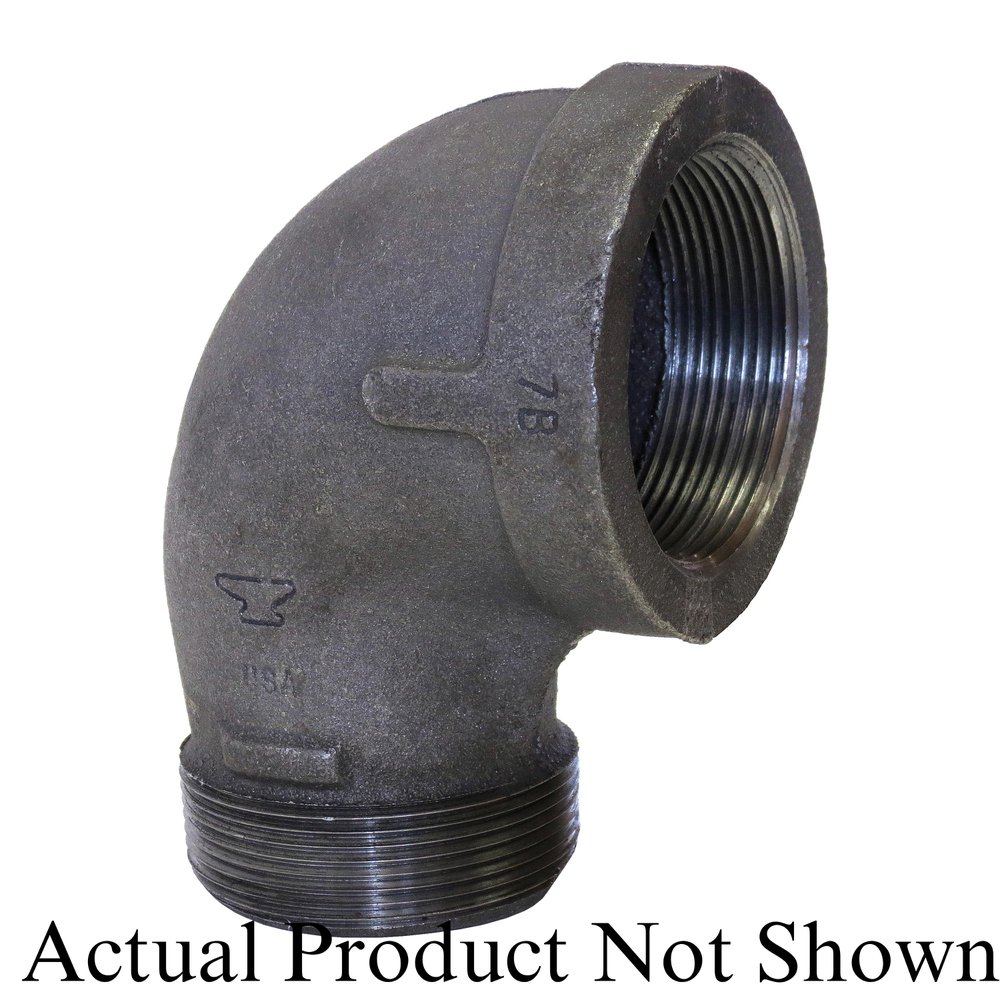

(D) 1-1/4 GALV MALL STREET 90 ELBOW

Mouse over image to zoom, click to enlarge

  • (D) 1-1/4 GALV MALL STREET 90 ELBOW
  • (D) 1-1/4 GALV MALL STREET 90 ELBOW

Description: Anvil® Straight Street Elbow, Series: FIG 1103, 90 deg Elbow Fitting/Connector, 1-1/4 in Nominal, MNPT x FNPT End Style, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic/Import: Domestic

Manufacturer PN: 0311016802

UPC:  66246743513

Forberg Smith PN: 3025415

Invoice Description:

(D) 1-1/4 GALV MALL STREET 90 ELBOW


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0311016802 FIG 1103 Straight Street Elbow, 1-1/4 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Galvanized, Domestic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
Anvil® Straight Street Elbow, Series: FIG 1103, 90 deg Elbow Fitting/Connector, 1-1/4 in Nominal, MNPT x FNPT End Style, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Galvanized, -20 to 150 deg F, Domestic/Import: Domestic

Specifications

 Brand Name Anvil®
 Domestic or Import Domestic
 End Style MNPT x FNPT
 Finish Galvanized
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 0311016802
 Material Malleable Iron
 Nominal Size 1-1/4 in
 PART NUMBER KEYWORDS 0311016802 ; IMG1026 ; 690291347153 ; 69029134715
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Series FIG 1103
 Standards/Approvals ASME B16.3/B1.20.1|ASTM A197|cULus Listed|FM Approved|NSF/ANSI 61
 Temperature Rating -20 to 150 deg F

Features

▪ Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.
