ASC Engineered Solutions
(D) 1-1/4X1 BLK HEX BUSHING MALL

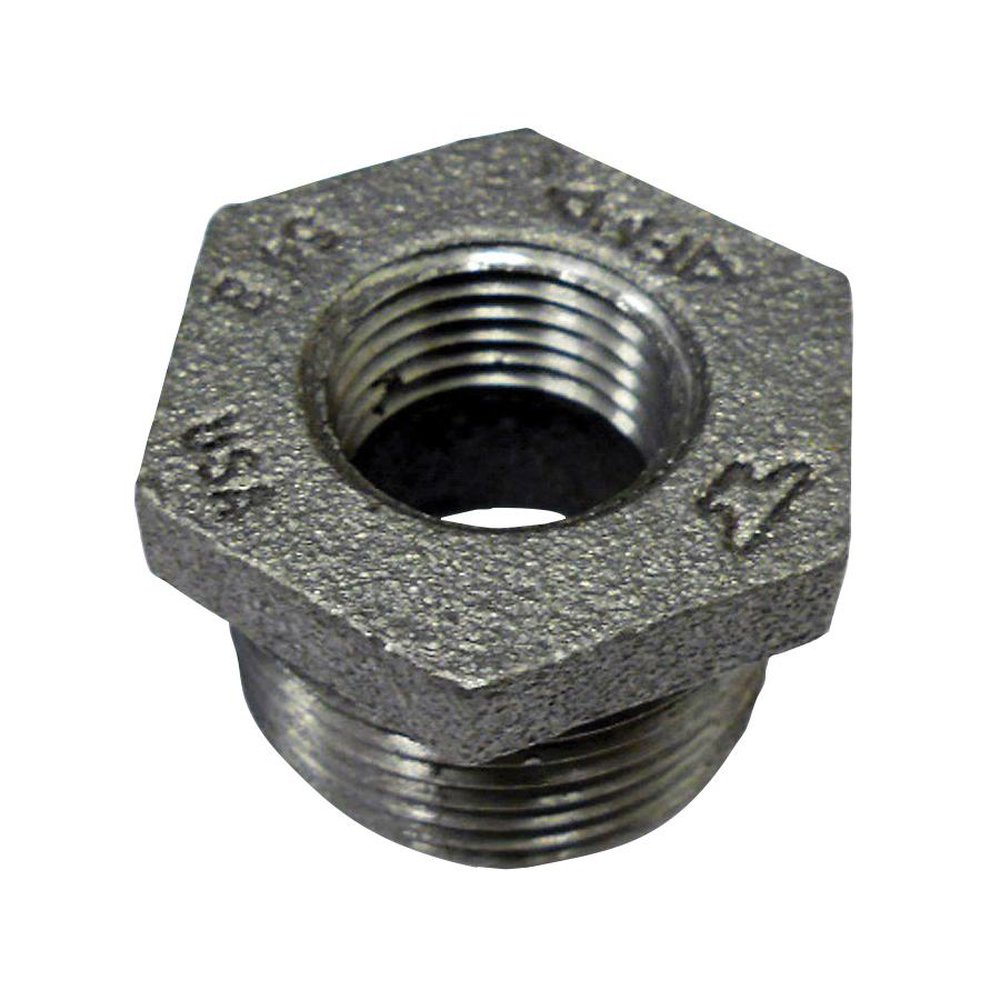

Mouse over image to zoom, click to enlarge

Description: Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 1-1/4 x 1 in Nominal, MNPT x FNPT End Style, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Manufacturer PN: 0318907003

UPC:  66246701090

Forberg Smith PN: 3021496

Invoice Description:

(D) 1-1/4X1 BLK HEX BUSHING MALL

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0318907003 FIG 383 Hex Head Pipe Bushing, 1-1/4 x 1 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black Oxide, Domestic

Price:  $9.33 / ea


Availability: 304 ea  i


Quantity  ea Add to Cart

Description

Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil Class 150/300 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 in (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
Anvil® Pipe Bushing, Hex Head, Series: FIG 383, Bushing Fitting/Connector, 1-1/4 x 1 in Nominal, MNPT x FNPT End Style, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black Oxide, -20 to 150 deg F, Domestic

Specifications

 Brand Name Anvil®
 Domestic or Import Domestic
 End Style MNPT x FNPT
 Finish Black Oxide
 Fitting Type Bushing
 Manufacturer Part Number 0318907003
 Material Malleable Iron
 Nominal Size 1-1/4 x 1 in
 Pressure Rating 300 psi
 Series FIG 383
 Standards/Approvals ASME B16.3|cULus Listed|FM Approved|NSF/ANSI 61
 Temperature Rating -20 to 150 deg F
 Type Hex Head

Features

▪ Malleable iron pipe fittings hold two different pipe parts together and direct gas and liquid movement.

Resources

 Product Data Sheet
