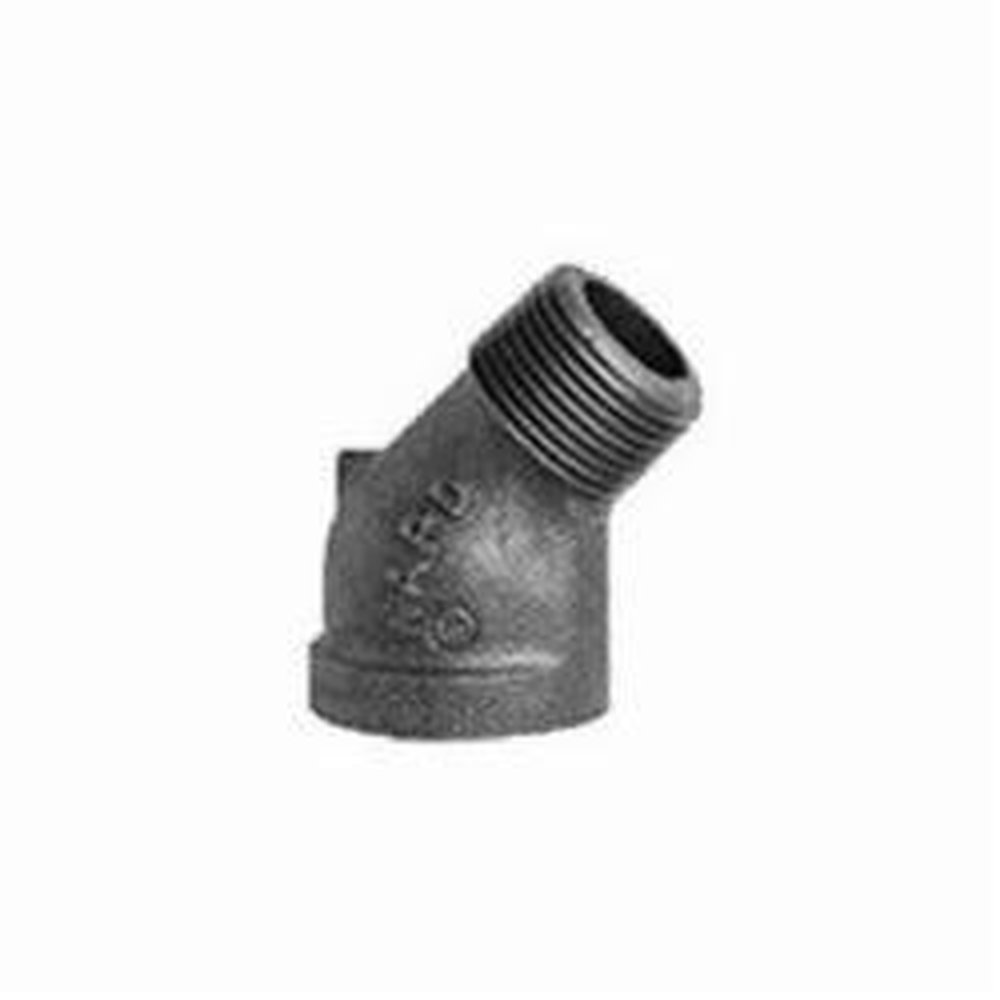

(D) 1 150 LB BLK MALL STREET 45 ELBOW

Mouse over image to zoom, click to enlarge

Description: Ward Mfg Street Elbow, 45 deg Elbow Fitting/Connector, 1 in Nominal, MNPT x FNPT End Style, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 150 deg F, Domestic/Import: Domestic

Manufacturer PN: 66246733640

UPC:  66246733640

Forberg Smith PN: 3019113

Invoice Description:

(D) 1 150 LB BLK MALL STREET 45 ELBOW


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg 0310027602 Street Elbow, 1 in Nominal, MNPT x FNPT End Style, 150 lb, Malleable Iron, Black, Domestic

Log In for Pricing and Availability




Description

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.
Ward Mfg Street Elbow, 45 deg Elbow Fitting/Connector, 1 in Nominal, MNPT x FNPT End Style, SCH 40/STD Schedule, 150 lb Pressure Class, 300 psi Pressure, Malleable Iron, Black, -20 to 150 deg F, Domestic/Import: Domestic

Specifications

 Brand Name Ward Mfg
 Domestic or Import Domestic
 End Style MNPT x FNPT
 Finish Black
 Fitting Type 45 deg Elbow
 Manufacturer Part Number 0310027602
 Material Malleable Iron
 Nominal Size 1 in
 PART NUMBER KEYWORDS 0310027602 ; 1.BMS45L ; 1BMS45L ; 662467336407 ; 66246733640
 Pressure Rating 300 psi
 Schedule Rating SCH 40/STD
 Standards/Approvals ASME B16.14/B16.4/B1.20.1|ANSI B1.20.1|FM Approved|NSF 61-G|UL/ULC Listed|WW P521
 Temperature Rating -20 to 150 deg F

Features

▪ 0.78 in male end x 0.43 in female end take out
▪ Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more
▪ Accurate form, length and straightness on threads for easy engagement
▪ Chamfered openings for fast, easy engagement and assembly
▪ Precision machining
▪ Rust-Resistant coating
▪ 1.12 in center to end
▪ 1.47 in center to male end
▪ 0.91 in dia male end port
▪ 0.58 in L internal x 0.68 in L external thread
