Weldbend
(D) 16 STD SR WELD 90 ELBOW

Mouse over image to zoom, click to enlarge

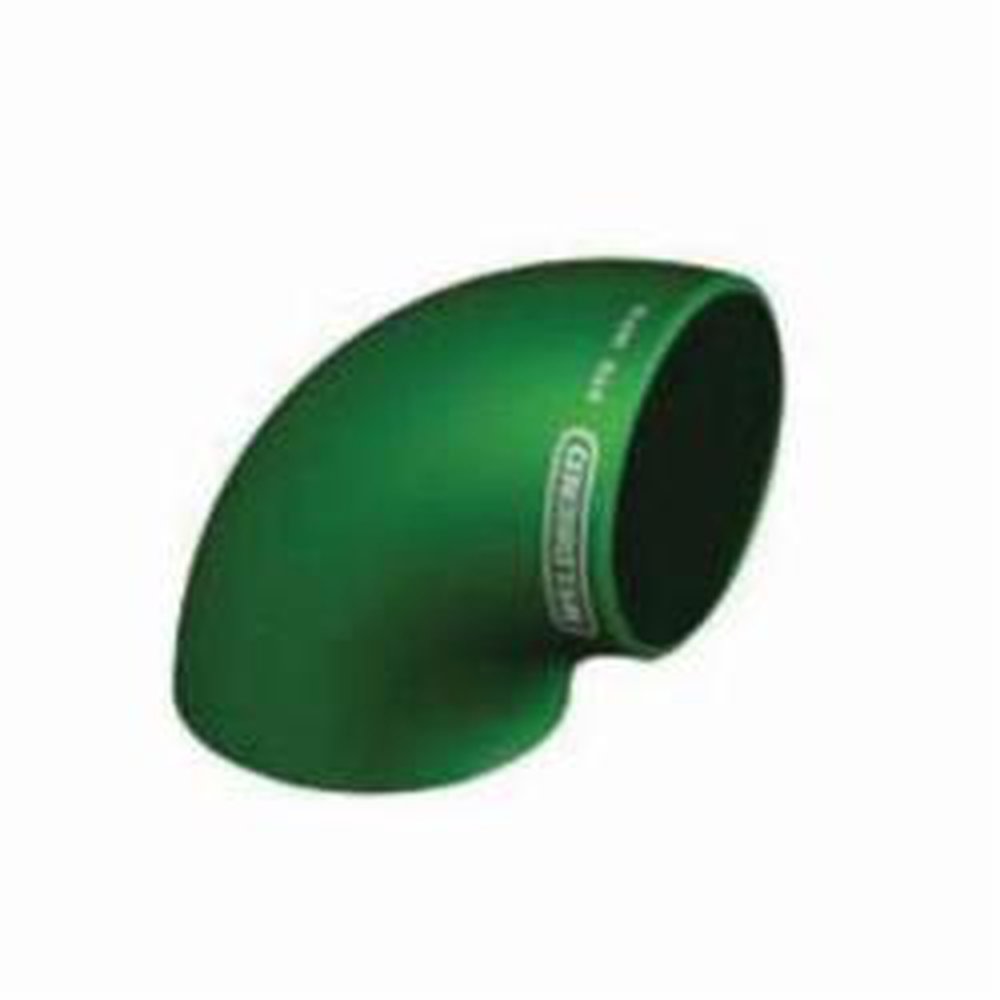

Description: Weldbend® Pipe Elbow, Short Radius, 90 deg Elbow Fitting/Connector, 16 in Nominal, Butt Welded End Style, SCH 30 Schedule, 3/8 in Thickness, 820 lb Pressure, Carbon Steel, -20 to 650 deg F, 15-1/4 in ID x 16 in OD Dimensions

Manufacturer PN: 012-160-000

Forberg Smith PN: 3051981

Invoice Description:

(D) 16 STD SR WELD 90 ELBOW


How Can We Make This Page Better?

Weldbend® 012-160-000 Short Radius Pipe Elbow, Carbon Steel, 16 in Nominal, SCH 30, Butt Welded End Style

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Weldbend® Pipe Elbow, Short Radius, 90 deg Elbow Fitting/Connector, 16 in Nominal, Butt Welded End Style, SCH 30 Schedule, 3/8 in Thickness, 820 lb Pressure, Carbon Steel, -20 to 650 deg F, 15-1/4 in ID x 16 in OD Dimensions

Specifications

 Brand Name Weldbend®
 Dimensions 15-1/4 in ID x 16 in OD
 End Style Butt Welded
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 012-160-000
 Material Carbon Steel
 Nominal Size 16 in
 PART NUMBER KEYWORDS 012-160-000 ; 012160000
 Pressure Rating 820 lb
 Schedule Rating SCH 30
 Standards/Approvals ASTM A234 Grade WPB|ASME B16.9
 Temperature Rating -20 to 650 deg F
 Type Short Radius
