Ward Manufacturing;ASC Engineered Solutions

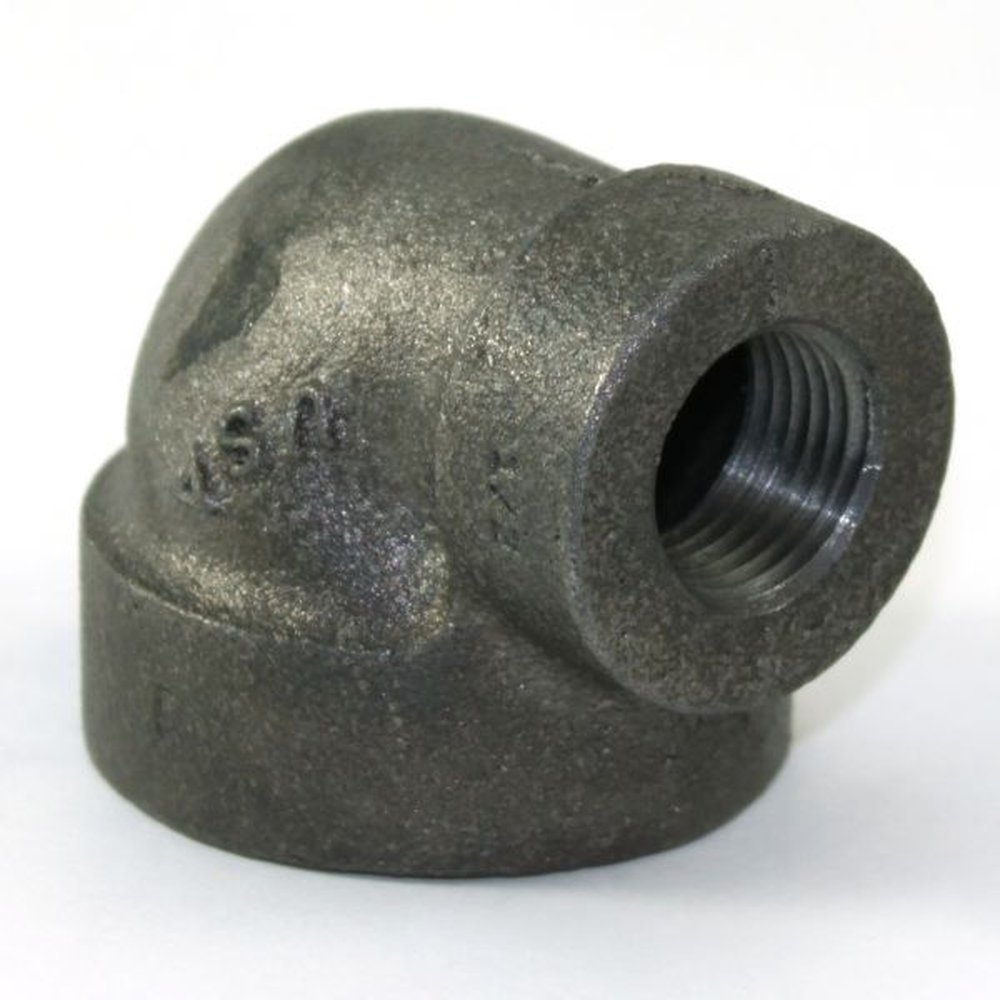

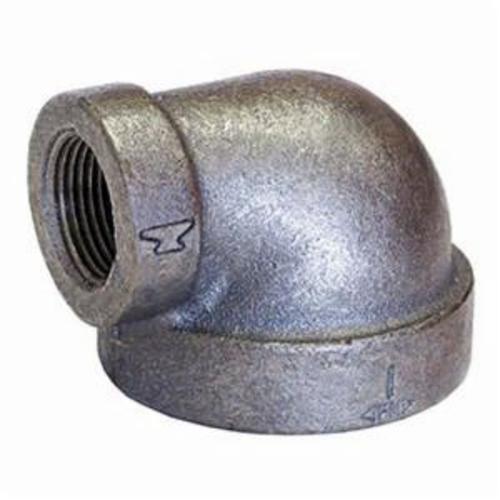

(D) 1X1/2 CI 90 ELBOW

Mouse over image to zoom, click to enlarge

  • (D) 1X1/2 CI 90 ELBOW
  • (D) 1X1/2 CI 90 ELBOW
  • (D) 1X1/2 CI 90 ELBOW

Description: Ward Mfg Pipe Reducing Elbow, Fitting/Connector Type: 90 deg Elbow, 1 x 1/2 in Nominal, FNPT, SCH 40/STD, 125 lb, 175 psi, Cast, Cast Iron, Black, -20 to 150 deg F, Domestic;Anvil® Pipe Reducing Elbow, Series: FIG 352, Fitting/Connector Type: 90 deg Elbow, 1 x 1/2 in Nominal, FNPT, SCH 40/STD, 125 lb, 175 psi, Cast, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Manufacturer PN: 0300012606

UPC:  66246709300

Forberg Smith PN: 3029934

Invoice Description:

(D) 1X1/2 CI 90 ELBOW

UNSPSC: 40142300


SPEC SHEET

How Can We Make This Page Better?

Ward Mfg 1XD.BCL Pipe Reducing Elbow, 1 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black, Domestic;Anvil® 0300012606 FIG 352 90 deg Pipe Reducing Elbow, 1 x 1/2 in Nominal, FNPT End Style, 125 lb, Cast Iron, Black Oxide, Domestic

Price:  $10.89 / ea


Availability: 119 ea  i


Quantity  ea Add to Cart

Description

Extra strong, expertly cast iron is at the heart of Ward Fittings quality. From laboratory to foundry, raw materials undergo strict metallurgical and processing controls, chemical analysis and inspection to produce closely grained, high-tensile, non-porous iron. Generations of expertise and rigorous quality control results in durable yet precise cast and malleable iron fittings and components that meet or exceed national and industry standards - and the needs of contractors around the world who believe that down to the last detail, quality counts.;Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P 471). Cast iron threaded fittings are available in both black and galvanized.
Ward Mfg Pipe Reducing Elbow, Fitting/Connector Type: 90 deg Elbow, 1 x 1/2 in Nominal, FNPT, SCH 40/STD, 125 lb, 175 psi, Cast, Cast Iron, Black, -20 to 150 deg F, Domestic;Anvil® Pipe Reducing Elbow, Series: FIG 352, Fitting/Connector Type: 90 deg Elbow, 1 x 1/2 in Nominal, FNPT, SCH 40/STD, 125 lb, 175 psi, Cast, Cast Iron, Black Oxide, -20 to 150 deg F, Domestic

Specifications

 Brand Name Ward Mfg;Anvil®
 Construction Cast
 Domestic or Import Domestic
 End Style FNPT
 Finish Black;Black Oxide
 Fitting Type 90 deg Elbow
 Manufacturer Part Number 1XD.BCL;0300012606
 Material Cast Iron
 Nominal Size 1 x 1/2 in
 Pressure Rating 175 psi
 Schedule Rating SCH 40/STD
 Series FIG 352
 Standards/Approvals ASME B16.4/B1.20.1/B16.3|ASTM A126/A153|WW P501;ASME B16.4/B1.20.1|ASTM A126|cULus Listed|FM Approved
 Temperature Rating -20 to 150 deg F

Features

▪ Wide range of products for sprinkler systems, drainage systems other installations, including fittings, connectors, unions, plugs and bushings, clamps and more;Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
▪ Accurate form, length and straightness on threads for easy engagement
▪ Chamfered openings for fast, easy engagement and assembly
▪ Precision machining
▪ Rust-Resistant coating

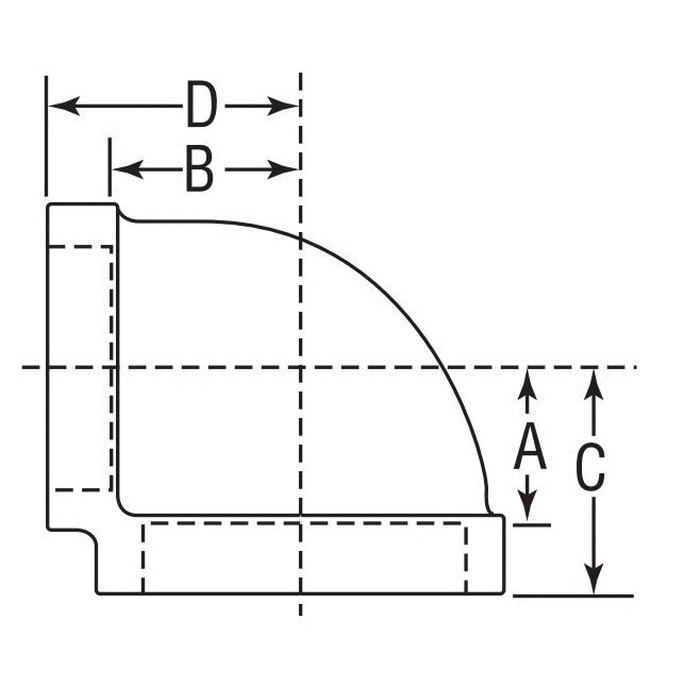

▪ 1.26 x 1.36 in center to end
▪ 0.58 x 0.43 in L thread
▪ 1/2 x 0.82 in take out
▪ 1.34 x 1.95 in OD band

Resources

 Product Data Sheet
