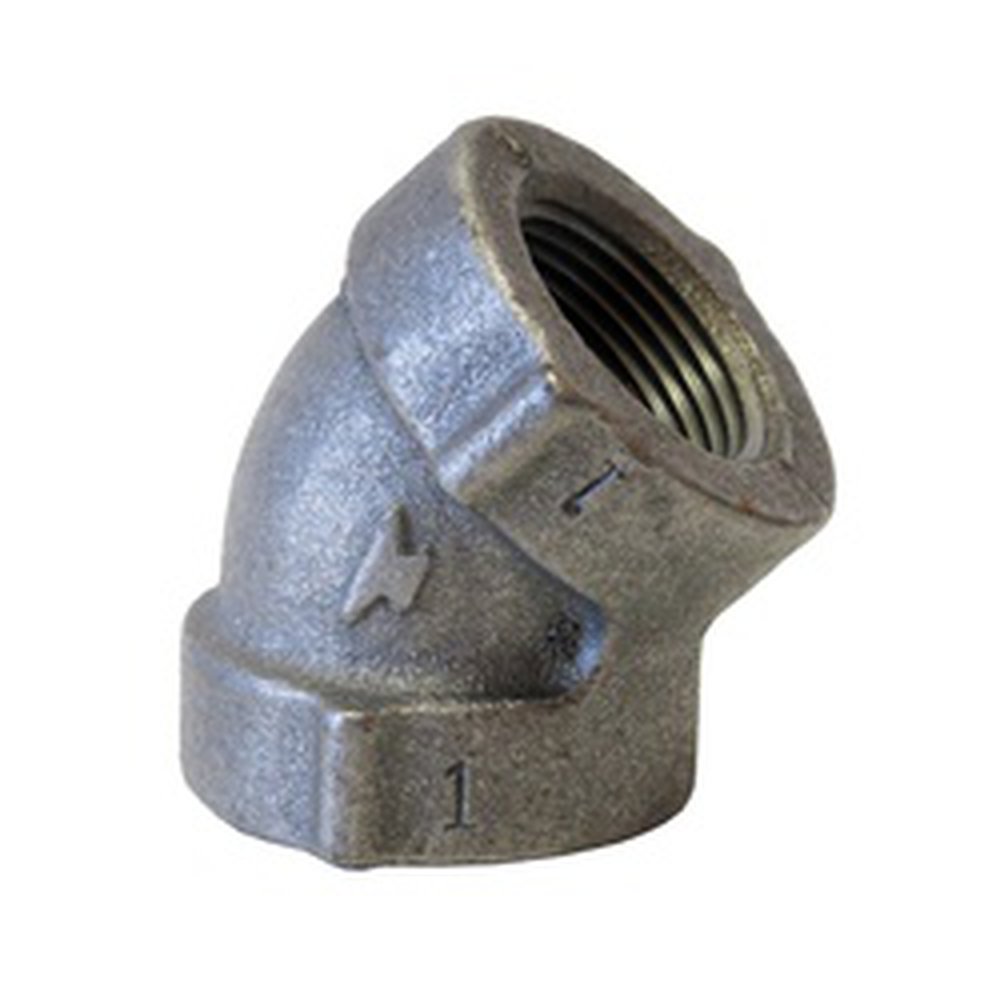

(D) 1X1/2 GALV CI 45 ELBOW 0301029849

Mouse over image to zoom, click to enlarge

Description: Anvil® Pipe Reducing Elbow, Series: FIG 356R, 45 deg Elbow Fitting/Connector, 1 x 1/2 in Nominal, Thread End Style, SCH 40/STD Schedule, 125 lb Pressure Class, 175/125 psi Pressure, Cast Method of Manufacture, Cast Iron, Galvanized, Domestic/Import: Domestic

Manufacturer PN: 0301029849

UPC:  69029101735

Forberg Smith PN: 3031577

Invoice Description:

(D) 1X1/2 GALV CI 45 ELBOW 0301029849


SPEC SHEET

How Can We Make This Page Better?

Anvil® 0301029849 FIG 356R Pipe Reducing Elbow, 1 x 1/2 in Nominal, Thread End Style, 125 lb, Cast Iron, Galvanized, Domestic

Log In for Pricing and Availability




Description

Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14). Dimensions also conform to Federal Specifications, WW-P-501 (except plugs and bushings WW-P-471). Cast iron threaded fittings are available in both black and galvanized.
Anvil® Pipe Reducing Elbow, Series: FIG 356R, 45 deg Elbow Fitting/Connector, 1 x 1/2 in Nominal, Thread End Style, SCH 40/STD Schedule, 125 lb Pressure Class, 175/125 psi Pressure, Cast Method of Manufacture, Cast Iron, Galvanized, Domestic/Import: Domestic

Specifications

 Brand Name Anvil®
 Construction Cast
 Domestic or Import Domestic
 End Style Thread
 Finish Galvanized
 Fitting Type 45 deg Elbow
 Manufacturer Part Number 0301029849
 Material Cast Iron
 Nominal Size 1 x 1/2 in
 PART NUMBER KEYWORDS 0301029849 ; 690291017353 ; 69029101735
 Pressure Rating 175/125 psi
 Schedule Rating SCH 40/STD
 Series FIG 356R
 Standards/Approvals ASTM A126|ASME B16.4/B1.20.1|cULus Listed|FM Approved

Features

▪ Anvil standard and extra heavy cast iron threaded fittings are manufactured in accordance with ASME-B16.4 (except plugs and bushings, ASME B16.14).
▪ 175 psi at -20 to 150 deg F/125 psi at 350 deg F
